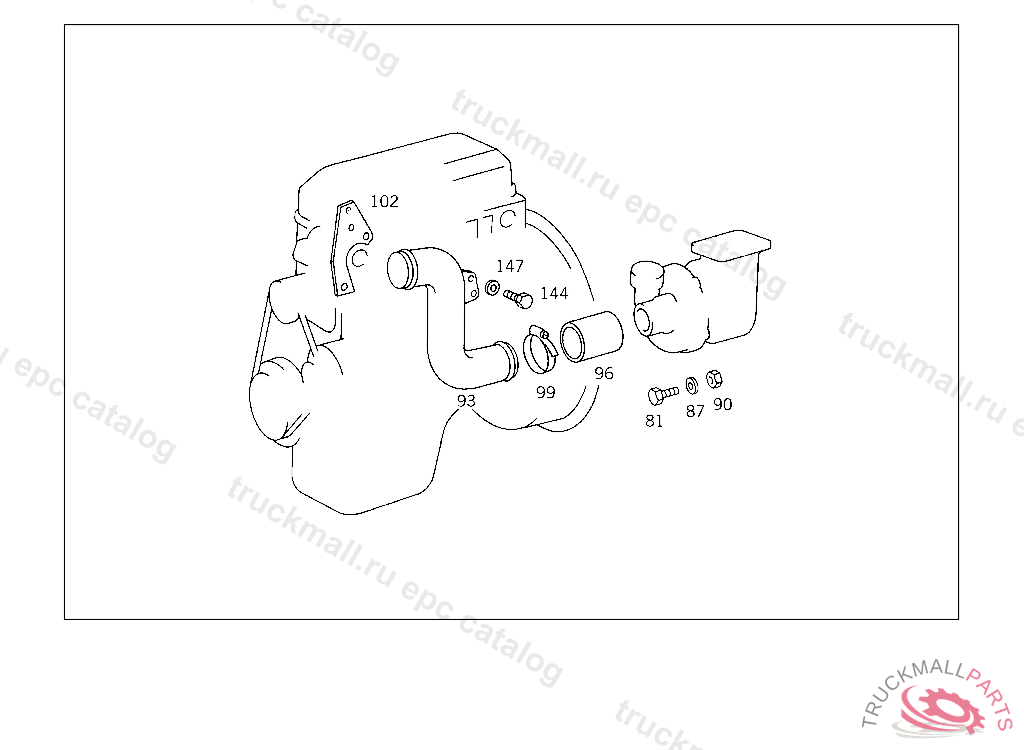

Поз.
Артикул
Описание
81
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
81
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
81
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
81
HEX. HEAD. SCREW , Replaced By: N000931008221
81
SCREW , Replaced By: N304017008027
87
WASHER , Replaced By: N000125008443
87
WASHER EXHAUST MUFFLER TO STRAP
90
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
93
ELBOW (CHARGE AIR PIPE)
93
ELBOW
96
SLEEVE
96
SLEEVE , UP TO ENGINE 328004 YEAR OF MANUFACTURE 1994
99
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
99
LOOM TIE , Replaced By: A0069976090
99
CLAMP , Replaced By: A0069972790
99
CLAMP , Replaced By: A0069974490
99
LOOM TIE LINE MOUNTING
102
BRACKET
102
BRACKET
144
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
144
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
147
WASHER EXHAUST MUFFLER TO STRAP
147
WASHER , Replaced By: N000125008443
999
SEAL RING , NOT USED
999
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
999
LOOM TIE , Replaced By: N000000000668
999
AIR INTAKE PIPE
999
HOSE (MOLDED HOSE),AIR INTAKE
999
INTAKE PIPE FROM TURBOCHARGER TO INTAKE PIPE
999
HOSE CONNECTING HOSE OF BREATHER LINES, FROM ENGINE 255338 YEAR OF MANUFACTURE 1992
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 264400/92, Replaced By: A3660901441
999
INTAKE PIPE
999
SUSPENSION EYE
999
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
999
CLAMP25-40X13 MM
999
CLAMP HOSE TO RETARDER 60-80X13 MM
999
CLAMP , Replaced By: A0059972990
999
SCREW , Replaced By: N304017008018
999
SCREW SUPPORT TO FENDER
999
CLAMP , Replaced By: N000000000673
999
CLAMP , Replaced By: N000000000675
999
CLAMP , Replaced By: A0069970490
