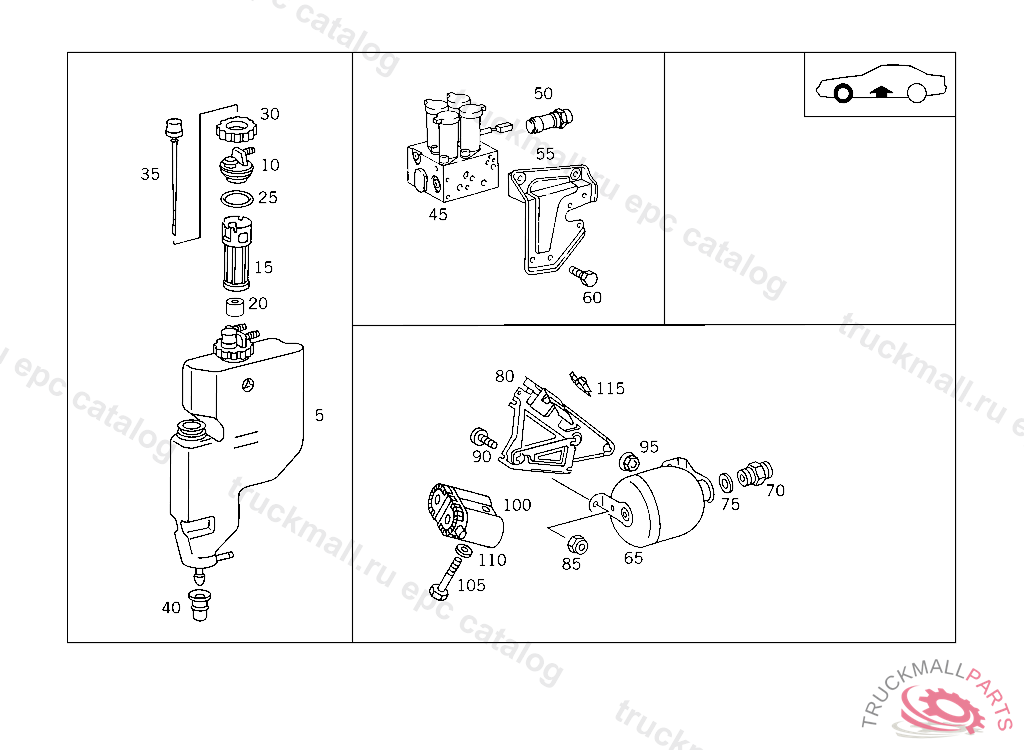

Поз.
Артикул
Описание
5
RESERVOIR SELF-LEVELLING DEVICE OIL RESERVOIR, F 125158 ALSO INSTALLED ON WITH CODE 806
10
COVER SELF-LEVELLING DEVICE OIL RESERVOIR
15
FILTER
20
SPACER
25
SEAL RING
30
NUT
35
HOUSING OIL DIPSTICK
40
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
45
VALVE SELF-LEVELLING DEVICE CONTROL VALVE, F 125158 ALSO INSTALLED ON WITH CODE 806
50
VALVE , F 125158 ALSO INSTALLED ON WITH CODE 806
55
BRACKET , F 125158 ALSO INSTALLED ON WITH CODE 806
60
SCREW COVER PLATE TO COVER PLATE M 6 X 10
65
AIR CELL (SPRING LOAD ACCUMULATOR)
70
FITTING WATER SEPARATOR
75
SEAL RINGTO 000 553 03 05,000 553 18 05,
80
BRACKET LEFT FRONT DAMPING VALVE
80
BRACKET RIGHT FRONT DAMPING VALVE
85
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
85
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
90
SCREW COVER TO SPACER RING
95
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
95
NUT , Replaced By: N913023006001
100
VALVE (DAMPING VALVE),FRONT, F 125158 ALSO INSTALLED ON WITH CODE 806
105
SCREW VALVE TO BRACKET M 8X55
105
SCREW , Replaced By: N304017008043
110
WASHER , Replaced By: N000125008443
110
WASHER EXHAUST MUFFLER TO STRAP
115
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
