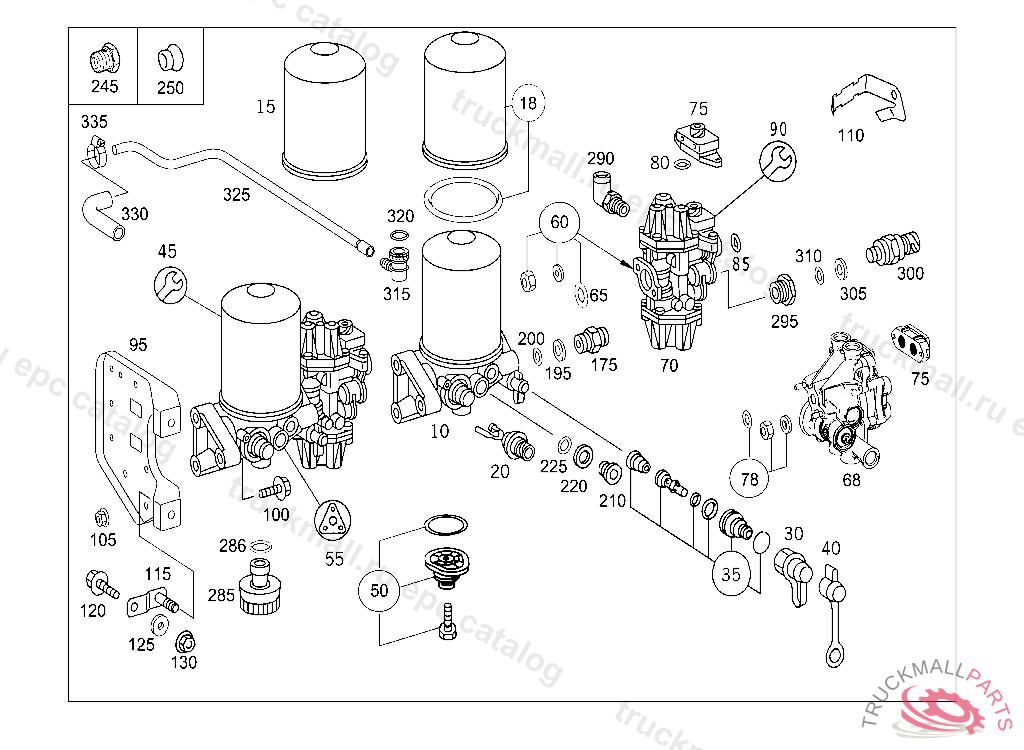

Поз.
Артикул
Описание
10
AIR DRIER WITH PRESSURE REGULATOR AND HEATING
10
AIR DEHYDRATOR WITH PRESSURE REGULATOR AND HEATING WABCO, 6.12
15
AIR CLEANER COMPLETE TO BOSCH,KNORR
15
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
15
REPAIR KIT. AIR CLEANERTO 693 420 75 71
18
REPAIR KIT. AIR CLEANERTO 693 420 75 71
18
AIR CLEANER WITH OIL SEPARATOR KNORR
18
AIR CLEANER WITH OIL SEPARATOR WABCO
20
HEATER PARTS KIT KNORR
30
TEST CONNECTIONWABCO
40
BOOT ON AIR DRIER
40
PLUG
45
REPAIR KIT AIR DEHYDRATOR WABCO
45
REPAIR KITTO 695 430 15 15
60
DS PROTECTION VALVE FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
60
SEAL RING FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
65
SEAL RINGTO 693 420 73 71
70
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO, FOR COMPONENT PARTS SEE SPARE PARTS LIST
75
75
PRESSURE SENSOR AT FOUR-CIRCUIT PROTECTIVE VALVE
80
SEAL RING SENDER UNIT WABCO
85
SEAL RING CHECK VALVE WABCO
90
REPAIR KIT CHECK VALVE AT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
95
BRACKET AIR DEHYDRATOR
100
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
100
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
105
NUT BRACKET TO SIDE MEMBER M12X1.5
110
BRACKET LINE MOUNTING
115
120
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
125
WASHER BRACKET TO SIDE MEMBER 40X15X8.5 MM
130
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
175
SCREW-IN FITTING CHECK VALVE,V 207570
210
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
220
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
225
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
245
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
245
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
250
SCREW PLUG AIR RESERVOIR
290
ELBOW FITTING LINE CONNECTION
295
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
300
PRESSURE SWITCH RELAY VALVE,CONNECTION: "21", 5.5 BAR
300
PLUG SOCKET COMPRESSOR
305
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
310
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
315
CONNECTOR PRESSURE REGULATOR,CONNECTION: "30",5 720607
320
SEAL RING BLEEDING 19X4 MM
325
330
HOSE LINE CONNECTIONS18X26X200MM
335
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
