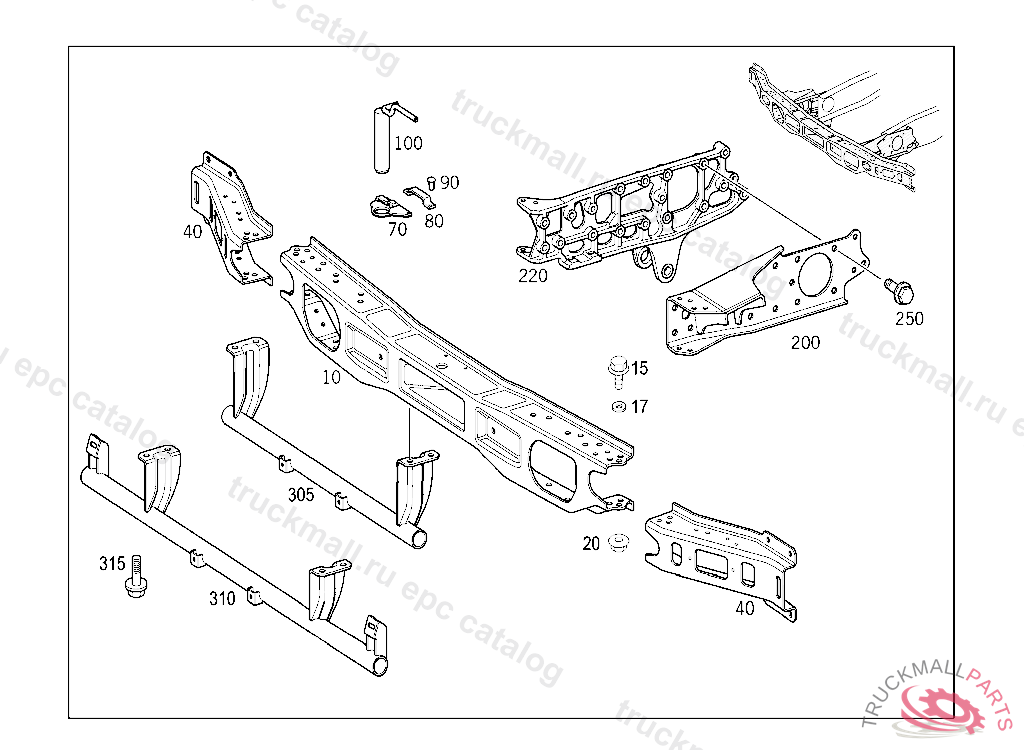

Поз.
Артикул
Описание
10
CROSS MEMBER FRONT CENTRAL, TO BE ADAPTED DURING ASSEMBLY
15
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
15
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
15
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
17
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
20
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
40
CROSS MEMBER OUTSIDE LEFT AND RIGHT NO.1
70
CLAMPING PIECE COUPLING PIN
80
CLAMP COUPLING PIN
90
BLIND RIVET. RIVET CLAMP TO CROSS MEMBER
100
COUPLING PIN FOR COUPLING MOUTH
200
200
220
220
250
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
305
310
315
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
315
SCREW. HEXAGON HEAD BOLT SHACKLE TO TORSION BAR AND TO CONSOLE M16X1.5X35
