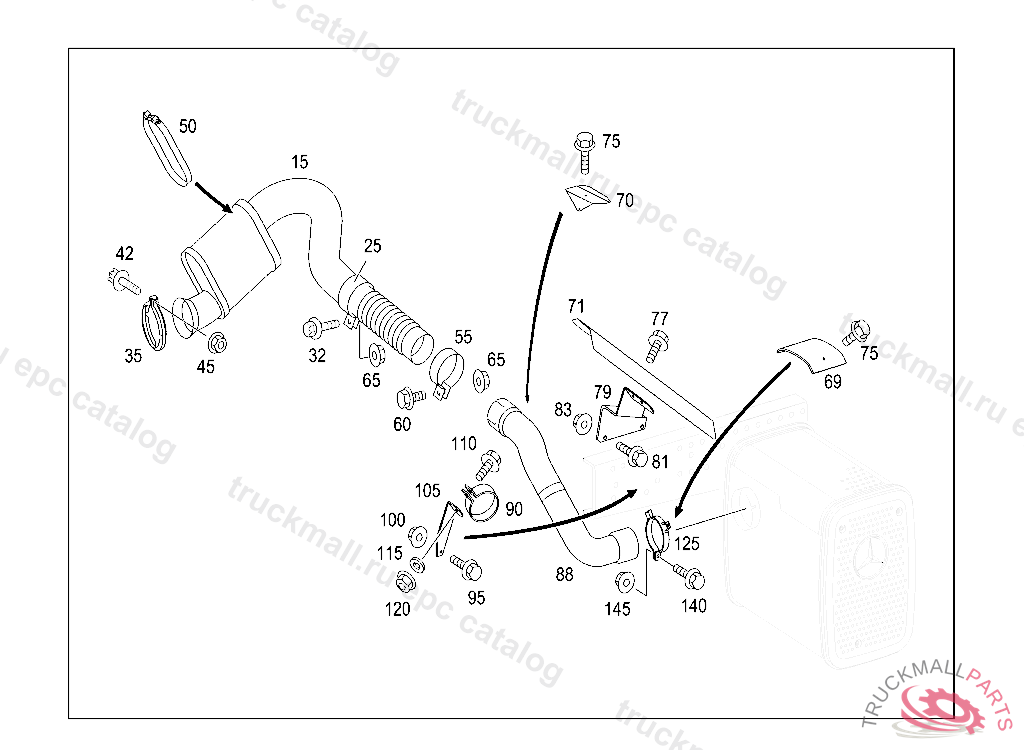

Поз.
Артикул
Описание
15
15
25
CLAMP EXHAUST PIPE TO SIDE MEMBER
32
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
35
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
42
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
45
NUT HORN TO BRACKET M8
50
55
CLAMP EXHAUST PIPE
60
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
69
PROTECTIVE PLATE FRONT EXHAUST PIPE
88
88
90
CLAMP EXHAUST PIPE TO SIDE MEMBER
95
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
100
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
105
110
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
110
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
115
WASHER BRACKET TO SIDE MEMBER,5 703114
120
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
125
CLAMP TAIL PIPE TO EXHAUST MUFFLER
125
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
140
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
145
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
