Поз.
Артикул
Описание

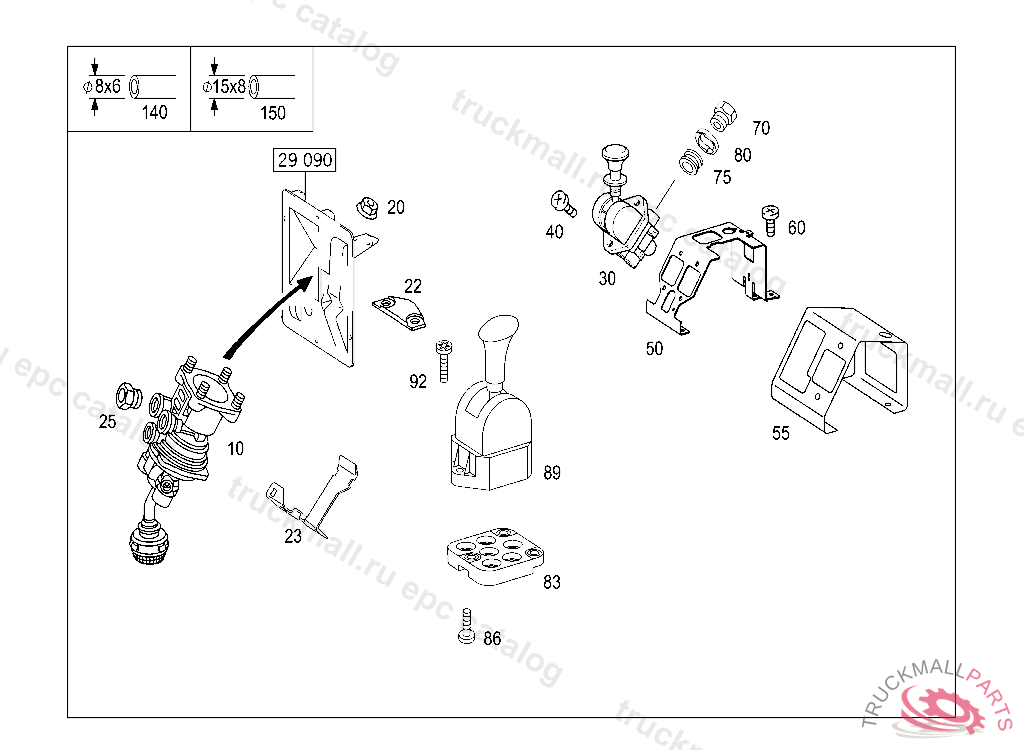

10
BRAKE VALVE SERVICE BRAKE
20
NUT HORN TO BRACKET M8
22
PLATE SERVICE BRAKE VALVE TO PEDAL BEARING BRACKET
23
BRACKET LINE MOUNTING
25
SCREW. UNION SCREW LINE CONNECTION
25
SCREW. UNION SCREW , Replaced By: A0009973734
25
SCREW. UNION SCREW LINE CONNECTION
25
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
25
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
30
VALVE PARKING BRAKE LESS TRAILER CONTROL KNORR, 14.01
30
VALVE (PARKING BRAKE VALVE) WABCO
40
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
50
55
60
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
70
SCREW. UNION SCREW , Replaced By: A0009973734
70
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
70
SCREW. UNION SCREW LINE CONNECTION
75
LOCK RING LINE CONNECTION
75
SEAL RING , Replaced By: A0009940747
80
LOCK , Replaced By: A0009945448
80
LOCK LINE CONNECTION
83
PLATE FROM CONNECTION PLATE TO PARKING BRAKE VALVE
86
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
89
BRAKE VALVE PARKING BRAKE LESS TRAILER CONTROL
89
BRAKE VALVE PARKING BRAKE WITH TRAILER CONTROL
92
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
PLASTIC PIPE AERATION, ORDER BY THE METER
150
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
