Поз.
Артикул
Описание
4

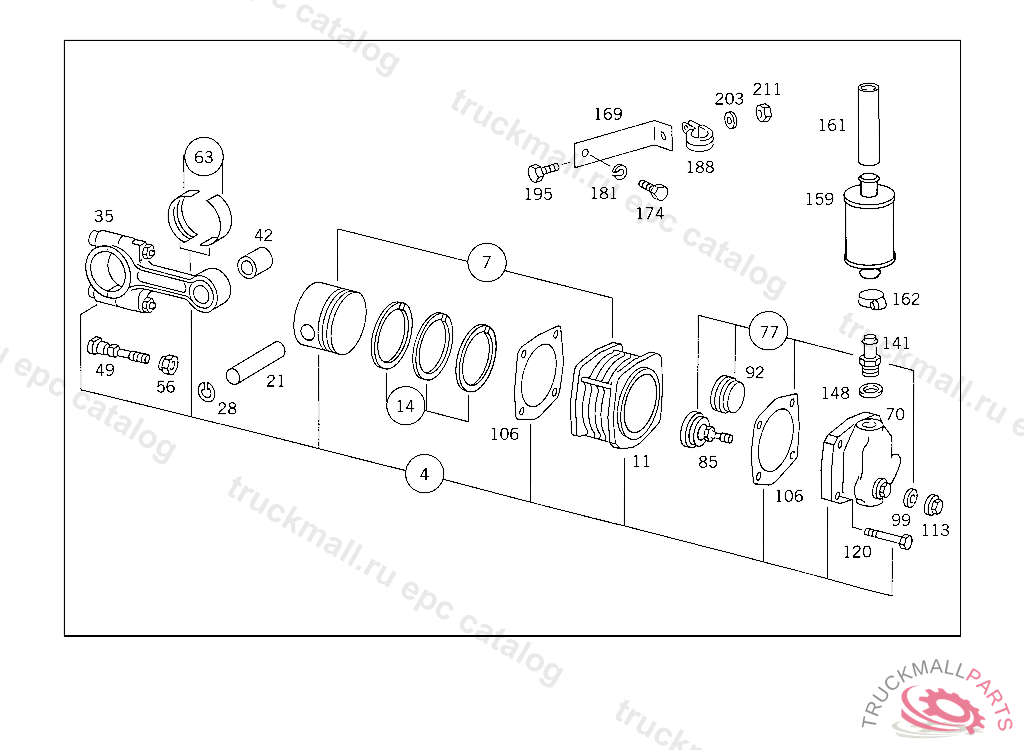

COMPRESSOR (ASSEMBLY KIT),FOUR-HOLE MOUNTING 94 MM
7
CYLINDER LINER WITH PISTON 94 MM
11
CYLINDER LINER
14
PISTON RING PARTS KIT, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
14
PISTON RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3441310011
14
PISTON RING PARTS KIT,STANDARD SIZES I AND II
21
PISTON PIN
28
LOCK RING
35
CONNECTING ROD ,082679
42
BUSHING ,082679
49
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
56
NUT
63
BEARING SHELL CONNECTING ROD BEARING SHELLS,31.90 MM STANDARD SIZE I,082679
63
BEARING SHELL PARTS KIT,REPAIR SIZE III 31.25 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
63
BEARING SHELL PARTS KIT,REPAIR SIZE I 31.75 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
63
BEARING SHELL PARTS KIT,REPAIR SIZE II 31.50 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
63
BEARING SHELL CONNECTING ROD BEARING SHELLS,32.00 MM STANDARD SIZE,082679
70
CYLINDER HEAD
77
REPAIR KIT AIR COMPRESSOR CYLINDER HEAD
99
SEAL RING
106
GASKET AS REQUIRED 0.65 MM
106
GASKET AS REQUIRED 0.90 MM
106
GASKET , Replaced By: A3661310280
106
GASKET , Replaced By: A3661310180
113
NUT PRESSURE VALVE TO CYLINDER HEAD
113
NUT PRESSURE VALVE TO CYLINDER HEAD
113
NUT PRESSURE VALVE TO CYLINDER HEAD
120
SCREW BEARING BRACKET TO CAB M 8X30
141
FITTING INTAKE MANIFOLD
148
SEAL RINGTO 376 131 74 01
161
HOSE
162
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
162
CLAMP25-40X13 MM
999
VALVE PARTS KIT
999
GASKET KIT DISC VALVE TO 003 131 63 01,004 131 05 01/19 01
999
PISTON RING PARTS KIT TO 003 141 48 01,"WABCO",013654
999
PISTON RING PARTS KIT TO 004 131 05 01,"KNORR",013654
999
GASKET , Replaced By: A0011315380
999
BUSHINGTO 376 131 74 01
999
BUSHING CRANKSHAFT REAR BEARING TO 376 131 74 01
999
CYLINDER LINER
999
BUSHING CRANKSHAFT REAR BEARING TO 004 131 01 01
999
CRANKSHAFTTO 003 131 59 01
999
GASKET , Replaced By: A0011315280
999
GASKET
999
SCREW PLUG , Replaced By: N000000000648
999
SCREW FEED LINE AND RETURN LINE
999
NUT , Replaced By: N304032008006
999
SEAL RING PNEUMATIC VALVE
999
SCREW STEERING SHAFT BEARING TO CAB
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
