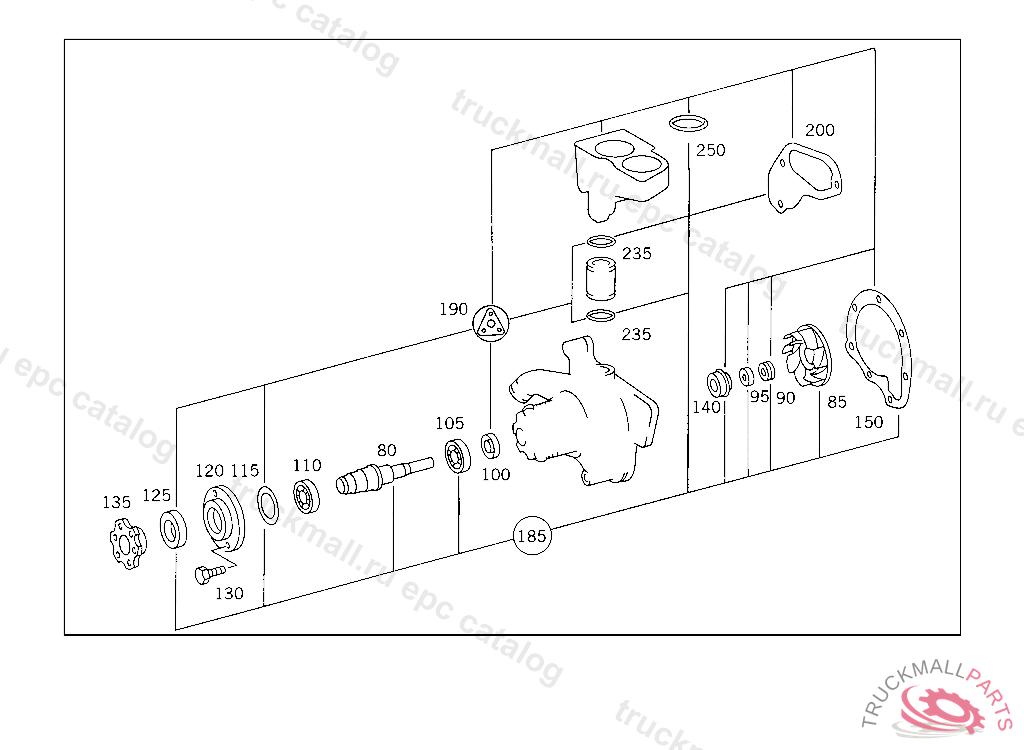

Поз.
Артикул
Описание
80
SHAFT , Replaced By: A3662010105
80
SHAFT , Replaced By: A3662010205
80
SHAFT
85
IMPELLER ,781819
90
BOOTTO 000 201 66 19,000 201 72 19
95
THRUST RINGTO 000 201 66 19/72 19
100
SEAL RING
100
SEAL RING
100
SEAL RING
105
GROOVED BALL BEARING , FROM ENGINE 937666-999999 YEAR OF MANUFACTURE 1989-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
110
GROOVED BALL BEARING , FROM ENGINE 937666-999999 YEAR OF MANUFACTURE 1989-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
115
SEAL RING WATER PUMP
120
SEAL HOLDER
120
SEAL HOLDER
125
SEAL RING
125
SEAL RING
125
SEAL RING
130
SCREW LEVER TO THROTTLE VALVE SHAFT
135
HUB
135
HUB
140
SEAL WITH THRUST RING AND BOOT
140
SEAL , Replaced By: A0002019919
140
SEAL , Replaced By: A0002015719
140
SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002018019
140
SEAL , Replaced By: A0002016719
140
SEAL , Replaced By: A0002019219
140
SEAL , Replaced By: A0012011719
140
SEAL , Replaced By: A0012011819
140
SEAL , Replaced By: A0012011919
140
SEAL , Replaced By: A0012011919
140
SEAL , Replaced By: A0012012619
150
GASKET , Replaced By: A3642010280
150
GASKET WATER PUMP TO CYLINDER CRANKCASE
185
IMPELLER , Replaced By: A3662000804
185
IMPELLER , Replaced By: A3762000204
185
IMPELLER , Replaced By: A3662000604
190
GASKET KIT , Replaced By: A3762000301
200
GASKET THERMOSTAT HOUSING TO CYLINDER HEAD
200
GASKET , Replaced By: A3662030280
235
SEAL RING
250
SEAL RING AT WATER PUMP
250
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
250
SEAL RING , Replaced By: A0249972848
