Поз.
Артикул
Описание

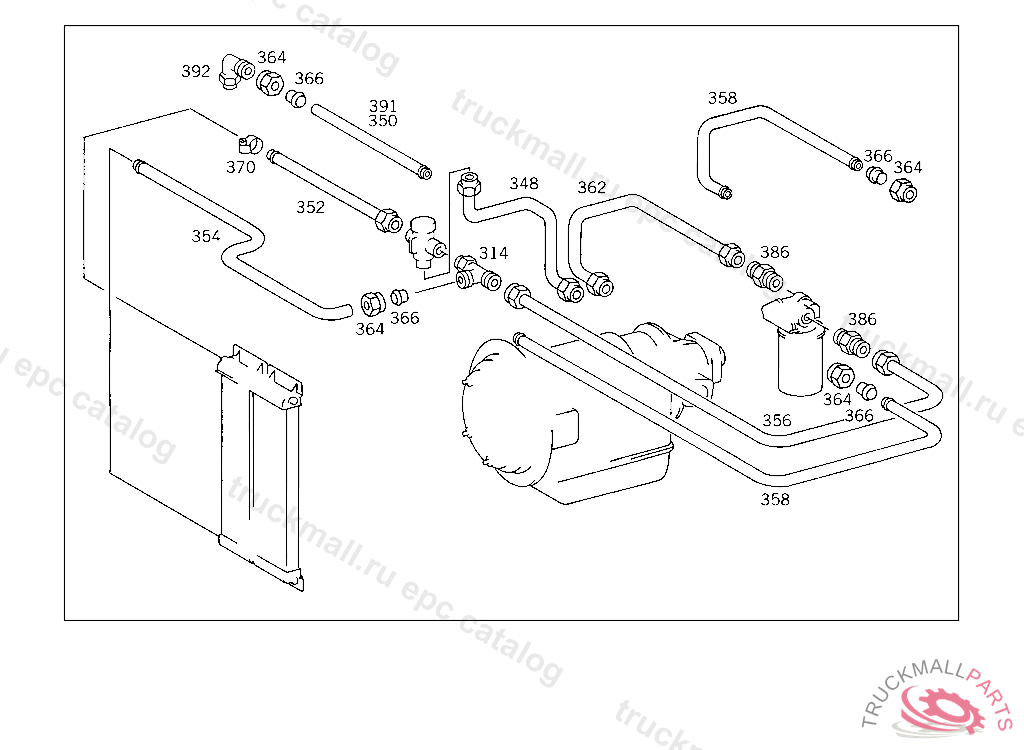

314
FITTING OIL TEMPERATURE REGULATOR
314
FITTING BETWEEN THE LINES
314
T-FITTING OIL LINE TO TRANSMISSION
348
LINE FROM TRANSMISSION TO THERMOSTAT,5 360280
348
PIPE FROM TRANSMISSION TO THERMOSTAT,5 360280
350
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,FEED,5 360280
350
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,FEED
350
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,FEED,5 501368
352
LINE FROM HOSE TO OIL TEMPERATURE REGULATOR ,FEED
352
LINE FROM HOSE TO OIL TEMPERATURE REGULATOR ,FEED
354
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,RETURN,5 3602805 501368
354
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,RETURN,5 501369
354
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,RETURN,5 360280
354
LINE FROM HOSE TO OIL TEMPERATURE REGULATOR ,RETURN
354
LINE FROM HOSE TO OIL TEMPERATURE REGULATOR ,RETURN
356
LINE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER,5 360280
358
PIPE FROM OIL FILTER TO TRANSMISSION,5 360279
358
PIPE FROM OIL FILTER TO TRANSMISSION
358
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
358
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER,5 360280
358
PIPE FROM OIL FILTER TO TRANSMISSION
362
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
362
LINE , Replaced By: A0004291601
364
UNION NUT LINE CONNECTION, Replaced By: N000000006243
364
NUT LINE CONNECTION
366
GLAND , Replaced By: A0019901267
370
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
370
CLAMP , Replaced By: N000000000667
370
CLAMP25-40X13 MM
370
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
386
FITTING OIL FILTER
386
FITTING OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
391
PIPE FROM HOSE TO OIL TEMPERATURE REGULATOR ,FEED,5 501369
392
FITTING SUCTION LINE TO OIL PUMP
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
NUT
999
SECURING CLIP. CIRCLIP
999
BALL SOCKET ROD TO BALL PIVOT
999
CONNECTION FITTING , Replaced By: A0049971772
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
PIPE ELBOW , Replaced By: A6555010756
999
PIPE ELBOW , Replaced By: A6205010556
999
HOSE HEATING PIPE TO RADIATOR
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
LINE HEATING AND BREATHING
999
LINE , Replaced By: A0005516156
999
PIPE , Replaced By: A6172704996
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
RADIATOR
999
BRACKET OIL COOLER TO RADIATOR
999
PIPE , Replaced By: A6152701496
999
PIPE , Replaced By: A6152701396
999
LINE RETURN, OIL COOLER
999
LINE FEED, OIL COOLER
999
BALL SOCKET ROD TO BALL PIVOT
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
PANELLING CIRCULATING AIR
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL FILTER
999
BRACKET CABLE HARNESS TO LEAK LINE
999
CONNECTOR , Replaced By: A6205010223
999
SUPPORT RADIATOR MOUNTING,4 428845
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
BRACKET OIL LINE TO CRANKCASE
999
BRACKET OIL LINES TO ENGINE
999
BRACKET , Replaced By: A3832710140
999
HOSE , Replaced By: A3819970682
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
LINE , Replaced By: A3815001472
999
BRACKET , Replaced By: A3604293140
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3812700241
999
FILTER OIL FILTER
999
CLAMP FAN SHROUD TO FAN RING
999
BOOT FAN SHROUD TO FAN RING
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
FITTING , Replaced By: A0029906171
999
SCREW PLUG , Replaced By: N007604014101
999
RADIATOR OIL, NOT USED
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
CLAMP , Replaced By: N916017011000
999
RADIATOR ,4 706542
999
LINE , Replaced By: A0005516456
