Поз.
Артикул
Описание

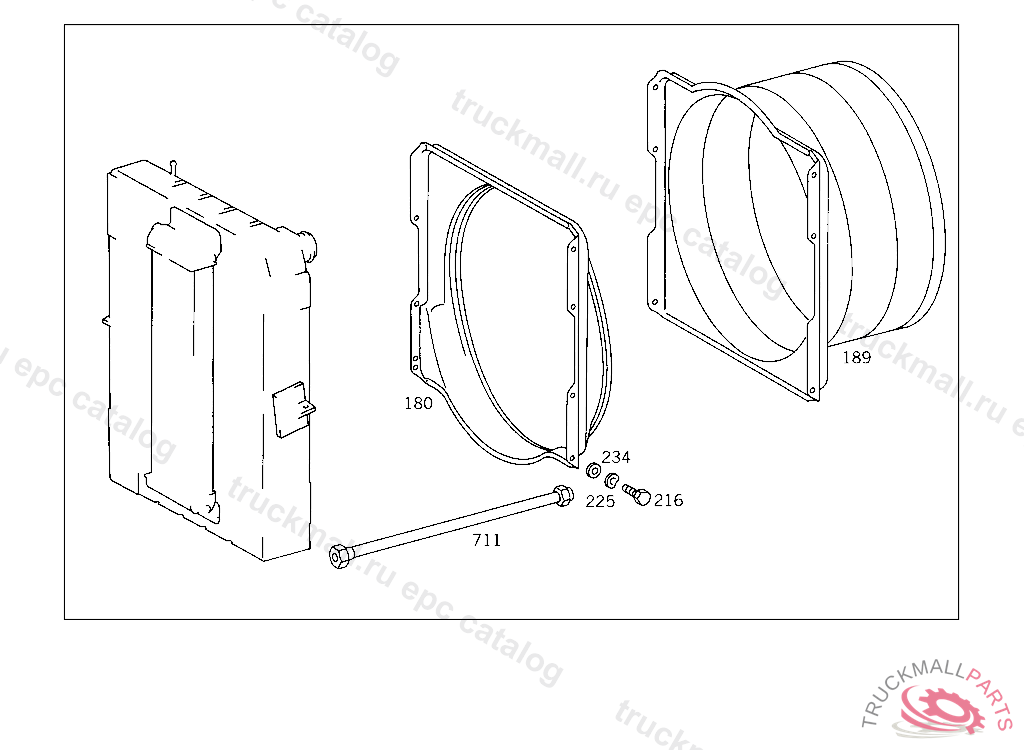

180
FAN SHROUD RADIATOR
180
FAN SHROUD RADIATOR
180
AIR BAFFLE
180
AIR BAFFLE
189
FAN SHROUD RADIATOR
189
FAN SHROUD RADIATOR
216
SCREW , Replaced By: N304017006018
216
SCREW , Replaced By: N304017006016
216
SCREW PUMP TO BRACKET
216
SCREW COVER PLATE TO COVER PLATE M 6 X 12
225
SPRING WASHER LICENSE PLATE TO BRACKET
234
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
711
PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
999
RADIATOR
999
CLAMP , Replaced By: N916017011000
999
RADIATOR"BEHR", NOT USED
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
NUT TURNBUCKLE
999
RADIATOR , Replaced By: A3815010801
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
BRACKET RADIATOR MOUNTING,4 428844
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
CONNECTOR AT WATER PUMP
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
FLANGE ENGINE BREATHING
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
