Поз.
Артикул
Описание

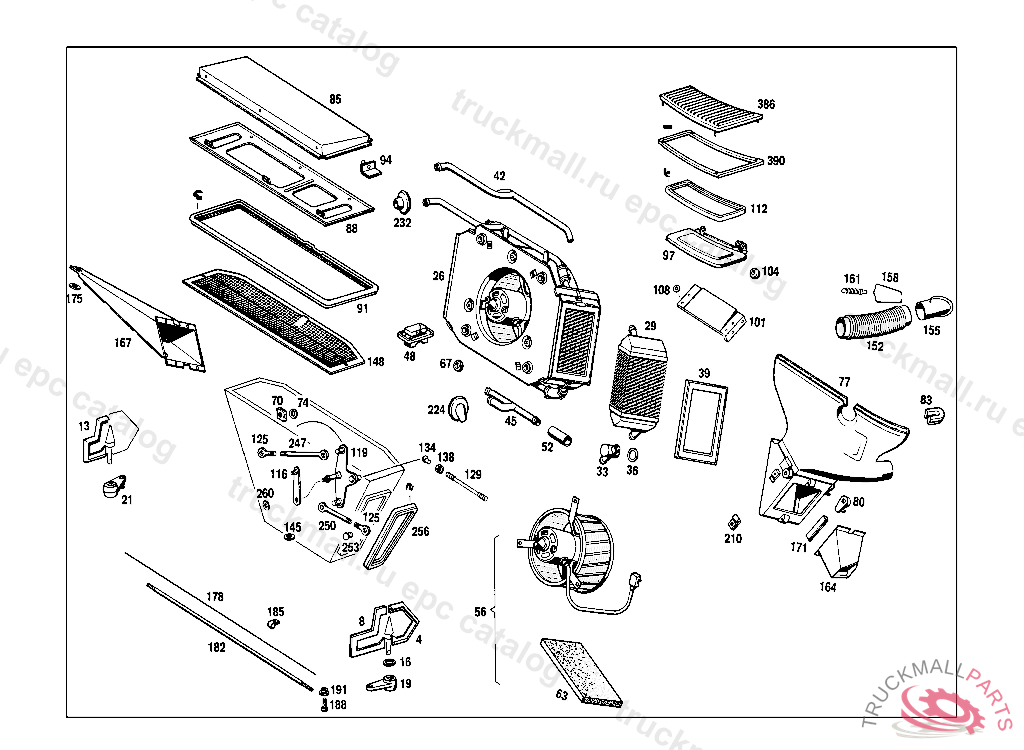

26
HEATER UNIT
29
HEAT EXCHANGER LEFT
33
CONTROL VALVE
36
SEAL OUTSIDE
36
SEAL , Replaced By: A0008355898
39
WEATHERSTRIP HEAT EXCHANGER
39
WEATHERSTRIP , Replaced By: A0008350123
42
PIPE LINE
45
PIPE LINE
48
THERMOSTAT
52
HOSE BOTTOM
56
MOTOR
63
FILTER , UP TO CHASSIS 000963
67
GROMMET FOR PASSAGE OF LINE
67
GROMMET , Replaced By: A0009978581
70
NUT RETAINER , Replaced By: A0009902291
70
NUT RETAINER , Replaced By: A0019906791
70
NUT RETAINER LICENSE PLATE TO BRACKET
74
WASHER
77
DEFROSTER NOZZLE LEFT
80
LEVER
83
MOUNTING MOSS TYPE RUBBER
85
FRAME
88
FLAP
91
SEAL
94
HINGE LEFT
97
FLAP LEFT, FROM CHASSIS 000115
101
PLATE LEFT, FROM CHASSIS 000115
104
GROMMET CAB ROOF
108
RUBBER RING EMERGENCY LANTERN TO CAB
108
SEAL RING
108
SEAL RING , Replaced By: A1159971040
112
SEAL
116
LEVER , FROM CHASSIS 000011
119
LEVER , FROM CHASSIS 000011
125
LINK
129
PULL ROD
134
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
138
NUT BALL PIVOT TO LEVER
145
SEAL RING
145
SEAL RING , Replaced By: A1159971040
145
RUBBER RING EMERGENCY LANTERN TO CAB
148
GRILLE
152
HOSE
155
NOZZLE LEFT
158
WIRE CLAMP
161
SPRING
164
NOZZLE LEFT
167
NOZZLE RIGHT
171
RUBBER SECTION ORDER BY THE METER, 111.024,025,026,027 FROM PRODUCTION START
171
RUBBER SECTION , Replaced By: A0009875070
175
WASHER
178
WIRE CABLE FRESH AIR FLAP
182
WIRE SPIRAL , ORDER BY THE METER
210
CLAMP WIRE CABLE TO DEFROSTER NOZZLE BEARING BRACKET,RIGHT, 000,001,004,010 FROM CHASSIS 114258,100,101,104,110 FROM CHASSIS 191759
224
GROMMET FEED LINE
232
GROMMET EXPANSION PLUG
247
LINK
250
LINK
253
PIN
256
SEAL LEFT
260
RUBBER RING EMERGENCY LANTERN TO CAB
260
SEAL RING
260
SEAL RING , Replaced By: A1159971040
386
SCREEN LEFT
390
SEAL
999
CLAMP PRESSURE REGULATOR
999
CLAMP , Replaced By: N000000000667
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER T-FITTING TO BRACKET
999
HOSE FRONT FEED LINE, ORDER BY THE METER FROM CHASSIS 000300
999
HOSE
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
999
HOSE TOP
999
SPRING WASHER LEVER MOUNTING
999
SPRING WASHER , Replaced By: N000137010205
999
SPRING WASHER SHIFTING CYLINDER TO YOKE
999
SPRING WASHER , NOT USED
999
NUT
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW , Replaced By: N007985004107
999
SCREW ELECTRIC CABLE TO HORN
999
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
999
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
999
SHEET METAL SCREW AT REFRIGERANT LINE,FOR REAR SPACE HEATING
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
999
LOCK PLATE
999
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
999
DISC SPRING SHAFT TO BRACKET,950252
999
TURNBUCKLE TURNBUCKLE
999
NUT , Replaced By: N304032008006
999
NUT L.H. THREAD
999
NUT TACHOGRAPH TO BRACKET
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW , Replaced By: N304017006034
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW WIRE CABLE TO BRACKET OF BEARING BRACKET
999
HEADLESS SETSCREW
999
WASHER
999
SCREW
999
SCREW
999
SPRING WASHER SHIFTING ROD TO BRACKET
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
WIRE CABLE , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1218330431
999
SCREW , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A1368310089
999
GROMMET 34 MM
999
SCREW WIRE CABLE
999
BUSHING
999
SEAL RING
999
BUSHING
999
SEAL RING , Replaced By: A1159971040
999
SCREEN RIGHT
999
VALVE , UP TO CHASSIS 000295, Replaced By: A1008350272, +001A1008300963
999
VALVE , UP TO CHASSIS 000295, Replaced By: A1008350272, +001A1008300963
999
WIRE CABLE , Replaced By: G401218330431
999
WIRE CABLE , Replaced By: G401218330431
999
WIRE CABLE , Replaced By: G401218330431
999
WIRE CABLE , Replaced By: G401218330431
999
WIRE CABLE , Replaced By: G401218330431
999
LINE RETURN
999
HEATER UNIT , FROM CHASSIS 000792
999
MOUNTING
999
NOZZLE RIGHT
999
PLATE RIGHT, FROM CHASSIS 000115
999
SEAL RIGHT
999
AIR DUCT , Replaced By: A1008310962
999
AIR DUCT , Replaced By: A1008311262
999
FLAP , Replaced By: A1008302042
999
FLAP RIGHT, FROM CHASSIS 000115
999
HINGE RIGHT
999
DEFROSTER NOZZLE RIGHT
999
PIPE LINE , UP TO CHASSIS 000295
999
NOZZLE LEFT
999
PIPE LINE FEED
999
NOZZLE RIGHT
999
PIPE LINE RETURN
999
COVER , Replaced By: A1008300252
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
RUBBER SEAL , ORDER BY THE METER UP TO CHASSIS 000791
999
LOOM TIE , Replaced By: N912002028100
999
LOOM TIE , Replaced By: N900262009000, +002N900263009000
999
LOOM TIE , Replaced By: N916026020001
999
GROMMET , Replaced By: A0009972081
999
NUT RETAINER REGULATOR AND CUT-OUT, FOR VEHICLES HAVING LOW CAB 344 ON CAB 344
999
NUT RETAINER , Replaced By: A0019906791
999
SCREW
999
WIRE SPIRAL860 MM, WITH GASOLINE ENGINE ORDER BY THE METER
999
RUBBER SECTION , Replaced By: A0009870772
999
EDGE GUARD SECTION , ORDER BY THE METER
999
FOAM PLASTICS FRONT ROOF RAIL
999
FELT60X20X2 MM, ORDER BY THE METER
999
FOAM PLASTICS , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1116375498
999
LEATHER ORDER BY THE METER, STATE COLOR NUMBER WHEN ORDERING
999
FOAM PLASTICS , Replaced By: A0009833598
999
MOTOR , Replaced By: A0008355102
999
HEAT EXCHANGER RIGHT
999
CARBON BRUSH SET
999
MOTOR , Replaced By: A0008355102
999
SEAL
999
FILTER , UP TO CHASSIS 000295
999
FAN , Replaced By: A0008355102
999
CARBON BRUSH SET , Replaced By: A0008352575
999
SEAL , Replaced By: A0008351298
999
WASHER WIPER BEARING
