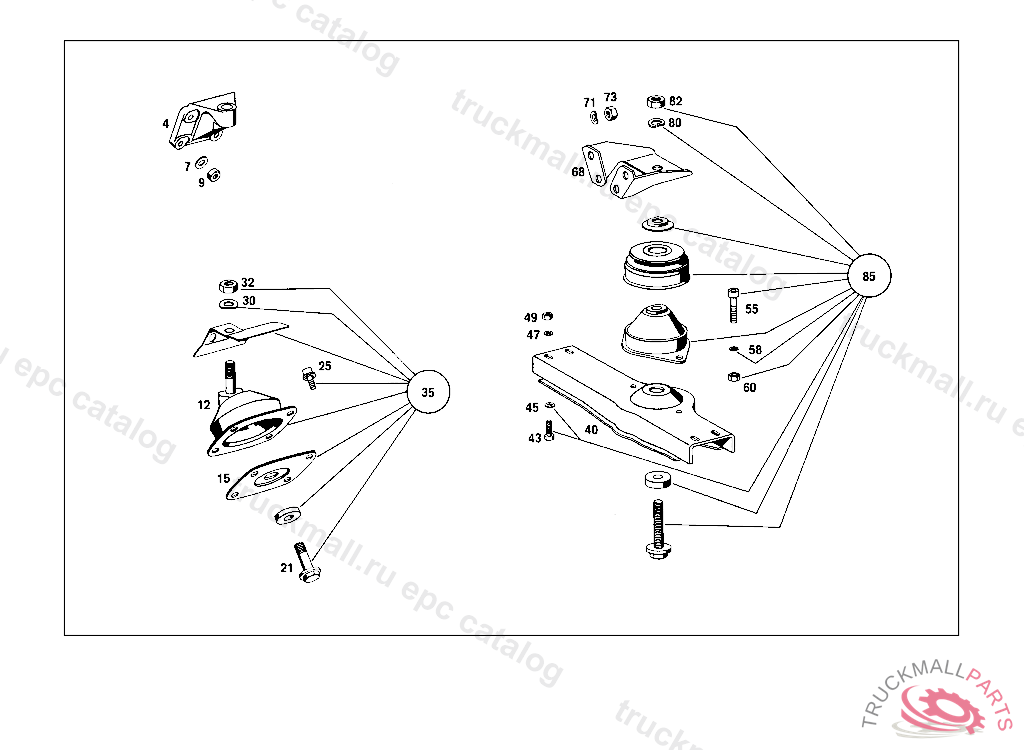

Поз.
Артикул
Описание
4
ENGINE SUPPORT
7
WASHER MOUNTING PLATE TO BODY FLOOR
9
NUT
9
NUT , Replaced By: N304032008006
12
MOUNTING , 000319 NO LONGER AVAILABLE
15
PLATE
21
SCREW
25
COMBINATION BOLT
30
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
30
SPRING WASHER CAB FLOOR
32
NUT STRAP TO SUPPORT,5 149419
35
REPAIR KIT
40
CONSOLE
43
SCREW PIPE CLAMP
43
SCREW , Replaced By: N304017008021
45
WASHER , Replaced By: N000125008443
45
WASHER EXHAUST MUFFLER TO STRAP
47
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
49
NUT , Replaced By: N304032008006
49
NUT
55
SCREW
58
LOCK WASHER TAIL LAMP TO BRACKET
60
NUT
60
NUT , Replaced By: N304032008006
68
ENGINE SUPPORT
71
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
71
SPRING WASHER , Replaced By: N000137008212
73
NUT , Replaced By: N304032008006
73
NUT
80
LOCK WASHER FITTING TO BRACKET
82
NUT
82
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
85
REPAIR KIT ENGINE REAR SUSPENSION
999
MOUNTING , 000318, Replaced By: A1002200830, +002A1002200171
999
COVERING , NO LONGER AVAILABLE INDIVIDUALLY
999
SCREW , NO LONGER AVAILABLE INDIVIDUALLY
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY
999
RUBBER MOUNTING
999
RUBBER RING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1169870941
999
NUT , Replaced By: A1219900050
999
RETAINER , NO LONGER AVAILABLE INDIVIDUALLY
999
NUT , 000,001,010 FROM CHASSIS 002061-116468, 100,101,110 FROM CHASSIS 002030-196146
999
NUT , Replaced By: N304035012002
