Поз.
Артикул
Описание
4

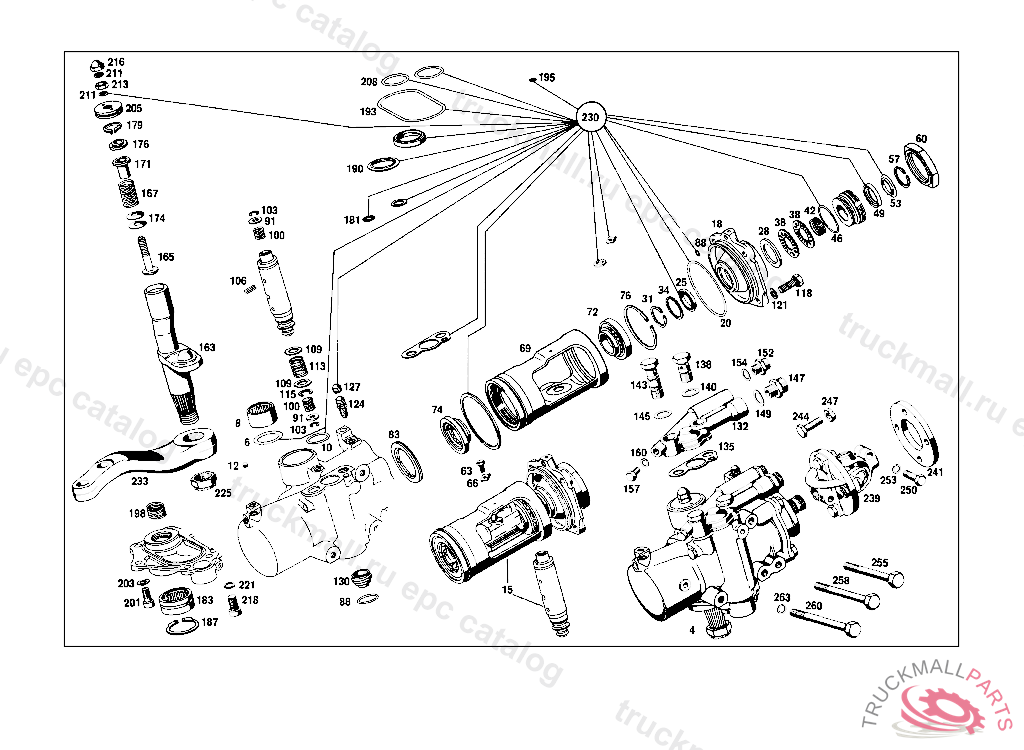

STEERING BOX ASSEMBLY
6
SEAL RING
6
SEAL RING
8
NEEDLE BEARING
10
SEAL RING
12
BALL , NOT AVAILABLE
15
PISTON
18
STEERING BOX COVER , Replaced By: A1004602014
18
STEERING BOX COVER
20
SEAL RINGTO 388 476 71 69
20
SEAL RING , Replaced By: A0149976148
25
GASKET
28
THRUST WASHER
31
LOCK
34
THRUST WASHER
38
ROLLER BEARING
42
NEEDLE BEARING
46
SEAL RING STEERING NUT BEARING 12.4X1.78 MM
49
SEAL RING
53
SEAL RING
57
LOCK
60
NUT
63
SCREW BALL GUIDE TO PISTON
66
LOCK BALL GUIDE TO PISTON
69
PISTON
72
ANGULAR CONTACT BEARING
74
ANGULAR CONTACT BEARING
76
LOCK
83
SCREW COLLAR
88
SEAL RING
91
THRUST WASHER *** 1.0MM
100
SPRING
103
LOCK
106
CLAMPING PIN
109
WASHER
113
SPRING
115
LOCK
118
SCREW CLAMP TO EXHAUST PIPE
118
SCREW END PIECE TO EXHAUST PIPE M 10X25
121
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
124
BLEEDER VALVE OIL DRAIN
127
PROTECTIVE CAP ,5 962906
127
PROTECTIVE CAP , Replaced By: A0004217187
130
COVER
132
STEERING BOX COVER WITH NOZZLE
135
GASKET
138
FITTING RETURN
140
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
143
FITTING DELIVERY LINE
145
SEAL RING SWITCH TO CASE COVER
147
SCREW FITTING
149
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
152
SCREW FITTING
154
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
157
SCREW PLUG MEASURING CONNECTION
160
SEAL RING SCREW PLUG
163
STEERG. WORM SECTOR SHAFT
165
SCREW
167
SPRING
171
THRUST PIECE , FROM CHASSIS 000104 ALSO INSTALLED ON 000079,000082-000084,000089,000091-000093,000095-000099,000101
174
DISC SPRING
176
THRUST WASHER
179
LOCK
181
SEAL RING
181
SEAL RING
183
NEEDLE BEARING
187
LOCK TOP TO 387 460 14 09
190
SEAL RING BOX COVER
193
SEAL RING STEERING NUT BEARING 75X3 MM
195
SEAL RING
198
SPRING
201
SCREW. CAP BOLT COVER TO CASE M8X25
201
SCREW , Replaced By: N000912008202
203
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
205
NUT
208
SEAL RING
211
SEAL RINGTO 001 431 72 14
213
NUT
216
CAP NUT
218
SCREW
221
SEAL RINGTO 001 431 72 14
225
NUT DRAG LINK TO LEVER
230
REPAIR KIT
233
PITMAN ARM
239
UNIVERSAL JOINT BOTTOM
241
FLEXIBLE JOINT DISC
244
SCREW AT FRAME,5 518379
244
SCREW , Replaced By: N000933008302
247
NUT ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
250
SCREW
253
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
255
SCREW SUPPORT WITH EDDY CURRENT BRAKE TO SUPPORT
258
SCREW
260
SCREW LINE MOUNTING M 10X50
260
SCREW , Replaced By: N304014010013
263
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
COVER , 000332 001434
999
STEERING LOCK , 000928
999
STEERING LOCK , 000929 001434
999
STEERING LOCK , 000332 UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026
999
STEERING LOCK , 000929 UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026
999
STEERING LOCK , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
STEERING LOCK , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
KEY , STATE LOCK NUMBER WHEN ORDERING UP TO CHASSIS:12 000331,22 000928
999
ROLLER BEARING
999
ANGULAR CONTACT BEARING
999
SEAL RING , Replaced By: A0059976146, +001A0029970240
999
SEAL RING
999
SEAL RING , 000934 NO LONGER AVAILABLE
999
HOSE , 000572, Replaced By: A0069976982, +001A1004602424, +001A1804660551, +001A0019904301, +001N000126011502
999
LOOM TIE
999
SEAL RING
999
BEARING
999
SHIM , 12 FROM STEERING 000511, 22 FROM STEERING 000140
999
SWITCH , UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026
999
VALVE , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
VALVE , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
GASKET , Replaced By: A0059976146, +001A0029970240
999
BREATHER
999
BOOT , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026, Replaced By: A1004600396, +001A1004603109, +001A1004621296
999
GASKET , 000933, Replaced By: A0059976146, +001A0029970240
999
BOOT , UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026, Replaced By: A1004600496, +001A1004603109, +001A1004621296
999
LINE , 000075, Replaced By: A1004600924, +001A1004660665
999
BOOT , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
LINE , 000075, Replaced By: A1004601024, +001A1003203053, +001A1003273745, +001A1004661424, +001A1004660665
999
LINE , Replaced By: A1004600924, +001A1004660665
999
LINE , 000076
999
STEERING BOX COVER
999
STEERING SHAFT , UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026, Replaced By: A1004603109, +001A1004600496, +001A1004621296
999
INTERMEDIATE LEVER
999
LINE FROM STEERING TO COOLING PIPE, 000076
999
STEERING BOX ASSEMBLY
999
STEERING SHAFT TOP, UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026
999
PISTON
999
PISTON
999
STEER. COLUMN JACKET TUBE , 000201
999
STEER. COLUMN JACKET TUBE , 000201
999
STEERING SHAFT TOP, FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
STEER. COLUMN JACKET TUBE , 000202 UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026
999
STEER. COLUMN JACKET TUBE , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
THRUST PIECE , UP TO CHASSIS 000103 EXCEPT FOR 000079,000082-000084,000089,000091-000093,000095-000099,000101, Replaced By: A1004620185, +002A0009933126
999
BOOT , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026, Replaced By: A1004621296, +001A1004603109, +001A1004600396
999
PITMAN ARM
999
CONTACT PLATE , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
SEAL RING , 000692, Replaced By: A1004660260, +001A0059974445
999
SEAL RING , 000693
999
LINE , 000075
999
LINE , Replaced By: A1004601424, +001A1004601024, +001A1004660665, +001A1129950120, +001A0009978482
999
KEY , STATE LOCK NUMBER WHEN ORDERING 12 FROM CHASSIS 000332, 22 FROM CHASSIS 000929
999
CONTROL LINE *** 330 MM
999
CONTROL LINE RED, UP TO CHASSIS 001028 EXCEPT FOR 000096,001021,001024,001026
999
SPRING , FROM CHASSIS 001029 ALSO INSTALLED ON 000096,001021,001024,001026
999
THRUST WASHER 1,1 MM, AS REQUIRED
999
THRUST WASHER 1,2 MM, AS REQUIRED
999
THRUST WASHER 1,3 MM, AS REQUIRED
999
THRUST WASHER 1,4 MM, AS REQUIRED
999
THRUST WASHER 1,6 MM, AS REQUIRED
999
THRUST WASHER 1,7 MM, AS REQUIRED
999
THRUST WASHER 1,8 MM, AS REQUIRED
999
THRUST WASHER 1,9 MM, AS REQUIRED
999
THRUST WASHER 2,0 MM, TO BE ADAPTED DURING ASSEMBLY
999
COVER
999
IGNITION SWITCH
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN DRAG LINK TO LEVER
999
LOCK WASHER
999
SPRING WASHER BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE
999
WASHER BRACKET TO HEAT SHIELD
999
SCREW , UP TO CHASSIS 680031 EXCEPT FOR:500001-599999
999
SCREW
999
SCREW
999
SCREW
999
SCREW BEARING BRACKET TO TRANSMISSION,011228 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1
999
SCREW FROM BACK-UP LAMP TO REAR CROSS MEMBER
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
NUT TACHOGRAPH TO BRACKET
999
NUT CYLINDER TO BRACKET TO0002902112
999
NUT
999
SEAL RING LINE CONNECTION
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SCREW ELECTRIC CABLE TO HORN
999
WASHER
999
SPLIT RING SEE GROUP 72, 012 UP TO CHASSIS 058443 EXCEPT FOR, SEE FOOTNOTE 1, 014 UP TO CHASSIS 045293 EXCEPT FOR, SEE FOOTNOTE 2
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
NUT BATTERY MOUNTING
999
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER
999
CLAMP , Replaced By: A0069970590
