Поз.
Артикул
Описание

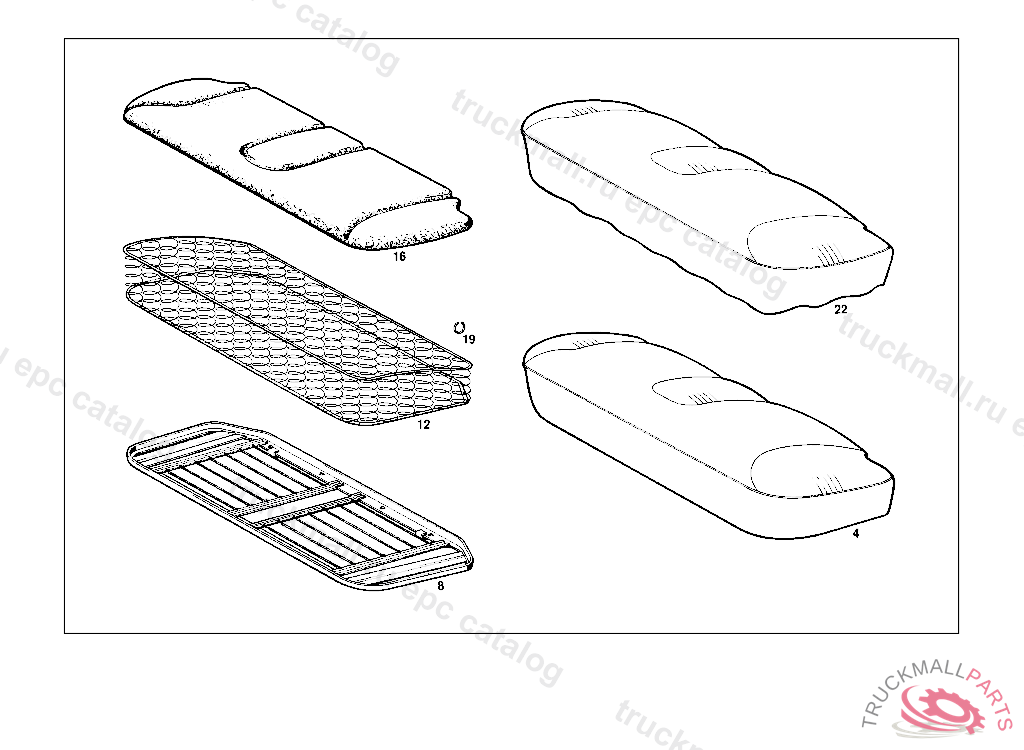

8
CUSHION FRAME
12
SPRING CORE LEATHER
19
CLIP COVER TO PAD
999
SCREW SPRING STOP
999
SCREW , Replaced By: N304017006020
999
SCREW DISTRIBUTOR TO CAB
999
NUT BALL PIVOT TO LEVER
999
CAP NUT SWITCH TO CAB FRONT PANEL
999
SCREW LICENSE PLATE TO BRACKET
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
CLIP BLOWER COVERING
999
CLIP COVER TO REAR SEAT BENCH BACKREST FRAME, 010 UP TO CHASSIS 068345, 110 UP TO CHASSIS 105977
999
REAR SEAT CUSHION , Replaced By: A1009200720
999
SPRING CORE , Replaced By: A1009200440
999
COVER , Replaced By: A1009201646
999
BACKREST FRAME , Replaced By: A1009201232
999
BACKREST LEATHER, STATE COLOR NUMBER WHEN ORDERRING001557
999
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 001251
999
BACKREST FRAME ,001557
999
BACKREST LEATHER, STATE COLOR NUMBER WHEN ORDERRING001558
999
BACKREST FRAME , EXHAUST STOCK OF OLD PARTS, FROM CHASSIS 001558-002174 EXCEPT FOR 002169,002172,002173, Replaced By: A1009201732
999
COVER , STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS 001250
999
BACKREST FRAME
999
COVER LEATHER, STATE COLOR NUMBER WHEN ORDERRING001557
999
COVER , STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 001251
999
COVER LEATHER, STATE COLOR NUMBER WHEN ORDERRING001558
999
PAD , Replaced By: A1009241114
999
PAD , VERSI0N/1/3/7 UP TO CHASSIS000792
999
PAD
999
PAD , Replaced By: A1009242716
999
PAD , Replaced By: A1009242816
999
PAD ,001558
999
INSERT , Replaced By: A1009244517
999
INSERT , Replaced By: A1009244617
999
PAD OUTSIDE LEFT
999
PAD OUTSIDE RIGHT
999
INSERT LEFT
999
INSERT RIGHT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
NUT , Replaced By: N304035008001
