Mercedes N910105008005 - БОЛТ М8

SL 400 231.465

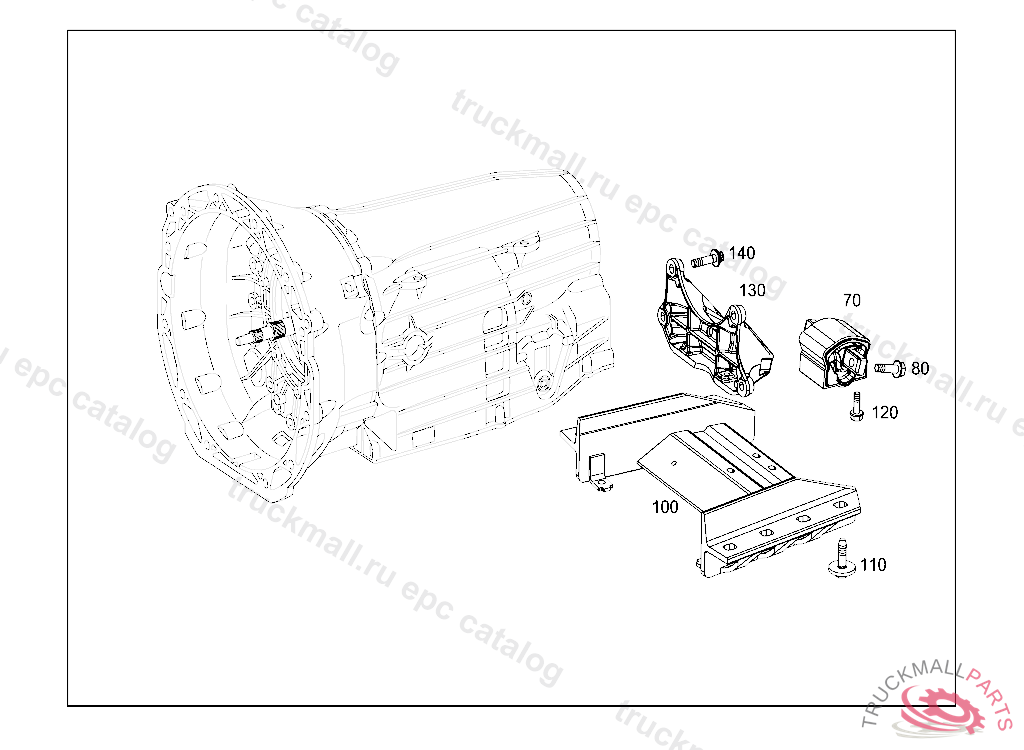

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
70
A2122400818
RUBBER BUSHING REAR, F 78951620111003
80
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
100
A2312400802
ENGINE MOUNT REAR
110
A0009908911
HEX. HD. BOLT W FLANGE ENGINE REAR SUPPORT TO FRAME M10X38
110
A0009906711
HEXAGON HEAD BOLT ENGINE REAR SUPPORT TO FRAME M10X38, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009908911
120
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
130
A2112420340
BRACKET AT TRANSMISSION
140
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
