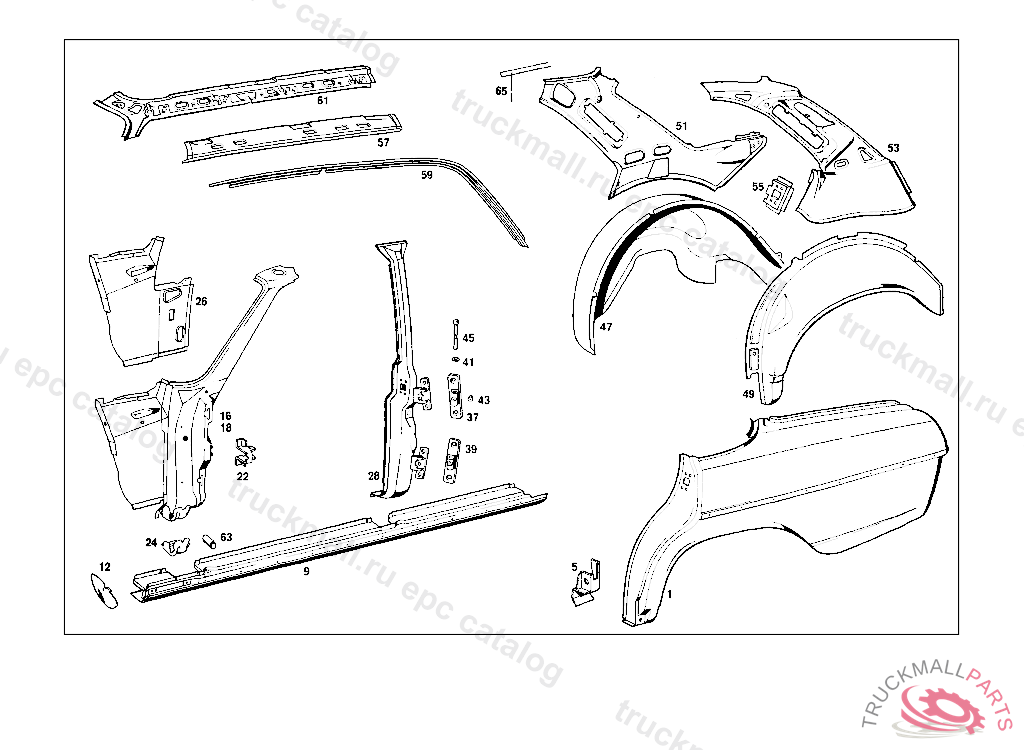

Поз.
Артикул
Описание
1
REAR FENDER LEFT
5
CONSOLE LEFT
9
SIDE MEMBER LEFT
12
COVERING FRONT LEFT
18
PILLAR LEFT, FROM CHASSIS: 015 200001 100,102,103,110,112 400001 115 200001 005,017,105,107,108,117,119 000001
22
MOUNTING
24
CONSOLE LEFT
26
FRONT PANEL PILLAR BOTTOM LEFT
28
PILLAR LEFT, FROM CHASSIS: 015 200001 100,102,103,110,112 400001 115 200001 005,017,105,107,108,117,119 000001
37
HINGE TOP LEFT, FROM CHASSIS: 000,002,010 083099 015 096926 100,102,103,110,112 211778 115 104112 005,017,105,107,108,117,119 000001
39
HINGE BOTTOM LEFT, FROM CHASSIS: 000,002,010 083099 015 096926 100,102,103,110,112 211778 115 104112 005,017,105,107,108,117,119 000001
41
WASHER
43
GREASE NIPPLE
45
PIN
47
WHEELHOUSE
49
WHEELHOUSE REAR OUTSIDE LEFT
51
PILLAR INSIDE LEFT
53
PILLAR OUTSIDE LEFT
55
BRACKET
57
STIFFENING LEFT
59
STIFFENING LEFT
61
STIFFENING LEFT
63
SEAT
65
ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER
999
HINGE BOTTOM RIGHT, FROM CHASSIS: 000,002,010 083099 015 096926 100,102,103,110,112 211778 115 104112 005,017,105,107,108,117,119 000001
999
HINGE TOP RIGHT, FROM CHASSIS: 000,002,010 083099 015 096926 100,102,103,110,112 211778 115 104112 005,017,105,107,108,117,119 000001
999
STIFFENING RIGHT
999
STIFFENING RIGHT
999
CONSOLE RIGHT
999
WHEELHOUSE REAR OUTSIDE RIGHT
999
WHEELHOUSE REAR INSIDE RIGHT
999
STIFFENING OUTSIDE RIGHT
999
SIDE MEMBER RIGHT
999
CONSOLE RIGHT
999
COVERING FRONT RIGHT
999
PILLAR OUTSIDE RIGHT
999
REAR FENDER RIGHT
999
MOUNTING
999
PILLAR RIGHT, FROM CHASSIS: 015 200001 100,102,103,110,112 400001 115 200001 005,017,105,107,108,117,119 000001
999
PILLAR RIGHT, FROM CHASSIS: 015 200001 100,102,103,110,112 400001 115 200001 005,017,105,107,108,117,119 000001
999
PILLAR INSIDE RIGHT, NOT USED
999
FRONT PANEL PILLAR RIGHT
999
PILLAR INSIDE RIGHT
