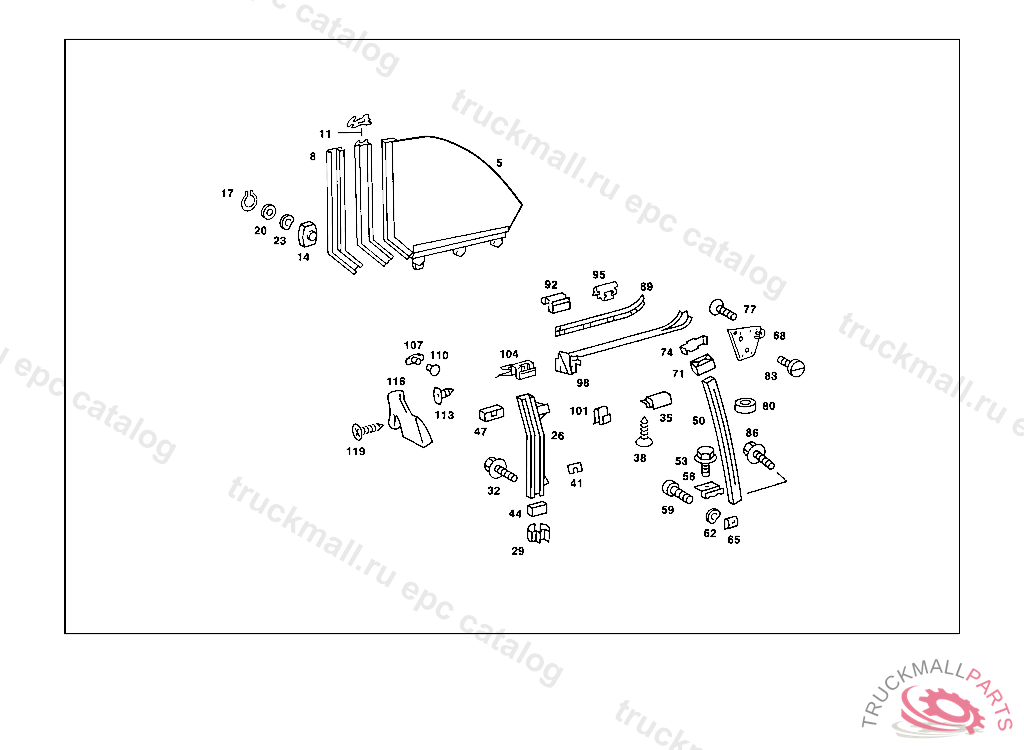

Поз.
Артикул
Описание
5
CRANK OPERATED WINDOW CRYSTAL CLEAR, LEFT
5
CRANK OPERATED WINDOW RIGHT REAR SIDE
5
CRANK OPERATED WINDOW LEFT REAR SIDE
5
CRANK OPERATED WINDOW CRYSTAL CLEAR, RIGHT
8
FRAME LEFT
8
FRAME RIGHT
11
SEAL OUTSIDE
14
SLIDE
17
LOCK RING SLIDE TO RETAINING RAIL
20
WASHER BRACKET TO HEAT SHIELD
23
SPRING WASHER LICENSE PLATE TO BRACKET
26
RAIL LEFT
26
RAIL RIGHT
29
RUBBER BUFFER
32
COMBINATION BOLT BATTERY FRAME TO CONSOLE, TOP
35
CLIP
38
SHEET METAL SCREW
41
ADAPTER 1 MM, 100001
44
STOP
47
COVERING CRANK-OPERATED-WINDOW GUIDE RAIL, 043 001641 050 001004 053 003555
50
GUIDE RAIL
53
COMBINATION BOLT MOUNTING PARTS
56
BEARING GUIDE RAIL TO REAR SIDE PART, INSIDE
59
PIN
62
SPRING WASHER LICENSE PLATE TO BRACKET
65
DUO CLIP GUIDE RAIL TO MOUNTING
68
PLATE
68
PLATE
71
SLIDE
74
DETENT
77
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
80
HOSEWASSERABLAUF HINTEN 250 MM
83
COMBINATION BOLT
86
COMBINATION BOLT MOUNTING PARTS
89
SEALING RAIL LEFT
89
SEALING RAIL RIGHT
92
CLIP
95
CLIP , 008309
98
RAIL OUTSIDE RIGHT
98
RAIL OUTSIDE LEFT
101
CLIP SEALING RAIL AND ORNAMENTAL COVER TO EDGE
104
CLIP SEALING RAIL AND ORNAMENTAL COVER TO EDGE
107
FASTENER BUTTON
110
FASTENER BUTTON , 099999
113
PLUG
116
ORNAMENTAL COVER RIGHT
116
ORNAMENTAL COVER LEFT
119
SHEET METAL SCREW
