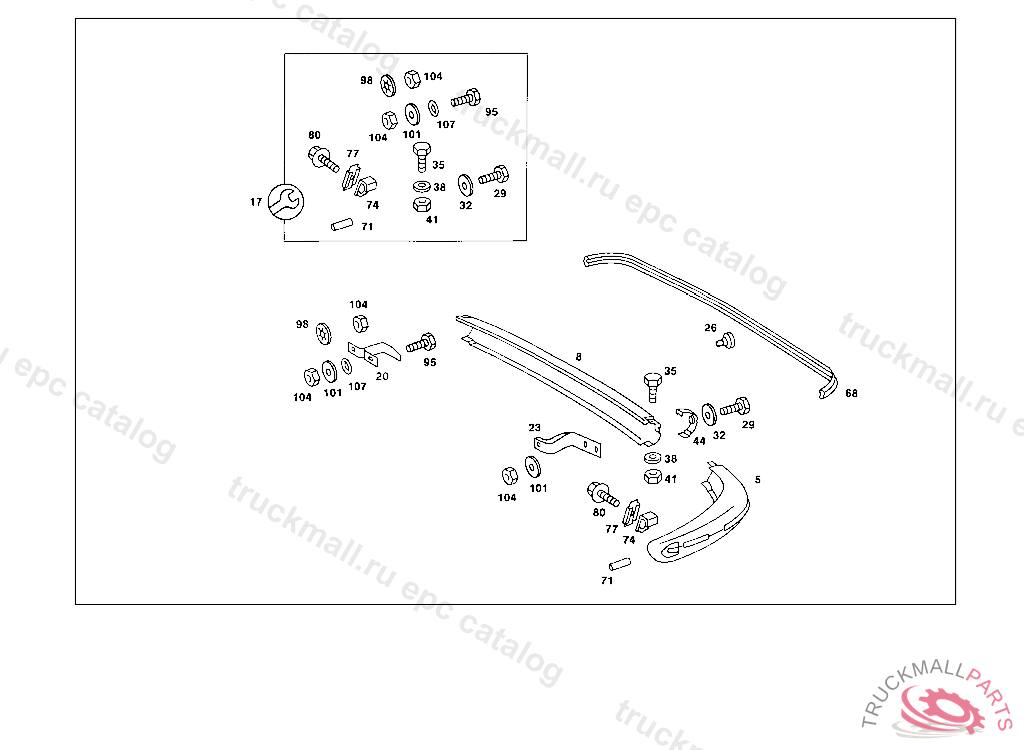

Поз.
Артикул
Описание
5
REAR BUMPER FACE BAR LEFT
5
REAR BUMPER FACE BAR RIGHT
8
REAR BUMPER FACE BAR
17
REPAIR KIT REAR BUMPER
17
REPAIR KIT REAR BUMPER, 043 002802 050 001389 053 005398
20
BRACKET LEFT,REAR BUMPER TO CROSS MEMBER, 000 076112 003 037251 007 034196 102,103 055858 105 070818
20
BRACKET RIGHT,REAR BUMPER TO CROSS MEMBER, 000 076112 003 037251 007 034196 102,103 055858 105 070818
23
BRACKET LEFT,REAR BUMPER TO CROSS MEMBER, 000 076113 003 037252 007 034197 102,103 055859 105 070819
23
BRACKET RIGHT,REAR BUMPER TO CROSS MEMBER, 000 076113 003 037252 007 034197 102,103 055859 105 070819
26
EXPANSION PLUG LATERAL REAR BUMPER TO BODY D10 MM, 083 000576 086 000341 093 000251 183 000754 190 000649
29
SCREW BRACKET TO APPARATUS SUPPORT
29
SCREW , Replaced By: A0069909301
32
WASHER BRACKET TO CAB REAR PANEL
32
WASHER BRACKET TO LEFT SIDE MEMBER
32
WASHER , Replaced By: N009021008213
35
SCREW CLAMP TO BRACKET AND TO PIPE
38
WASHER EXHAUST MUFFLER TO STRAP
38
WASHER
38
WASHER , Replaced By: N000125008443
41
NUT , Replaced By: N304032008006
41
NUT
41
NUT
44
BUMPER JOINT COVER
68
RAIL REAR BUMPER 1765 MM, TO BE ADAPTED DURING ASSEMBLY
71
HOSE35 MM
74
BRACKET
77
PAD
80
SCREW PIPE CLAMP
80
COMBINATION BOLT , Replaced By: N304017008021, +001N000125008443
95
SCREW END PIECE TO EXHAUST PIPE M 10X25
98
WASHER , 023 076112 033 034196 123 055858 130 070818
101
WASHER , Replaced By: N009021010209
101
WASHER BRACKET TO COVERING
104
NUT BRACKET TO SUPPORT AND TO END PIECE
104
NUT BATTERY CABLE
107
SEAL RING , Replaced By: A1159970940
107
SEAL RING
