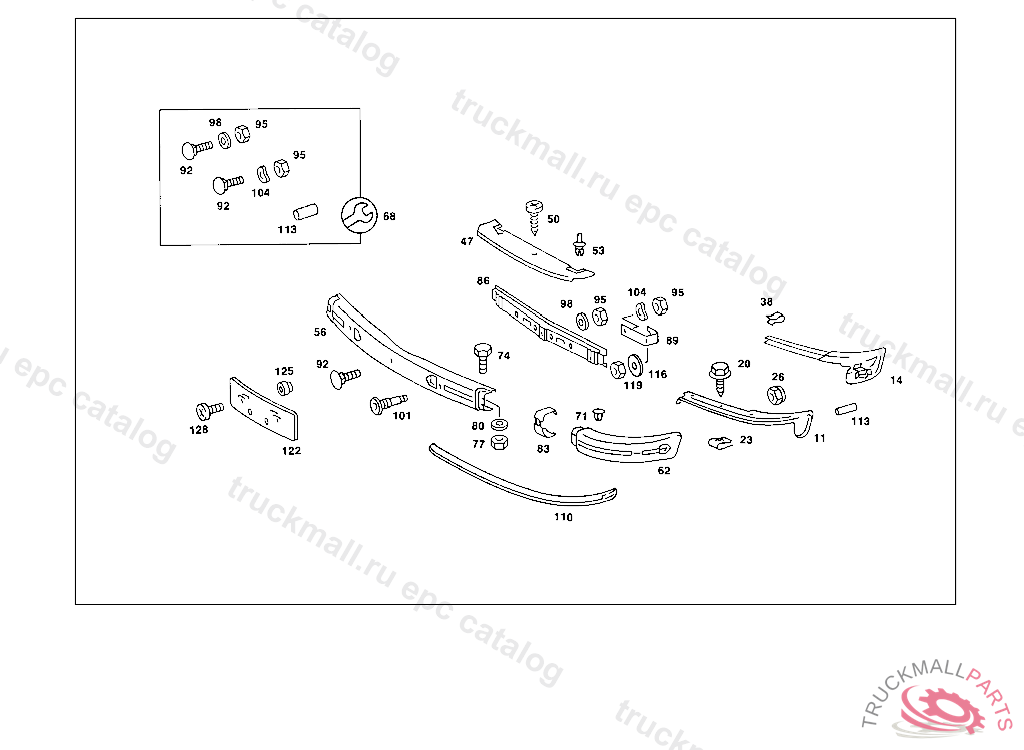

Поз.
Артикул
Описание
11
BUMPER JOINT COVER FRONT LEFT,BETWEEN BUMPER AND FENDER
11
BUMPER JOINT COVER FRONT RIGHT,BETWEEN BUMPER AND FENDER
14
REINFORCEMENT FRONT RIGHT,BETWEEN BUMPER AND FENDER
14
REINFORCEMENT FRONT LEFT,BETWEEN BUMPER AND FENDER
20
SCREW
23
LOCK , Replaced By: A0009940645
23
LOCK INSTRUMENT PANEL TO PANELLING
26
NUT
38
CLIP
47
BUMPER JOINT COVER FRONT,BETWEEN BUMPER AND BODY, 003 099459 007 082986 086 006885 093 008450 102,103 219668 105 219920 183 014499 190 021302 193 000281 200 013534 280 000039 283 002732
50
SHEET METAL SCREW , Replaced By: N000000000453
50
SHEET METAL SCREW MODULE TO HOUSING
53
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
56
FRONT BUMPER FACE BAR FRONT CENTRAL
56
FRONT BUMPER FACE BAR , NOT FOR USE WITH HEADLAMP CLEANING UNIT,ALSO ORDER: 2 PLUG 123 997 03 86, Replaced By: A1238800970
62
FRONT BUMPER FACE BAR LEFT
62
FRONT BUMPER FACE BAR RIGHT
68
REPAIR KIT FRONT BUMPER MOUNTING MATERIAL,WITH LICENSE PLATE BRACKET
71
PLUGTO 123 880 12 70
74
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
SCREW , Replaced By: N304017008016
77
NUT , Replaced By: N304032008006
77
NUT
80
WASHER , Replaced By: N000125008443
80
WASHER EXHAUST MUFFLER TO STRAP
83
BUMPER JOINT COVER LEFT
83
BUMPER JOINT COVER RIGHT
86
REINFORCEMENT FRONT BUMPER
89
BRACKET LEFT,FRONT BUMPER TO CROSS MEMBER
89
BRACKET RIGHT,FRONT BUMPER TO CROSS MEMBER
92
SCREW BRACKET TO FENDER,K 104588
95
NUT
95
NUT , Replaced By: N304032008006
98
WASHER , Replaced By: N000125008443
98
WASHER EXHAUST MUFFLER TO STRAP
101
SCREWM 8X20,K 164029
101
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
104
SPRING WASHER SHIFTING CYLINDER TO YOKE
110
RAIL REAR BUMPER 1765 MM, TO BE ADAPTED DURING ASSEMBLY
110
RAIL FRONT BUMPER 615 MM, TO BE ADAPTED DURING ASSEMBLY
113
HOSE35 MM
116
WASHER BRACKET TO COVERING
116
WASHER , Replaced By: N009021010209
119
NUT BRACKET TO SUPPORT AND TO END PIECE
119
NUT BATTERY CABLE
122
LICENSE PLATE MOULDING FRONT
125
BRACKET
128
SCREW , Replaced By: N000085005151
128
SCREW
999
REPAIR KIT FRONT BUMPER REINFORCEMENT & PANELLING MOUNTING MATERIAL
