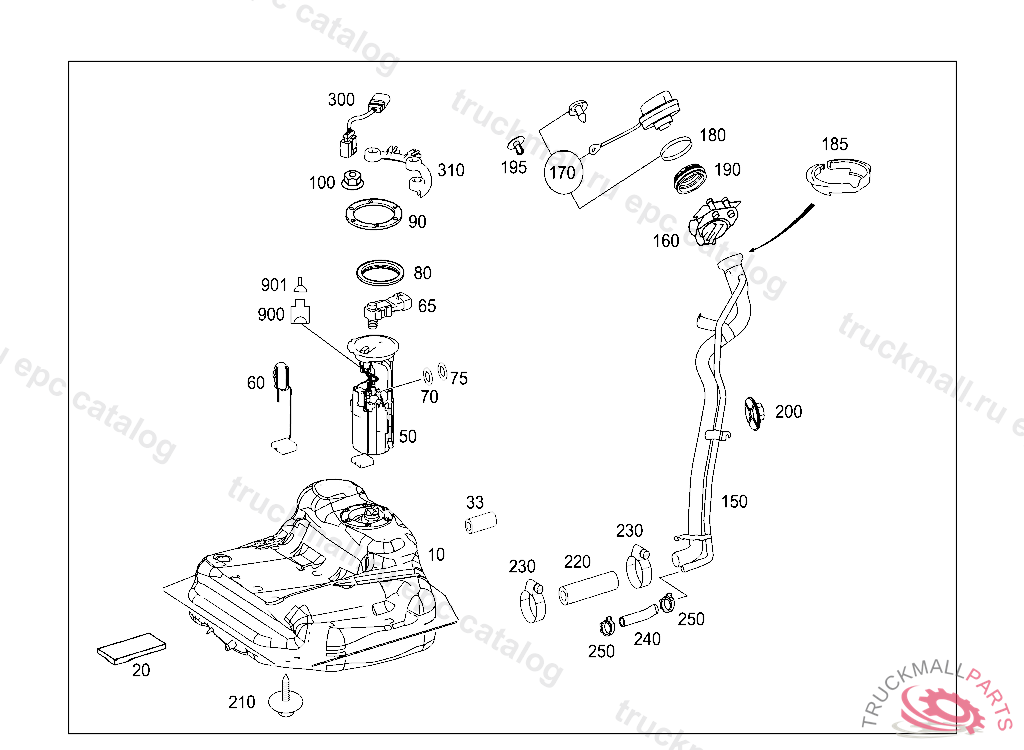

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK , Replaced By: A1694702301, +001A1694701794, +001A1074760078
20
PAD FUEL TANK BOTTOM SIDE
33
BOOT
50
DELIVERY UNIT LESS BREATHING TO: A 169 470 11 01
50
DELIVERY UNIT WITH BREATHING TO: A 169 470 23 01
60
SENDER UNIT
65
PRESSURE SENSOR
80
SEAL RING DELIVERY UNIT TO RESERVOIR
80
SEAL RING DELIVERY UNIT TO RESERVOIR
90
RING DELIVERY UNIT
100
MULTIPLE NUT DELIVERY UNIT TO RESERVOIR
150
FILLER NECK
150
FILLER NECK
170
FUEL FILLER CAP , ORDER FOR RED TANK LOCK WITH INDEX 28
180
SEAL RING FILLER CAP TO FILLER NECK
180
SEAL RING FILLER CAP
185
RING REFUELING NOTE, NOT USED
190
GROMMET FILLER NECK TO FRAME
195
EXPANSION RIVET. RIVET
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
SCREW DELIV.SPEC. FUEL TANK TO SUBSTRUCTURE
220
FUEL HOSE FROM FILLER NECK TO FUEL TANK
230
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
240
HOSE FUEL TANK VENTILATION
240
FUEL HOSE FUEL TANK VENTILATION, Replaced By: A1694762226
250
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
250
LOOM TIE ACTIVATED CHARCOAL FILTER TO SHUT-OFF VALVE, FROM MODEL YEAR '98
300
EL. CABLE FUEL PUMP CONNECTION
300
WIRING HARNESS PRESSURE SENDING UNIT, TANK
310
BRACKET CABLE HARNESS PLUG-CONNECTION
900
PIN BUSHING HOUSING. PLUG 4-POLE
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
GASKET
901
FEMALE CONTACT RELAY SUPPORT 2.5-4.0 MM2 SLK2.8,K100
901
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
