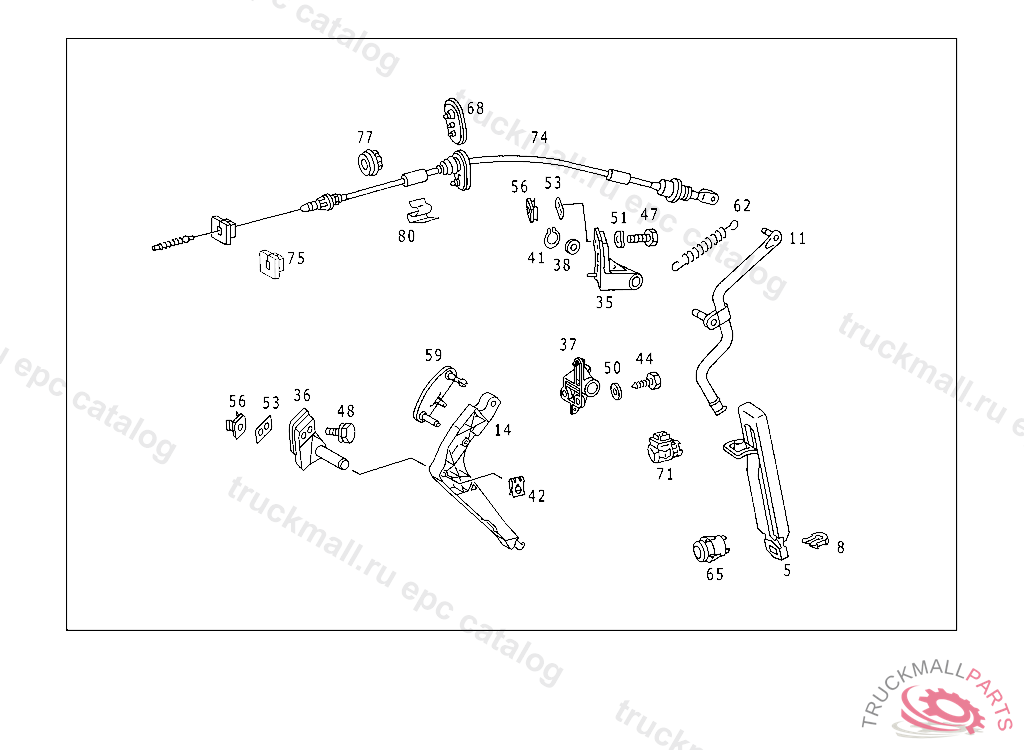

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
CLIP
11
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1243002125, +001A2013010318, +001A1299930810
11
LEVER ACCELERATOR PEDAL
11
LEVER ACCELERATOR PEDAL,B 838714,J 003392
11
LEVER ACCELERATOR PEDAL
14
LEVER ACCELERATOR PEDAL,B 838715,J 003393
35
BEARING ACCELERATOR PEDAL BEARING,B 838714,J 003392
35
BEARING ACCELERATOR PEDAL BEARING
36
BEARING ACCELERATOR PEDAL BEARING,B 838715,J 003393
37
BEARING ACCELERATOR PEDAL BEARING TO 124 300 21 25
37
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
38
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
41
LOCK RINGTO 000 553 37 01,000 553 39 01,
42
CLIP PEDAL LEVER TO BEARING,B 838715,J 003393
44
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
47
SCREW LICENSE PLATE TO BRACKET
48
COMBINATION BOLT BEARING TO FIRE WALL,B 838715,J 003393
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
51
SPRING WASHER LICENSE PLATE TO BRACKET
53
GASKET BEARING TO FIRE WALL
56
NUT RETAINER LICENSE PLATE TO BRACKET
59
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
62
SPRING ACCELERATOR PEDAL,B 838715,J 003393
62
SPRING ACCELERATOR PEDAL,B 838714,J 003392
62
SPRING ACCELERATOR PEDAL TO 124 300 21 25
65
STOP ACCELERATOR PEDAL,A 907056
68
GROMMET PASSAGE OF LINE THRU PARTITION PANEL, LEFT
71
SWITCH (KICK-DOWN SWITCH)
74
WIRE CABLE
74
WIRE CABLE
74
WIRE CABLE
74
WIRE CABLE
75
GUIDE
77
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
80
CLIP
