Главная
Mercedes
CAR
260 E
124.026 TO 09/89
32 SPRINGS,SUSPENSION AND HYDRAULICS

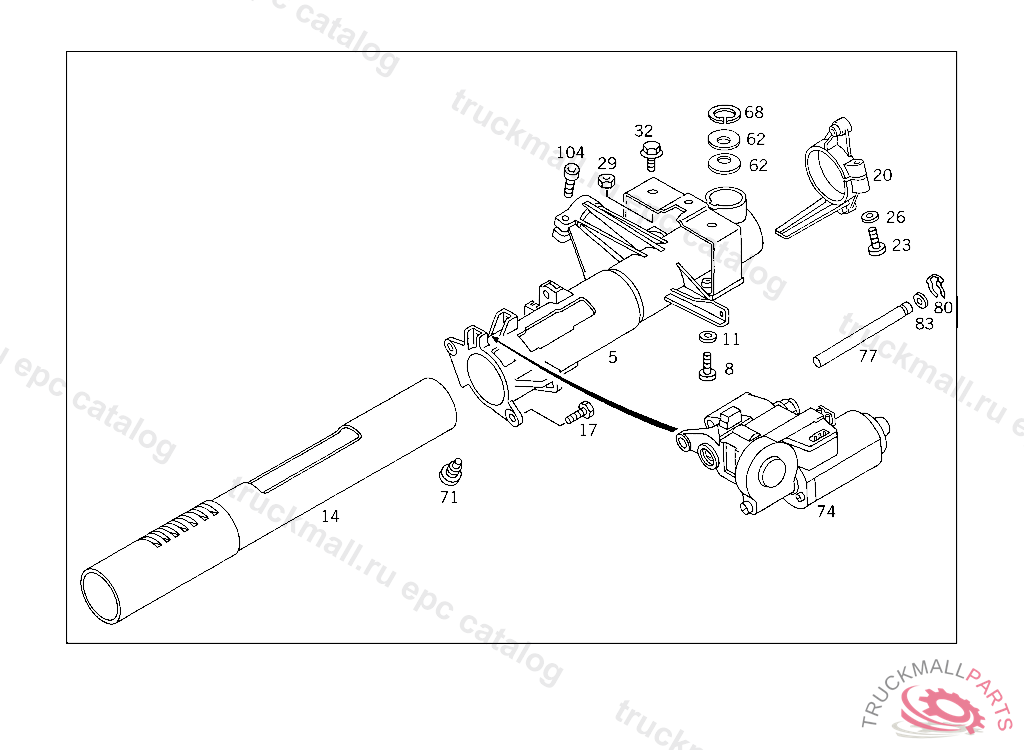

001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.3

Mercedes N304017006018 - Болт

260 E 124.026 TO 09/89

32 SPRINGS,SUSPENSION AND HYDRAULICS - 001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.3

Поз.
Артикул
Описание
5
A1244602716
STEER. COLUMN JACKET TUBE OUTSIDE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
8
N000912006097
SCREWM 6X16
8
N000912006066
SCREW BEARING BRACKET TO TRANSMISSION
11
N000433006402
WASHER LINE TO CROSS AND SIDE MEMBERS
14
A1244621220
STEER.COLUMN JACKET TUBE INSIDE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
14
A1264621620
STEER.COLUMN JACKET TUBE , Replaced By: A1244621220
17
N000933006103
SCREW , Replaced By: N304017006018
17
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
20
A1244622539
BRACKET BLINKER SWITCH, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
20
A1244622339
BRACKET , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1244622539
23
N007985006139
SCREW OIL TANK TO BRACKET
26
N000433006405
WASHER BRACKET TO HEAT SHIELD
29
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
29
N304032006008
NUT BATTERY MOUNTING
32
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
62
A1269931226
DISC SPRING , Replaced By: A1244600422
62
A1264620362
THRUST WASHER , Replaced By: A1244600422
62
A1244600422
CLAMPING PIECE
68
N000472021000
LOCK RING21 MM
71
A1264620571
SCREW
74
A1264600325
GEARING
74
A1264600825
GEARING , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1264600325
77
A1264622274
PIN
80
N912001008000
LOCK HOSE FASTENING
83
N000125008418
WASHER , Replaced By: N000125008443
104
N000912006042
SCREW STEERING LOCK TO STEERING COLUMN JACKET TUBE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
