Mercedes
CAR
200 CE / E 200
124.040 FROM 09/89
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

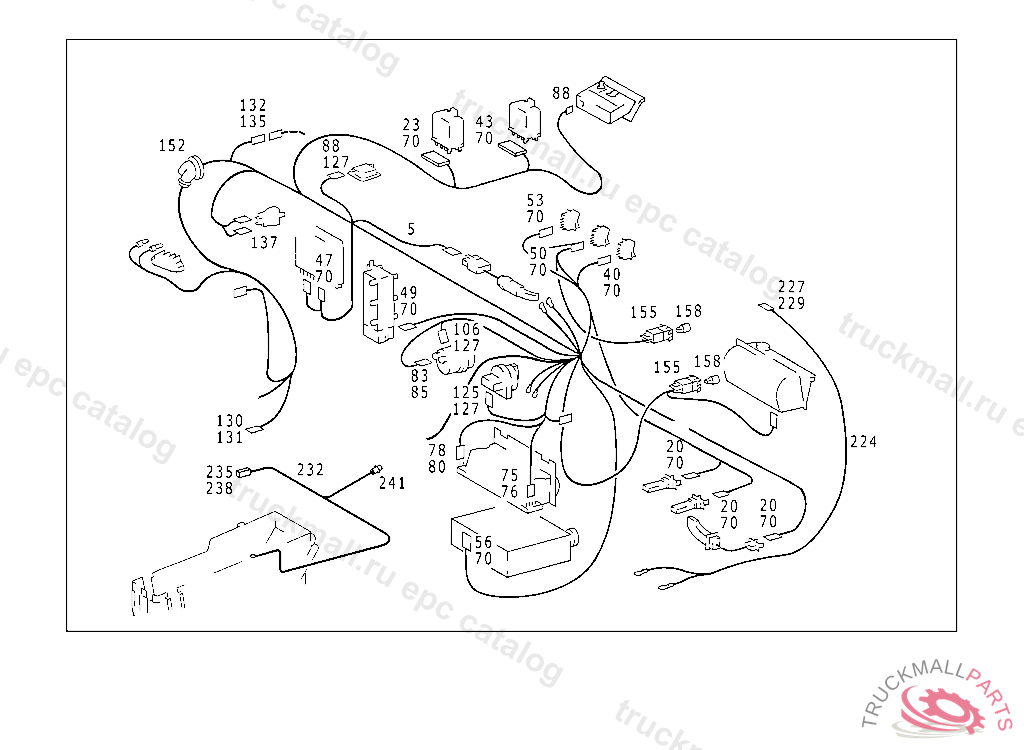

345 ELECTRICAL PARTS USED FOR AUTOMATIC TRANSMISSION AND BACK-UP LIGHT SWITCH

Mercedes A0005453319 - ПАТРОН ЛАМПЫ

200 CE / E 200 124.040 FROM 09/89

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 345 ELECTRICAL PARTS USED FOR AUTOMATIC TRANSMISSION AND BACK-UP LIGHT SWITCH

Поз.
Артикул
Описание
5
A1245431633
CABLE HARNESS INBOARD, WITH HEATING AUTOMATICS, C 009355 EXCEPT FOR B 891779 - C 009354 WITH CODE 859
5
A1244406606
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS, C 009356 J 016700 B 891779 - C 009354 WITH CODE 859
5
A1244406506
CABLE HARNESS INBOARD,WITH TEMPMATIK, C 009356 J 016700 B 891779 - C 009354 WITH CODE 859
5
A1244406406
CABLE HARNESS INBOARD, WITH HEATING AUTOMATICS, C 009356 J 016700 B 891779 - C 009354 WITH CODE 859
5
A1245431833
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS, C 009355 EXCEPT FOR B 891779 - C 009354 WITH CODE 859
5
A1245431733
CABLE HARNESS INBOARD,WITH TEMPMATIK, C 009355 EXCEPT FOR B 891779 - C 009354 WITH CODE 859
5
A1244400310
CABLE HARNESS (ADDIT. CABLE HARNESS) FOR AIR CONDITIONER,ONLY W/SUBSEQUENT INSTALLATION
20
A0105450928
COVERTO 010 545 10 28
20
A0105451028
PIN BUSHING HOUSING BIPOLAR
23
A0105451128
PIN BUSHING HOUSING MIRROR ADJUSTMENT SWITCH, 6-POLE
23
A0105451228
COVERTO 010 545 11 28
40
A0135458228
PIN BUSHING HOUSING CIRCULATING AIR SWITCH, 7-POLE
43
A0105450128
COVERTO 010 545 00 28
43
A0105450028
PIN BUSHING HOUSING CONTROL UNIT
47
A0195452928
PIN BUSHING HOUSING CONTROL UNIT, 14-POLE
47
A0195453128
COVERTO 019 545 29 28
49
A2015453928
PIN BUSHING HOUSING VALVE STRIP,8-POLE
50
A0135452728
PIN BUSHING HOUSING HAZARD WARNING LIGHT, 8-POLE
53
A0135453028
PIN BUSHING HOUSING SWITCH
56
A0008210565
CASE 4-POLE
70
A0025459926
ROUND PIN BUSHING2.5 MM2
75
A2015454128
PIN BUSHING HOUSING AUTOMATIC HEATING OPERATING UNIT, 12-POLE
76
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
78
A0005455983
COVERTO 016 545 45 28
78
A0165454528
PIN BUSHING HOUSING TEMPMATIK OPERATING UNIT,21-POLE
80
A0115458126
CONTACT SPRING0.5-1.0 MM2
83
A0095458228
COVERTO 009 545 83 28
83
A0095458328
PIN BUSHING HOUSING
85
A0045456628
PIN BUSHING
88
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
88
A0015458728
PIN BUSHING HOUSING BIPOLAR
106
A0115450128
PIN BUSHING HOUSING BIPOLAR
125
A0125452428
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
127
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
130
A0145453328
PIN BUSHING HOUSING CONTROL UNIT ASD
130
A2015452828
PIN BUSHING HOUSING DIAGNOSIS BOX
131
A0025453026
ROUND PIN BUSHING LIGHT SWITCH
137
A0005464340
PIN BUSHING RADIO SET
137
A0005460845
INSULATING SLEEVETO 000 546 43 40
152
A0079979781
GROMMET FIRE WALL,RIGHT
155
A0005453319
SOCKET
155
A0008250382
SOCKET
158
N000000001061
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
158
A0008250094
BULB , Replaced By: N000000001061
232
A1245439527
CABLE HARNESS CIRCULATING AIR
235
A0105451028
PIN BUSHING HOUSING BIPOLAR
235
A0105450928
COVERTO 010 545 10 28
238
A0025459926
ROUND PIN BUSHING2.5 MM2
241
A0025453026
ROUND PIN BUSHING LIGHT SWITCH
