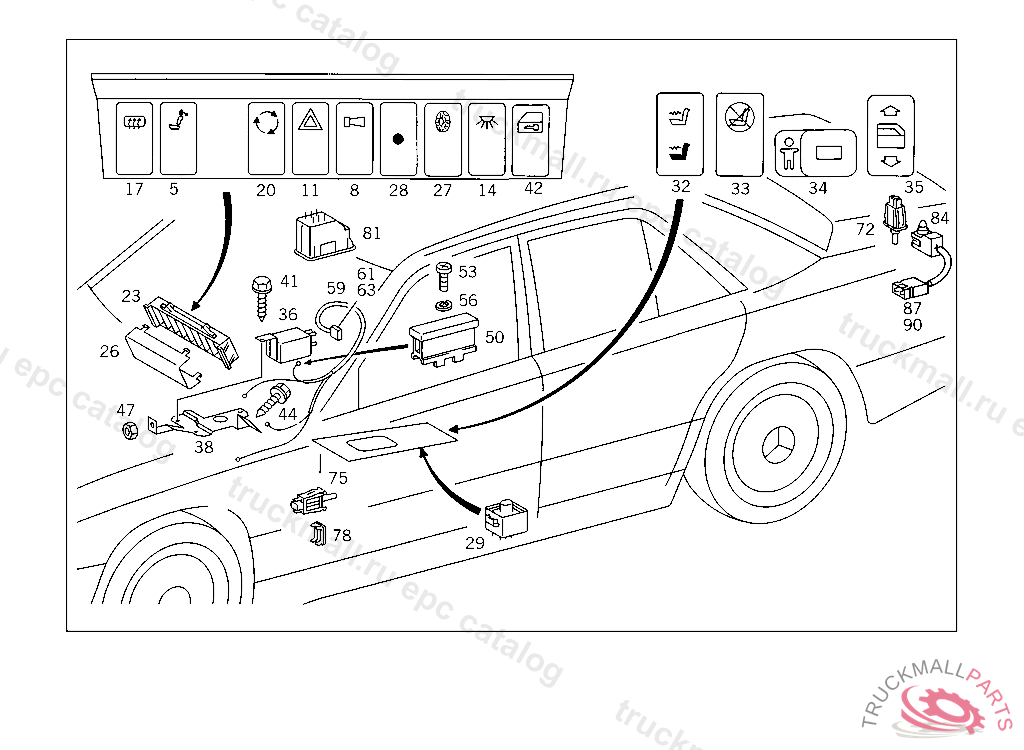

Поз.
Артикул
Описание
5
SWITCH HEADREST UNLOCKING MECHANISM
8
SWITCH TWO-TONE HORN
11
SWITCH HAZARD WARNING LIGHT SWITCH
14
SWITCH INTERIOR LIGHTING
17
SWITCH HEATED REAR WINDOW PANE
20
SWITCH CIRCULATING AIR
23
LEDGE SWITCH TO INSTRUMENT PANEL
26
COVER MULTIWAY CONNECTOR
28
TELL-TALE LAMP BURGLARY ALARM SYSTEM,F 245489
29
SWITCH REARVIEW MIRROR ADJUSTMENT,F 245488
29
SWITCH REARVIEW MIRROR ADJUSTMENT,F 245489
32
SWITCH FRONT SEAT HEATER,LEFT
34
SWITCH SAFETY SWITCH
35
SWITCH ELECTRIC WINDOW REGULATOR,CENTRAL CONSOLE,FRONT
35
SWITCH ELECTRIC WINDOW REGULATOR,CENTRAL CONSOLE, REAR
35
SWITCH , ONLY REPLACEABLE BY PAIRS, Replaced By: A1248208910
35
SWITCH , ONLY REPLACEABLE BY PAIRS, Replaced By: A1248209310
36
CONTROL UNIT INSTRUMENT/SWITCH LIGHTING
38
BRACKET CONTROL UNIT
38
BRACKET CONTROL UNIT
41
COMBINATION BOLT
44
SHEET METAL SCREW ALARM UNIT TO STRUT
44
SHEET METAL SCREW SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
47
NUT BALL PIVOT TO LEVER
50
SOCKET-TERMINAL STRIP
53
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
53
SCREW , Replaced By: N007985004107
56
LOCK WASHER T-FITTING TO BRACKET
59
CABLE HARNESS INSTRUMENT/SWITCH LIGHTING
59
CABLE HARNESS INSTRUMENT/SWITCH LIGHTING
61
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
61
PLUG TRIPLE
63
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
72
SWITCH DOOR CONTACT
75
SWITCH HAND BRAKE CONTROL
78
COVER TO PLUG THE DOOR CONTACT HOLES
81
SWITCH ELECTRIC SLIDING ROOF
84
SWITCH REAR LID LOCK COMFORT CONTROL
87
PLUG HOUSING
90
PLUG PIN
