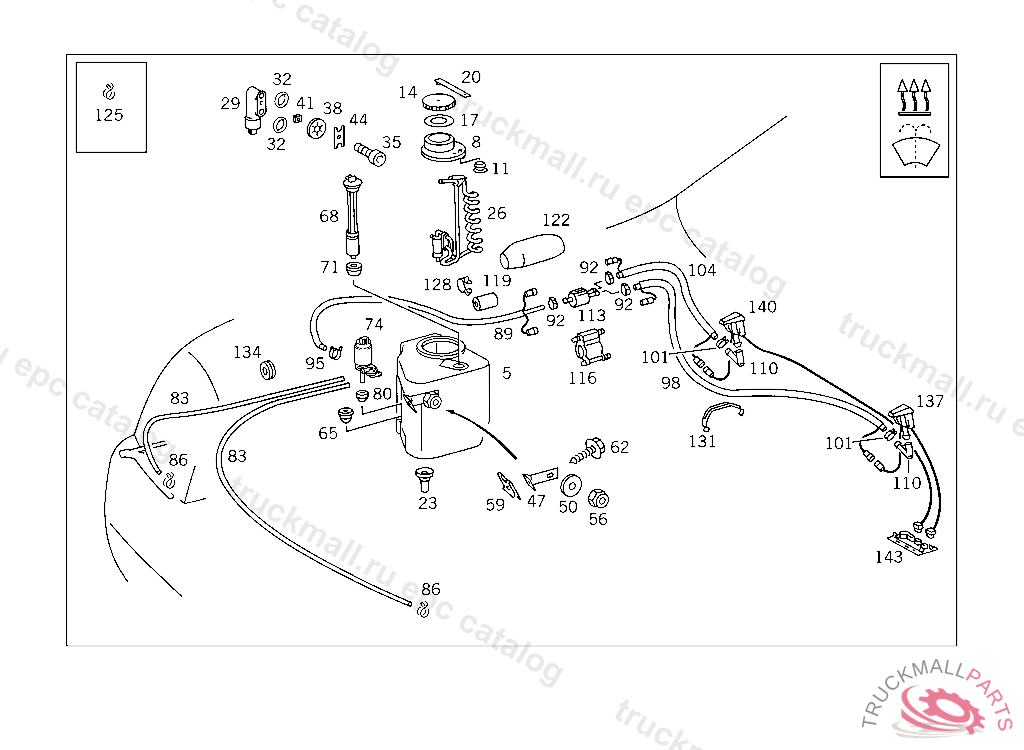

Поз.
Артикул
Описание
5
RESERVOIR WINDSHIELD WASHER HEATED,F 025231
5
RESERVOIR WINDSHIELD WASHER HEATED,F 025232
5
RESERVOIR WINDSHIELD WASHER HEATED
8
COVERING WINDSHIELD WASHER RESERVOIR
11
EXPANSION PLUG WHEELHOUSES, REAR FENDERS
11
GROMMET ,F 084208
14
FILLER CAP
17
SEAL RING ,F 084208
20
HOLDER
23
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
26
HEATER UNIT HEATED WINDSHIELD WASHER RESERVOIR,F 026938
29
VALVE , F 184896
32
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
35
SCREW , F 184896
38
TOOTHED WASHER , F 184896
41
NUT , F 184896
44
CONNECTION , F 184896
47
HOLDER
47
HOLDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 119990, Replaced By: A1298690114
50
WASHER , Replaced By: N009021006208
50
WASHER COMPRESSED AIR LINE TO BRACKET
56
NUT HEATING PIPE TO BRACKET
56
NUT PUMP TO BRACKET
56
NUT , Replaced By: N913004006001
59
LOCK INSTRUMENT PANEL TO COWL
62
SHEET METAL SCREW
65
EXPANSION PLUG TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
65
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
68
SWITCH WINDSHIELD WASHER WATER LEVEL, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
68
SENDER UNIT WINDSHIELD WASHER WATER LEVEL, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
68
SENDER UNIT WINDSHIELD WASHER WATER LEVEL,F 081484
68
SENDER UNIT WINDSHIELD WASHER WATER LEVEL,F 081485
71
GROMMET
71
GROMMET , Replaced By: A1409974281
74
PUMP , Replaced By: A1248690621
74
PUMP , Replaced By: A2028690021
74
PUMP , Replaced By: A2028690021
74
PUMP , Replaced By: A2028690021
74
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
74
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
74
PUMP HEADLAMP WIPER/WASHER, AT WINDSHIELD WASHER RESERVOIR, FROM CHASSIS: 107.022 005201, ALSO INSTALLED ON: 005190-005192,005194-005199 107.023 012497 107.024 021804, ALSO INSTALLED ON: 021794,021802 107.025,026,045,046 000001 107.042 004222, ALSO INSTALLED ON: 004213,004215-004218,004220 107.043 013577 107.044 047068, ALSO INSTALLED ON: 047057,047061,047062,047064-047066 UP TO CHASSIS SEE SA 55873/12
80
GROMMET CENTRIFUGAL PUMP CONNECTION
83
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
86
CLAMP
89
HOSE FROM PUMP TO CHECK VALVE,F 060629
89
HOSE FROM PUMP TO CHECK VALVE
92
LOOM TIE
95
CLAMP
95
CLAMP
98
HOSE FROM CHECK VALVE TO LEFT NOZZLE,F 060628
98
HOSE FROM CHECK VALVE TO LEFT NOZZLE,F 060629
101
CLAMP
104
HOSE FROM CHECK VALVE TO RIGHT NOZZLE
110
CONNECTOR AT LEFT AND RIGHT NOZZLES
113
CHECK VALVE (CHECK VALVE),WINDSHIELD WASHER, 000 159697 003 078977 007 064070 083 004734 086 003596 093 004546 102,103 149491 105 164442 183 008116 190 011709
116
HEATING ELEMENT ,F 084208
119
HOSE CHECK VALVE
122
HOSE
125
CLAMP
128
CLAMP , Replaced By: A0009956044
128
CLAMP , Replaced By: A0009955244
128
CLAMP , Replaced By: A0009955644
128
CLAMP BOWDEN CABLE TO CAB
128
CLAMP
131
CLIP
134
GROMMET
134
GROMMET
137
NOZZLE ENGINE HOOD, LEFT
140
NOZZLE ENGINE HOOD,RIGHT
143
PLATE ,F 084208
