Поз.
Артикул
Описание
10

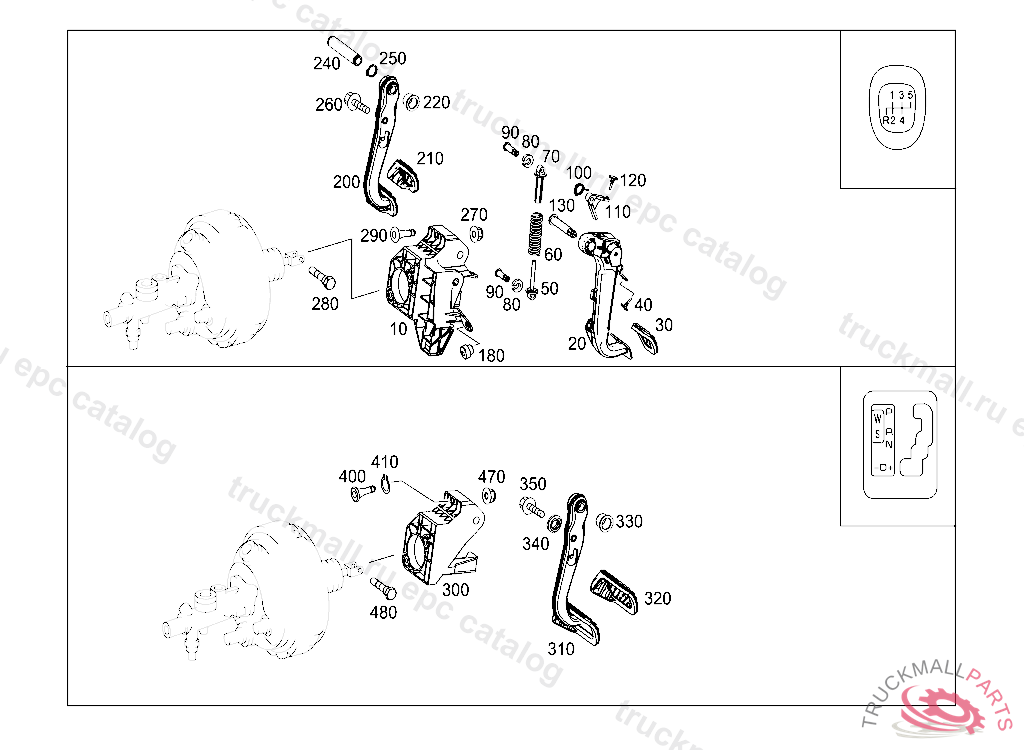

PEDAL SYSTEM
10
PEDAL BEARING BRACKET
20
CLUTCH PEDAL , F 05798520120930
20
CLUTCH PEDAL , F 05798420120930
30
PEDAL COVER CLUTCH PEDAL
40
BUFFER STOP AT BEARING BRACKET
50
ROD
60
PRESSURE SPRING
60
SPRING
70
SPRING RETAINER OVER-CENTER ACTING SPRING
80
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
90
PIN SPRING RETAINER
100
SPRING AT BRACKET
110
BRACKET PEDAL BEARING BRACKET
120
BUFFER STOP AT BEARING BRACKET
130
PIN CLUTCH PEDAL TO BEARING BRACKET
180
STOP CLUTCH PEDAL
180
STOP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. A 050826 F 003713
180
STOP BUFFER CLUTCH PEDAL
200
BRAKE PEDAL PEDAL ASSEMBLY
210
PAD BRAKE PEDAL
220
BUSHING BRAKE PEDAL
240
BEARING BOLT BRAKE PEDAL TO BEARING BRACKET
250
LOCK STOP TO BEARING BRACKET
260
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
270
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
280
PIN BRAKE UNIT TO PEDAL ASSEMBLY
290
PLUG
300
PEDAL BEARING BRACKET PEDAL ASSEMBLY
300
PEDAL BEARING BRACKET PEDAL ASSEMBLY
310
BRAKE PEDAL PEDAL ASSEMBLY
310
BRAKE PEDAL PEDAL ASSEMBLY
320
PAD BRAKE PEDAL
330
BUSHING BRAKE PEDAL
340
CONNECTOR TO BRAKE PEDAL, A 02430720090731800
350
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
400
PLUG
410
LOCK STOP TO BEARING BRACKET
470
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
480
PIN BRAKE UNIT TO PEDAL ASSEMBLY
