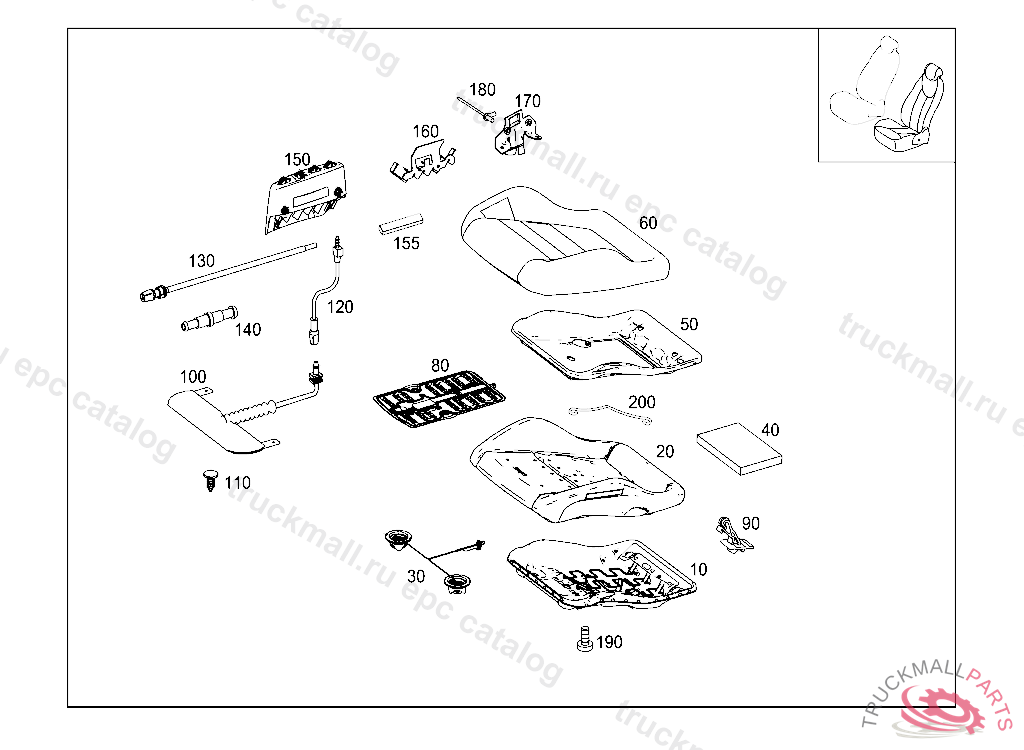

Поз.
Артикул
Описание
10
CUSHION FRAME
20
REST
20
REST
20
REST
20
REST
30
AXIAL BLOWER
40
PAD TO CONTROL UNIT
50
COVER BETWEEN PADDING AND SEAT COVER
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION LEATHER
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION LEATHER
60
COVER FRONT SEAT CUSHION
60
COVER
60
COVER
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION , 9D88 101A/121AQFT207A2017 BLACK
60
COVER FRONT SEAT CUSHION
60
COVER
60
COVER FRONT SEAT CUSHION
60
COVER
60
COVER LEATHER, DESIGNO, UNI-COLOR
60
COVER
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION LEATHER
60
COVER LEATHER
60
COVER FRONT SEAT CUSHION LEATHER
60
COVER LEATHER
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION
60
COVER
60
COVER
60
COVER FRONT SEAT CUSHION LEATHER
60
COVER FRONT SEAT CUSHION
60
COVER
60
COVER
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION FABRIC
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION
60
COVER FRONT SEAT CUSHION LEATHER
60
COVER
60
COVER
60
COVER LEATHER, DESIGNO, TWO-COLOR
60
COVER
60
COVER
80
SENSOR MAT AUTOMATIC CHILD SEAT RECOGNITION
80
SENSOR MAT SEAT OCCUPATION RECOGNITION
80
SWITCH SEAT OCCUPATION RECOGNITION
90
BRACKET
100
SEAT ADAPTER
110
STOP PLUG BRAKE CABLE
120
HOSE LINE BETWEEN BASE AND VALVE
130
RS PLUG CONNECTION REPAIR SOLUTION LONG SOCKET B8
130
RS PLUG CONNECTION LINE TO VALVE BLOCK
140
PLUG CONNECTION
150
CONTROL VALVE , 9051QFT204A2450 BLACK
155
BASE
160
BRACKET REGULATING VALVE, A 79395120050314 F 69317320050228 R 19055320050318
170
BRACKET LEFT
180
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
190
HEXALOBULAR BOLT ON BOW,LEFT M6X12, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
200
BRACKET , Replaced By: A1269241929
200
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
