Mercedes A1409900014 - Болт

CLK 200 KOMPRESSOR 208.345

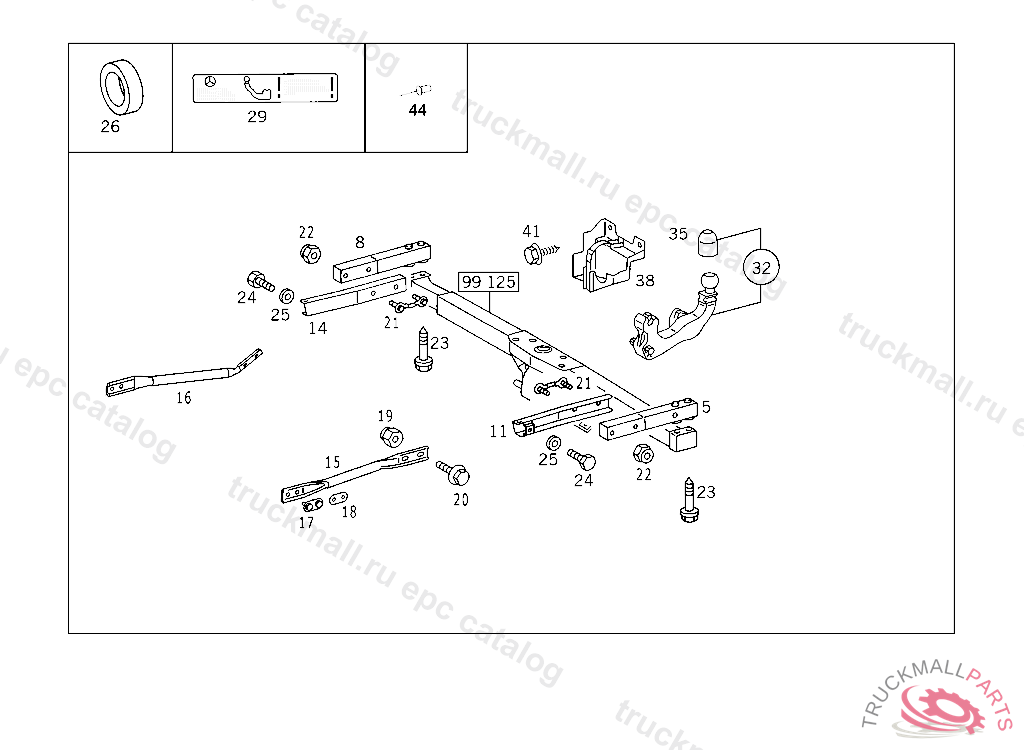

31 HITCHING MECHANISM - 015 TRAILER COUPLING

Поз.
Артикул
Описание
5
A2023100591
STIFFENING LEFT, A 032470 F 021239
8
A2023100391
STIFFENING RIGHT
11
A2023100357
PLATE LEFT, A 032470 F 021239
14
A2023100257
PLATE RIGHT
21
A2103100360
SHACKLE
22
N910113010000
NUT STRAP TO BRACKET
23
A1409900014
SCREW
24
N910106010031
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
24
N914125010308
SCREW , Replaced By: N910106010031
25
N007349010007
WASHER STRUT TO CROSS MEMBER
26
A1403150080
GASKET CROSS MEMBER TO SIDE MEMBERS
29
A2105841917
GUIDE SIGN TRAILER COUPLING
32
A2103100656
BALL HEAD TRAILER COUPLING, A 364221 F 341903
35
A0003150629
CAP
38
A2028900111
TANK BALL STUD TO CROSS MEMBER, A 364221 F 341903
41
N000000001454
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
44
A0019904558
NUT
