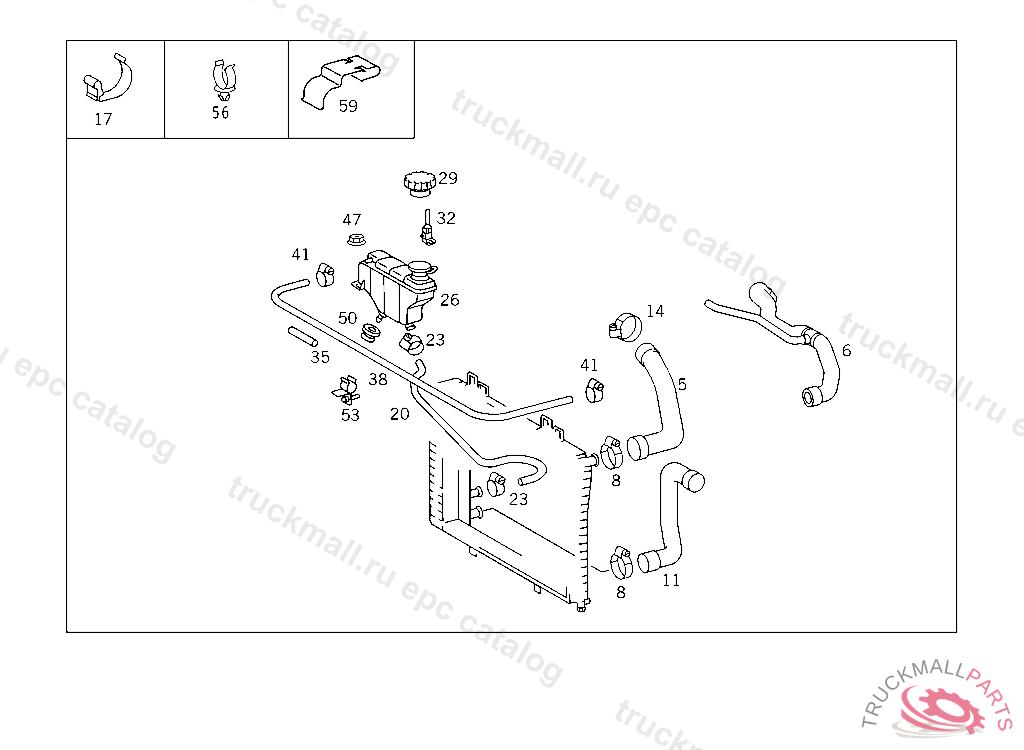

Поз.
Артикул
Описание
5
HOSE TOP
8
LOOM TIE
8
CLAMP , Replaced By: A0069970590
11
HOSE BOTTOM
14
LOOM TIE. CLAMP HOSE FASTENING
14
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
20
HOSE
23
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
23
CLAMP HOSE FASTENING 28-35 MM,V 207570
26
TANK EXPANSION TANK
29
CLOSING COVER RADIATOR
32
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
35
HOSE OVERFLOW 530 MM, ORDER BY THE METER
38
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
38
HOSE , Replaced By: N000000000734
41
HOSE CLAMP8-16
47
NUT EXPANSION TANK TO WHEELHOUSE
47
NUT MOUNTING FRAME TO SUPPORT M6
50
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
53
BRACKET BREATHER LINE
59
BRACKET BREATHER LINE
