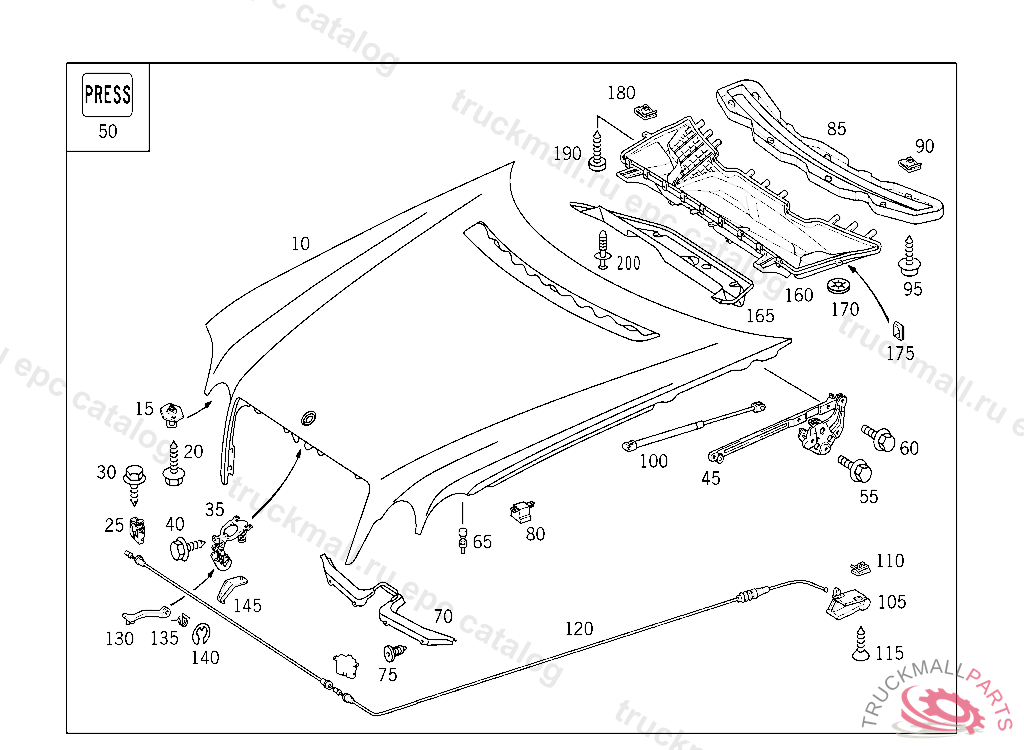

Поз.
Артикул
Описание
10
ENGINE HOOD
15
ENGINE HOOD CATCH UPPER PART
20
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
25
ENGINE HOOD CATCH LOWER PART
30
SCREW PUMP TO BRACKET
35
SAFETY HOOK
40
COMBINATION BOLT , Replaced By: N304017006016
45
HINGE RIGHT
45
HINGE LEFT
50
GUIDE SIGN RIGHT HINGE "PRESS"
55
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X14
60
BOLT HINGE TO ENGINE HOOD M6X16, A 87779820051031806 E 01945020051031806
65
BUFFER ENGINE HOOD STOP
70
SEAL ENGINE HOOD
75
STOP PLUG BRAKE CABLE
80
SEAL BETWEEN ENGINE HOOD AND FENDER
85
COVERING VENTILATION SCREEN
85
COVERING. COVER VENTILATION SCREEN
90
LOCK. FUSE LOWER PANELLING TO UPPER PANELLING
95
TAPPING SCREW MOUNTING PARTS 4.8X16
100
GAS SPRING. GAS-OPERATED SPRING
105
HANDLE ENGINE HOOD RELEASE CABLE
110
LOCK FRESH AIR,INSTRUMENT PANEL,CENTER
115
SHEET METAL SCREW BRACKET TO CAB
120
ENGINE HOOD RELEASE CABLE
130
HANDLE RELEASE, ENGINE HOOD CLASSIC/ELEGANCE
130
HANDLE RELEASE, ENGINE HOOD AVANTGARDE
135
SPRING HANDLE TO SAFETY HOOK
140
LOCK HOSE FASTENING
145
DEFLECTOR SAFETY HOOK
160
AIR DUCT AT ENGINE HOOD, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808
160
AIR DUCT AT ENGINE HOOD
165
INSULATION AIR DUCT TO ENGINE HOOD, A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
170
FUSE JACKET TUBE WIRING HARNESS FASTENING
175
VALVE WATER DRAIN, A 183683
180
LOCK INSTRUMENT PANEL TO PANELLING
190
TAPPING SCREW MOUNTING PARTS 4.8X16
190
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
200
RIVET BUSHING AND LEVER TO CAB
