Поз.
Артикул
Описание
5

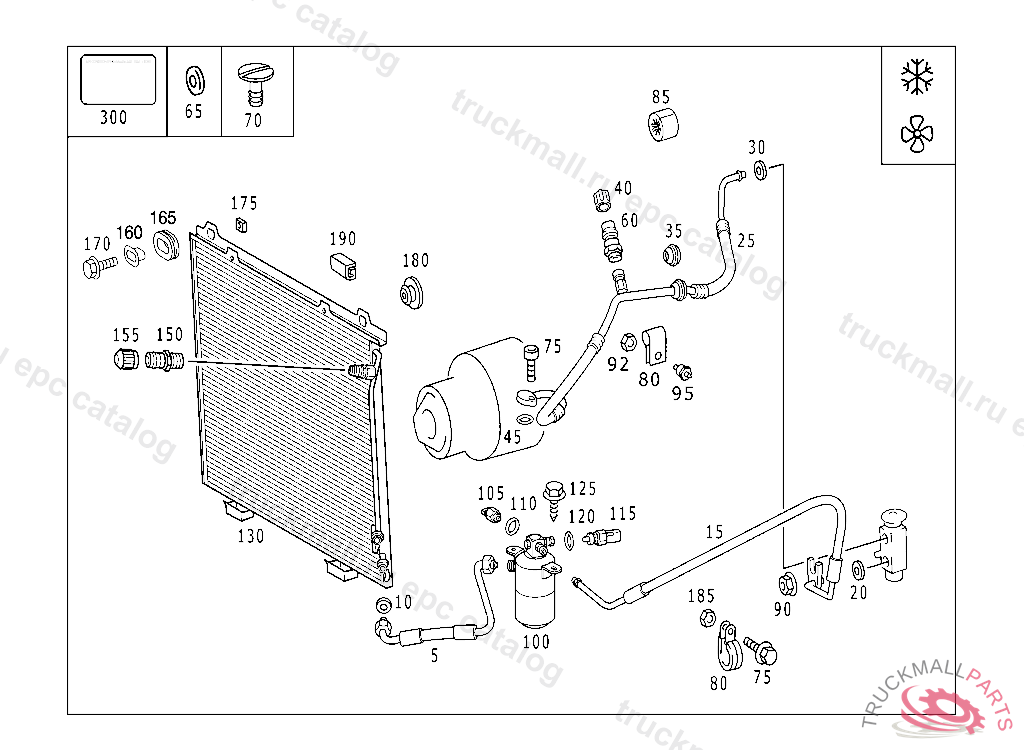

PIPE LINE FROM CONDENSER TO LIQUID TANK
10
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
15
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
15
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
20
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
25
PIPELINE FROM EXPANSION VALVE SEPARATION POINT
25
PIPELINE FROM EXPANSION VALVE SEPARATION POINT
30
O-RING HOSE TO EXPANSION VALVE 17X2
35
GROMMET
40
CAP , NOT USED
45
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
60
VALVE
65
GROMMET AT SOLENOID VALVE,A 258245
70
PUSH BUTTON. FASTENER BUTTON
75
CLAMP CLIMATE CONTROL CABLE AT BRACKET
75
SCREW , Replaced By: N007984008003
75
SCREW LEVER TO ENGINE CONTROL SHAFT
80
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
80
CLAMP AT BRACKET ON SHOCK ABSORBER CONSOLE
85
CLAMPING PIECE
90
NUT , Replaced By: N913023006001
92
NUT , Replaced By: N913023006001
100
TANK , A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
100
TANK
105
SENSOR AT LIQUID TANK
110
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
115
TEMPERATURE SENSOR AT LIQUID TANK, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
120
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
125
SCREW
130
CONDENSER
150
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0018306384
155
CAP
160
BUSHING CONDENSER TO RADIATOR
165
GROMMET CONDENSER TO RADIATOR
170
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT , Replaced By: N304017006019
170
SCREW , WITH DIESEL ENGINE
175
NUT CONDENSER TO RADIATOR
180
GROMMET ADDITIONAL BLOWER TO FRONT CENTRAL STIFFENING, ALSO FOR THE GULF STATES UP TO IDENT NO.: F 161716
185
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
190
INTERMEDIATE LAYER BETWEEN CONDENSER AND RADIATOR
300
GUIDE SIGN REFRIGERANT R 134 A
