Поз.
Артикул
Описание
5

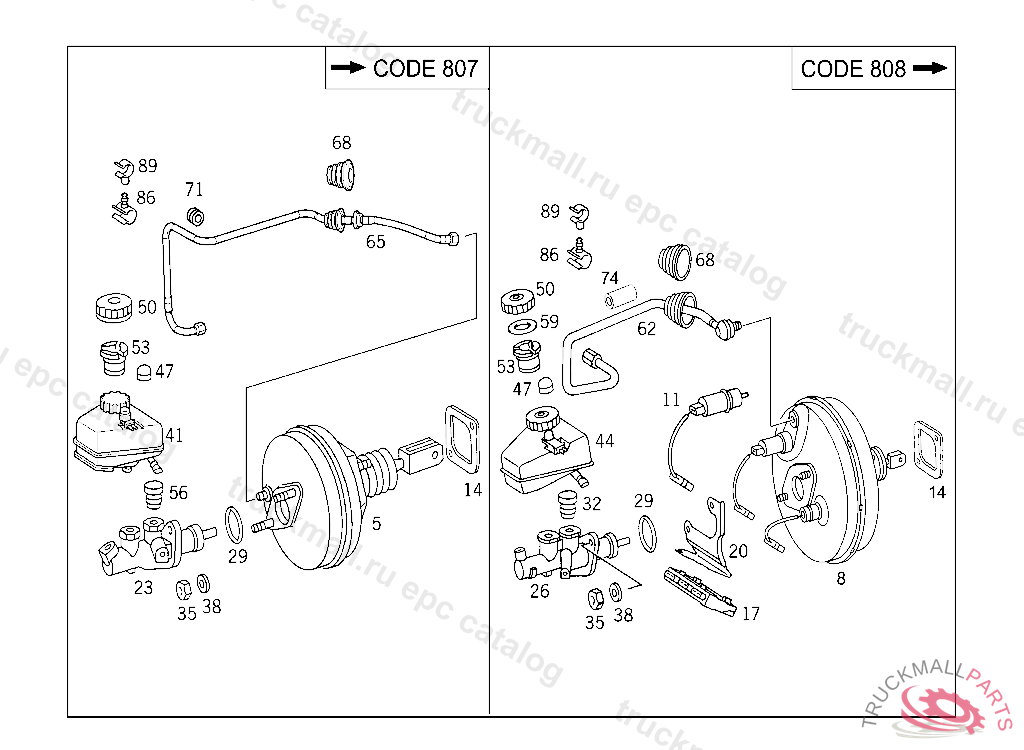

BRAKE BOOSTER ASSEMBLY
14
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
23
BRAKE MASTER CYLINDER , FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867 A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
29
SEAL RING
35
NUT
38
WASHER EXHAUST MUFFLER TO STRAP
41
RESERVOIR , FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867 UP TO MODEL YEAR '97
41
RESERVOIR , FOR USE WITHOUT ACCELERATION SKID CONTROL(A S R)
44
RESERVOIR
47
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
50
COVER
50
COVER , Replaced By: A0004307514
50
COVER , Replaced By: A2024300014
53
STRAINER
56
BUSHING
59
GASKET
65
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
68
GROMMET FLEXIBLE SHAFT THRU FIRE WALL,F 128718
86
CLAMP6/14-15 MM
89
BRACKET LINE MOUNTING 11 MM
