Поз.
Артикул
Описание
5

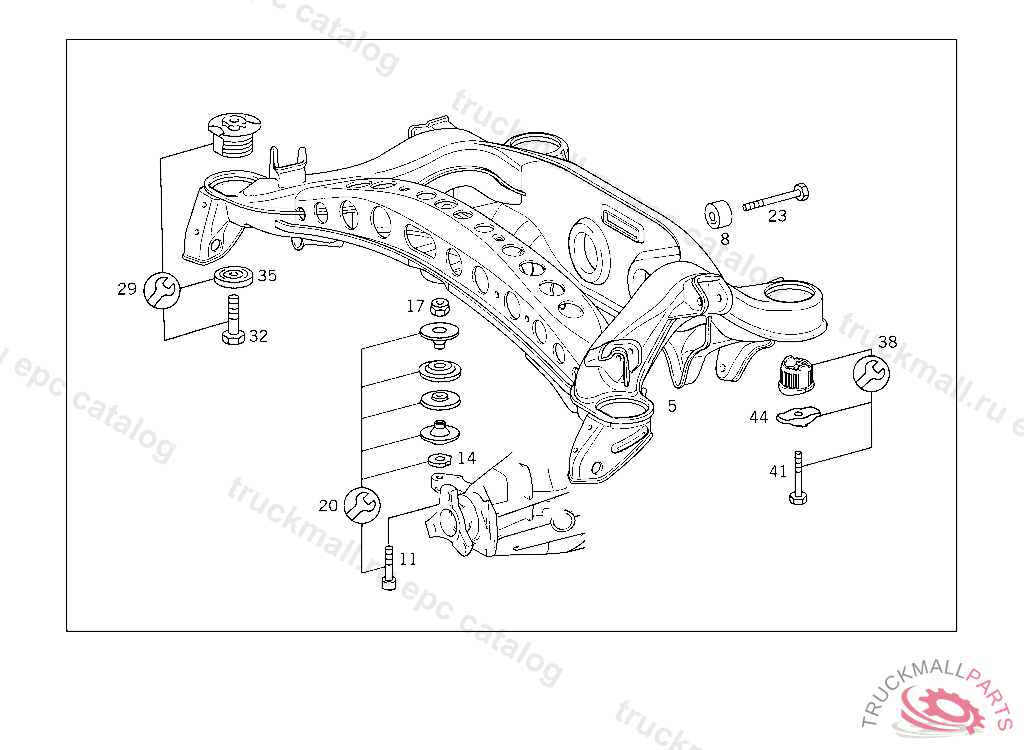

REAR SUBFRAME
8
RUBBER MOUNTING
11
SCREW AXLE HOUSING TO REAR SUBFRAME,FRONT
11
SCREW , Replaced By: N000912010240, +001N910113010000
14
SPACER WASHER AS REQUIRED 3.0 MM
14
SPACER WASHER NUMBER OF NOTCHES: 2 X 1 (1 MM ), TO BE USED ON REAR SUBFRAME LESS STAMPED-ON CHARACTERISTIC NUMBER 0F 8MM
14
SPACER WASHER AS REQUIRED 4.0 MM
14
SPACER WASHER AS REQUIRED 2.0 MM
17
NUT STRAP TO BRACKET
17
HEXAGON NUT
20
HOUSING AXLE HOUSING TO REAR SUBFRAME,FRONT
20
REPAIR KIT , Replaced By: A1403504941
23
SCREW AXLE HOUSING TO REAR SUBFRAME,REAR
29
REPAIR KIT REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT
32
SCREW REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT, NOT FOR AUSTRALIA
35
STOP FRONT
38
REPAIR KIT REAR SUBFRAME TO FRAME FLOOR UNIT,REAR
41
SCREW REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT, NOT FOR AUSTRALIA
44
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
