Mercedes A1154710079 - УПЛОТНЕНИЕ

E 220 CDI 210.606 TO MODELLJAHR CODE 809

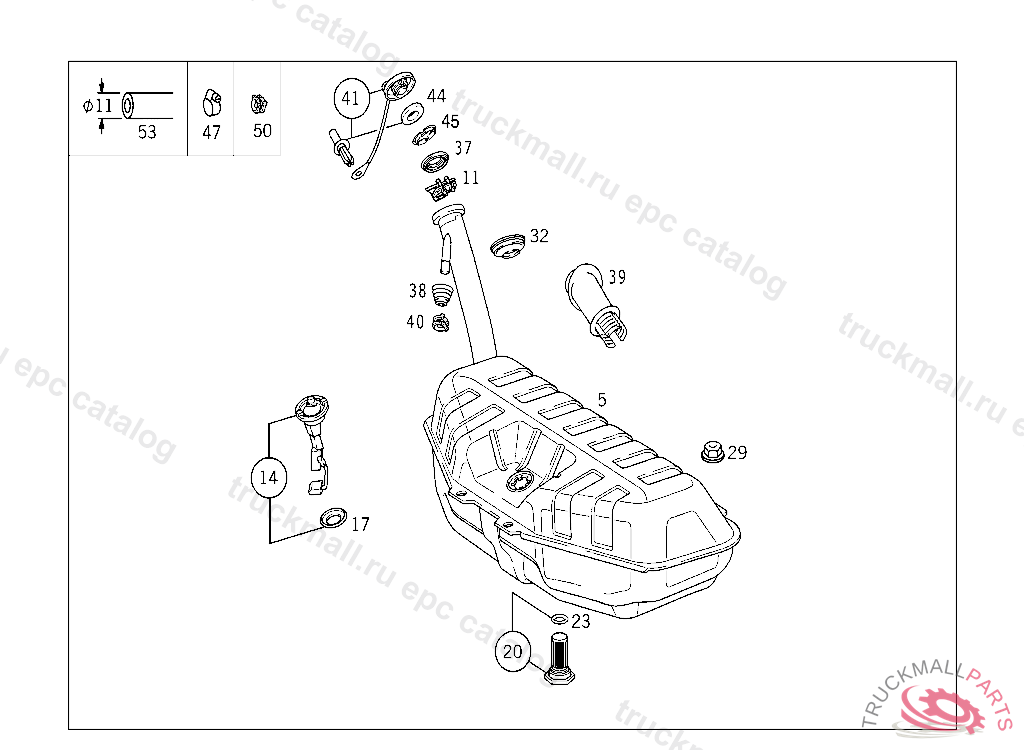

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
5
A2104707101
FUEL TANK70 L, Replaced By: A2104708201
14
A2105421817
SENDER UNIT
14
A2105420517
SENDER UNIT , Replaced By: A2105421817
17
A2104710079
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
20
A2104700306
FUEL STRAINER , Replaced By: A2104700506
20
A2104700506
FUEL STRAINER
23
A1109970145
SEAL RING
29
A0009903350
NUT , Replaced By: N913002008004
32
A2019971381
GROMMET
37
A1409973981
GROMMET FILLER NECK
39
A2104710381
BOOT BREATHER LINE
40
A0059971990
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
41
A1404700005
FILLER CAP CENTRAL LOCKING MECHANISM TO 124 470 08 04 / 09 04
44
A1154710079
SEAL RING
50
A0049972090
HOSE CLAMP FUEL LINE TO FUEL FILTER
