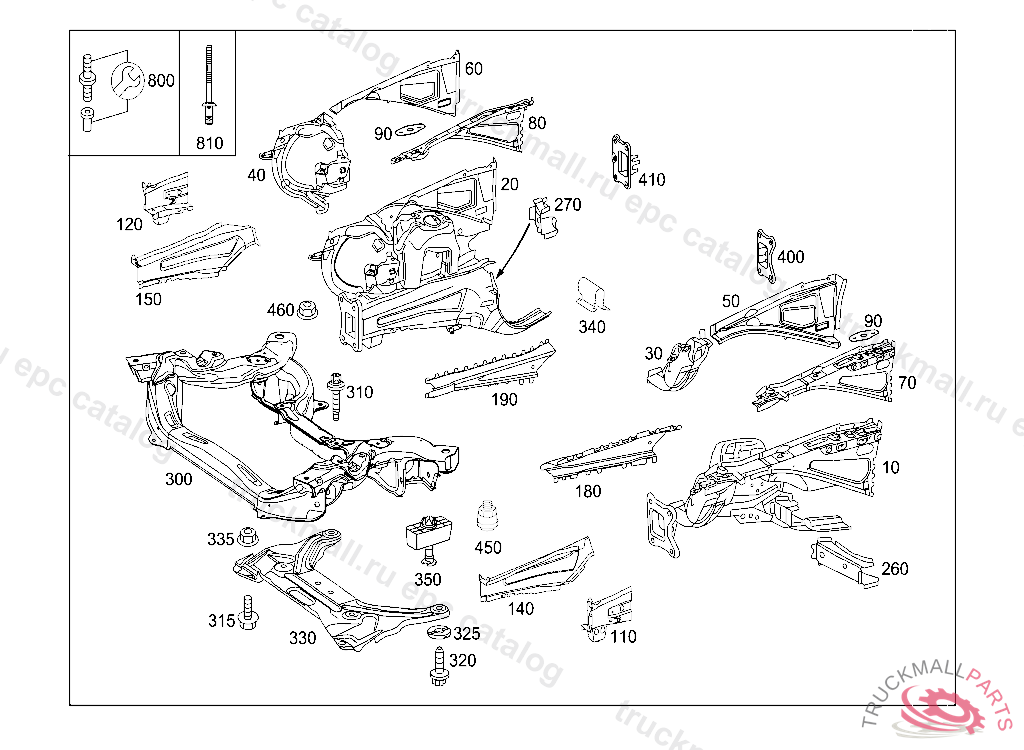

Поз.
Артикул
Описание
10
WHEEL HOUSE LEFT, Replaced By: A2116201961
10
WHEELHOUSE LEFT
20
WHEEL HOUSE RIGHT, Replaced By: A2116202061
20
WHEELHOUSE RIGHT
30
WHEELHOUSE FRONT LEFT
40
WHEELHOUSE FRONT RIGHT
50
SIDE MEMBER INSIDE TOP LEFT
50
SIDE MEMBER INSIDE TOP LEFT, Replaced By: A2116262752
60
SIDE MEMBER INSIDE TOP RIGHT, Replaced By: A2116262852
60
SIDE MEMBER INSIDE TOP RIGHT
70
SIDE MEMBER OUTSIDE TOP LEFT, Replaced By: A2116205734
70
SIDE MEMBER OUTSIDE TOP LEFT
80
SIDE MEMBER OUTSIDE TOP RIGHT, Replaced By: A2116205834
80
SIDE MEMBER OUTSIDE TOP RIGHT
90
PLATE AT SIDE MEMBER
90
PLATE FRONT FENDER TO WHEELHOUSE
110
SIDE MEMBER FRONT LEFT OUTSIDE
120
SIDE MEMBER FRONT RIGHT OUTSIDE
140
SIDE MEMBER LEFT INSIDE
150
SIDE MEMBER RIGHT INSIDE
180
REINFORCEMENT LEFT SIDE MEMBER
190
REINFORCEMENT RIGHT SIDE MEMBER
260
SUPPORT LEFT
270
SUPPORT RIGHT
300
INTEGRAL CARRIER FRONT AXLE, Replaced By: A2116201587
300
SUPPORT AT SIDE MEMBER
310
BOLT SUPPORT TO SIDE MEMBER
315
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
320
BOLT FRONT SUBFRAME TO SIDE MEMBER M12X1.5 X 42
325
SPACER DISK REAR FRAME-TYPE INTEGRAL SUPPORT
330
PLATE TO FRAME-TYPE INTEGRAL SUPPORT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 77844520041209, Replaced By: A2116280411
330
PLATE STEERING MOUNTING, Replaced By: A2116280511
330
PLATE STEERING MOUNTING
335
NUT BRACKET TO SIDE MEMBER M12X1.5
340
EDGE GUARD TO FRAME-TYPE INTEGRAL SUPPORT
350
STOP PLUG JACK TAKE-UP DEVICE
400
CONSOLE PLATE TO WHEELHOUSE LINER, LEFT
410
CONSOLE PLATE TO WHEELHOUSE LINER, RIGHT
450
WELD STUD GROUND CONNECTION M6X13
460
NUT GROUND CABLE TO DAMPER STRUT DOME
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
