Поз.
Артикул
Описание

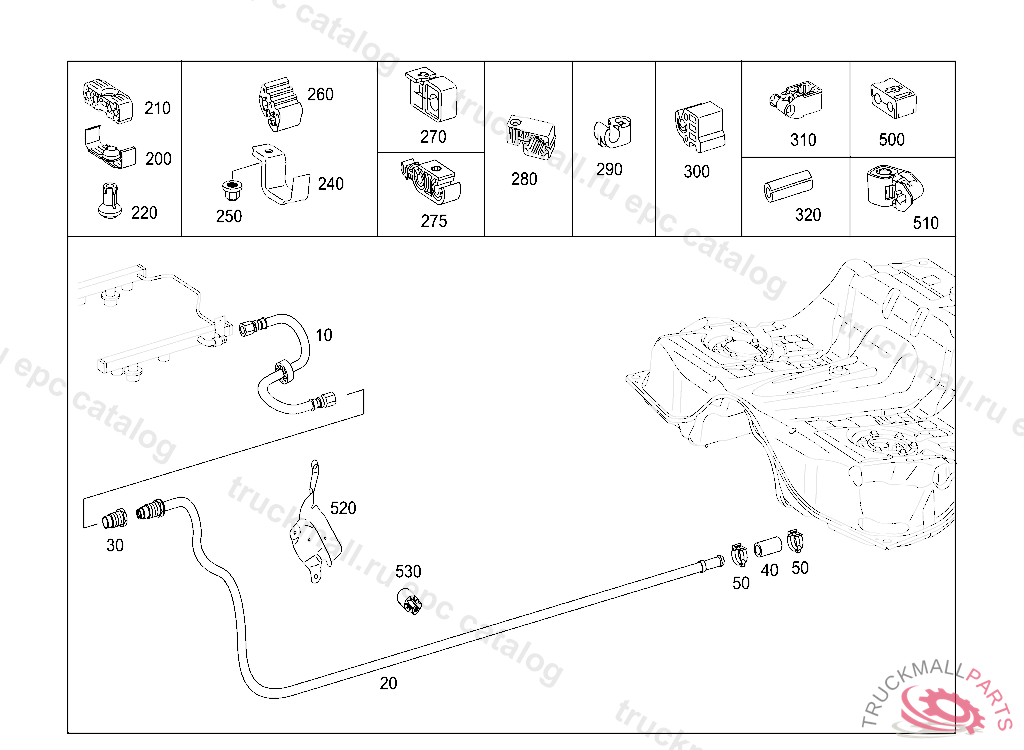

10
FUEL HOSE FROM DELIVERY LINE TO FUEL DISTRIBUTOR
10
FUEL HOSE FROM DELIVERY LINE TO FUEL DISTRIBUTOR
20
FUEL LINE FEED
30
UNION SCREW ,B 688751
40
HOSE FROM TANK TO FEED LINE
50
HOSE CLAMP HOSE ATTACHMENT
200
CLAMP FUEL LINES TO MAIN FLOOR
210
RETAINING PART FUEL LINES
220
CLAMPING ELEMENT FLOOR BELOW REAR SEAT
240
FASTENING CLAMP FUEL LINE TO SIDE MEMBER
250
NUT COVERING TO CAB FIRE WALL
260
SPACER FUEL LINE TO SIDE MEMBER
270
LINE HOLDER FUEL LINE MOUNTING
275
CLAMP BRAKE LINE MOUNTING TO FLOOR AT REAR
280
BRACKET ATTACHMENT OF VENT LINE
290
LINE HOLDER5 MM
300
CLAMP FUEL LINE TO SIDE MEMBER,B 926099
310
LINE HOLDER VENT LINE MOUNTING TO RIGHT REAR WHEELHOUSE, A 02430720090731
320
HOSE INSULATING PLASTIC TUBE PURGE LINE
500
LINE HOLDER FUEL LINE
510
LINE HOLDER FUEL LINE MOUNTING
520
PROTECTIVE PLATE AT PARTITION PANEL
