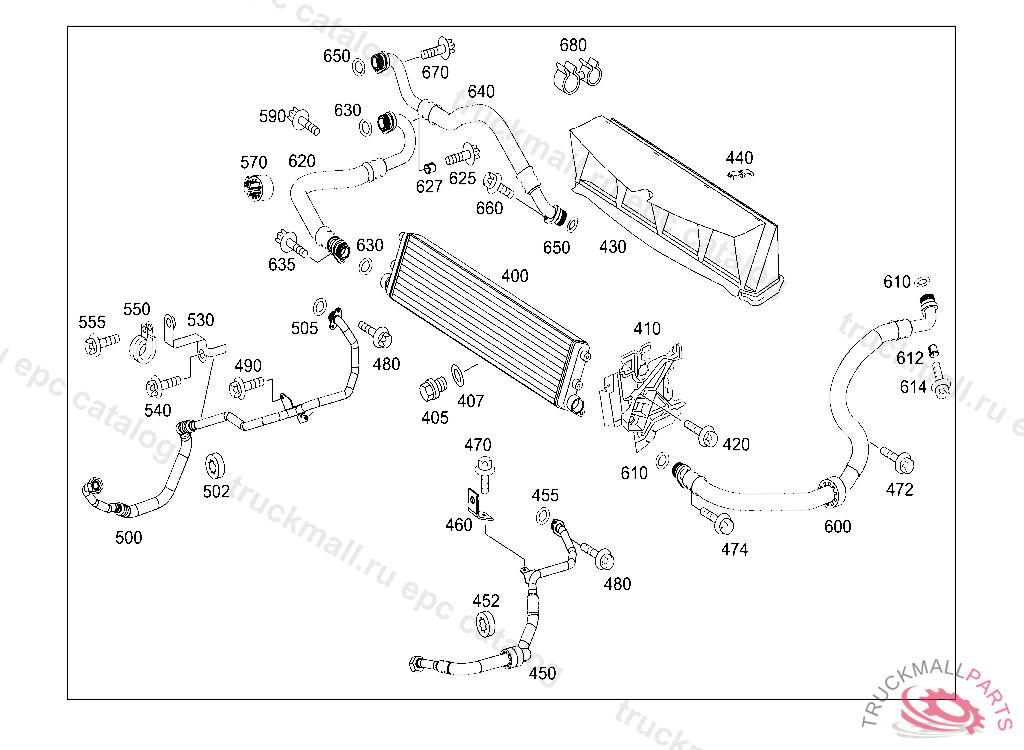

Поз.
Артикул
Описание
400
RADIATOR
405
SCREW PLUG
407
SEAL RING
410
BRACKET OIL COOLER TO WATER COOLER, RIGHT, A 02654120100930801
410
BRACKET OIL COOLER TO WATER COOLER, LEFT, A 02654120100930801
420
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
430
AIR BAFFLE TO OIL COOLER, A 02654120100930801
440
MOUNTING BOW AIR DEFLECTOR AT TOP
472
HEXALOBULAR BOLT. SCREW
474
HEXALOBULAR BOLT. SCREW
600
OIL LINE TO OIL COOLER LEFT, A 02654120100930801
610
SEAL RING OIL LINE TO OIL FILTER
620
OIL LINE TO OIL COOLER RIGHT, A 02654120100930801
625
HEXALOBULAR BOLT. SCREW
630
SEAL RING OIL LINE TO OIL FILTER
635
HEXALOBULAR BOLT. SCREW
640
OIL LINE TO HEAT EXCHANGER, A 00750020070330
640
OIL LINE TO HEAT EXCHANGER, A 00750120070330 A 02654120100930801
650
SEAL RING OIL LINE TO OIL FILTER
660
HEXALOBULAR BOLT. SCREW
670
HEXALOBULAR BOLT. SCREW
680
CLIP BETWEEN FILLING HOSE AND HOT WATER RETURN
