Поз.
Артикул
Описание

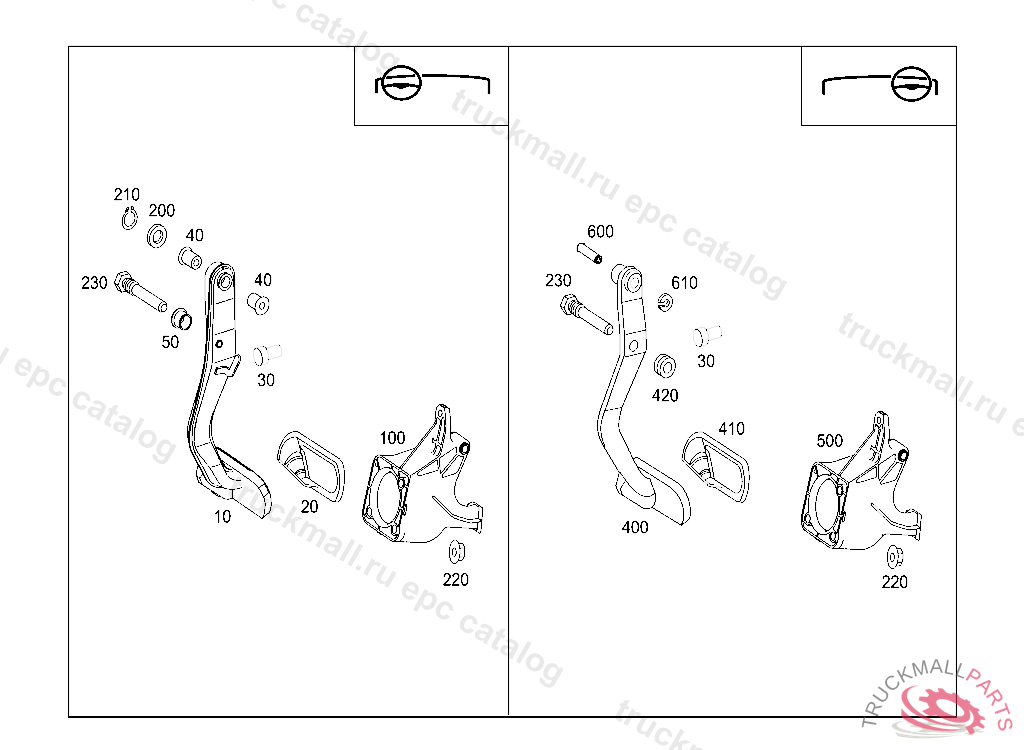

10
BRAKE PEDAL
20
PAD BRAKE PEDAL
30
BUFFER STOP AT BEARING BRACKET
40
BUSHING BRAKE PEDAL
50
BUSHING PEDAL ASSEMBLY
100
BEARING BRACKET PEDAL ASSEMBLY, A 08002320060630807
100
BEARING BRACKET PEDAL ASSEMBLY, A 03833220050630806
100
BEARING BRACKET PEDAL ASSEMBLY, A 08002320060630807
200
WASHER PEDALS TO PIVOT PINS
210
LOCK STOP TO BEARING BRACKET
220
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
230
PIN BRAKE UNIT TO PEDAL ASSEMBLY
230
PIN BRAKE PEDAL TO BRAKE BOOSTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 13282420071130, Replaced By: A2042920074
400
BRAKE PEDAL
410
PAD BRAKE PEDAL
420
CONNECTOR TO BRAKE PEDAL, A 02430720090731800
500
BEARING BRACKET PEDAL ASSEMBLY, A 03833220050630806
500
BEARING BRACKET PEDAL ASSEMBLY, A 08002320060630807
600
PIN BRAKE PEDAL
610
LOCK PLATE
