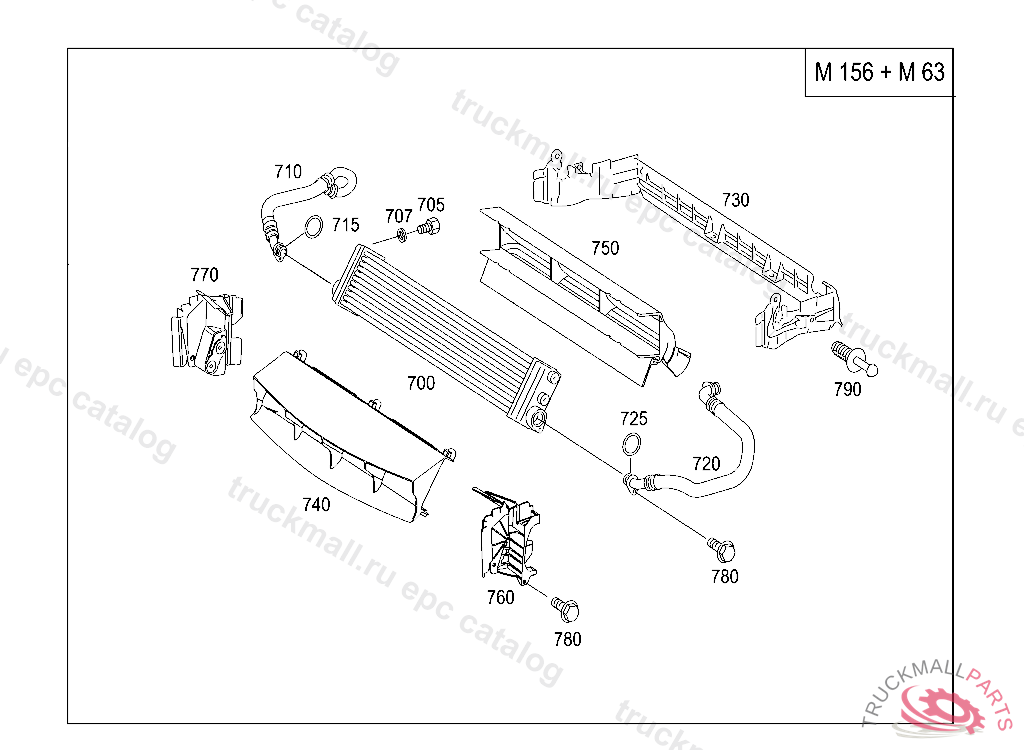

Поз.
Артикул
Описание
700
RADIATOR
705
SCREW PLUG
707
SEAL RING
710
LINE FRONT END COOLER TO OIL COOLER IN WHEELHOUSE
715
SEAL RING OIL LINE TO OIL FILTER
720
LINE FROM ENGINE JUNCTION TO OIL COOLER
725
SEAL RING OIL LINE TO OIL FILTER
730
AIR BAFFLE EXHAUST AIR, OIL COOLER
740
AIR BAFFLE SUPPLY AIR, OIL COOLER
750
AIR BAFFLE EXHAUST AIR, OIL COOLER
760
BRACKET TO OIL COOLER LEFT
770
BRACKET TO OIL COOLER RIGHT
780
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
790
RIVET SEALING LIP TO RADIATOR
