Mercedes A2202410134 - НАКЛАДКА

S 55 AMG KOMPRESSOR 220.074

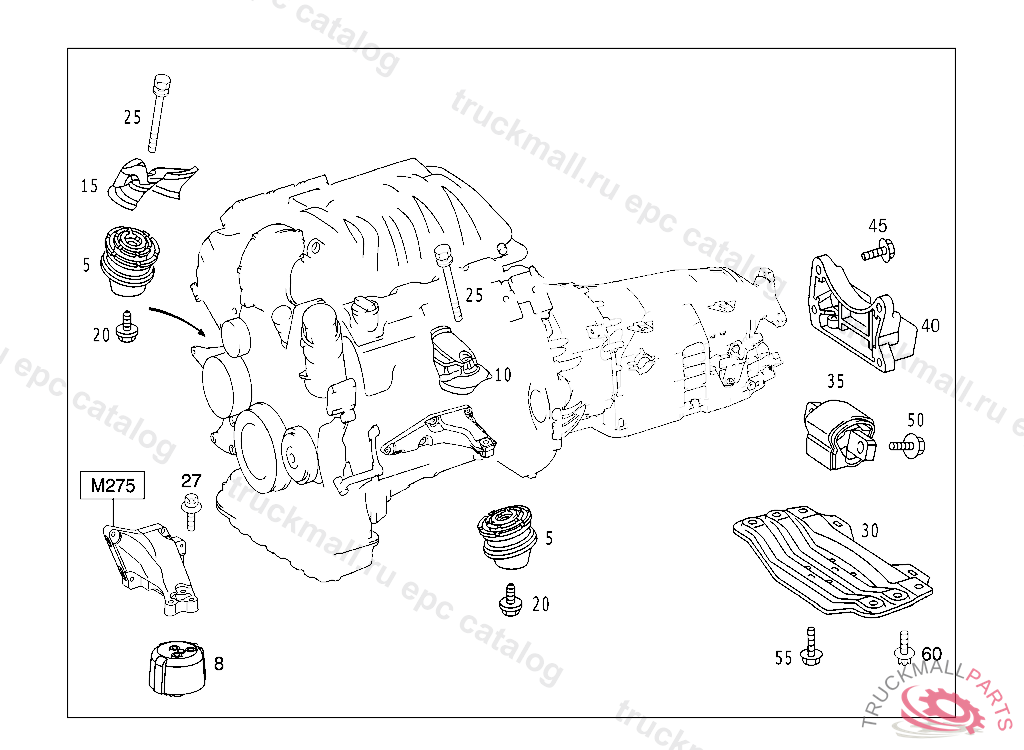

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
5
A2202402717
ENGINE MOUNT LEFT AND RIGHT
10
A2202410134
SCREENING PLATE LEFT
15
A2202400145
SCREENING PLATE RIGHT
20
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
25
N304017010051
SCREW
25
N914007010066
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
30
A2202420201
ENGINE SUPPORT REAR
35
A2202400218
RUBBER MOUNTING ,A 396165
40
A1402421340
BRACKET , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
40
A2112420340
BRACKET AT TRANSMISSION
45
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
45
A0049903412
BOLT BRACKET TO TRANSMISSION M6X30
50
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
55
N910105008004
SCREW BRACKET MOUNTING M6 X 20
60
A2109900312
BOLT ENGINE SUPPORT TO FRAME M10X25
