Mercedes A0002951173 - ЗАЖИМ

ML 270 CDI 163.113 FROM 09/2000

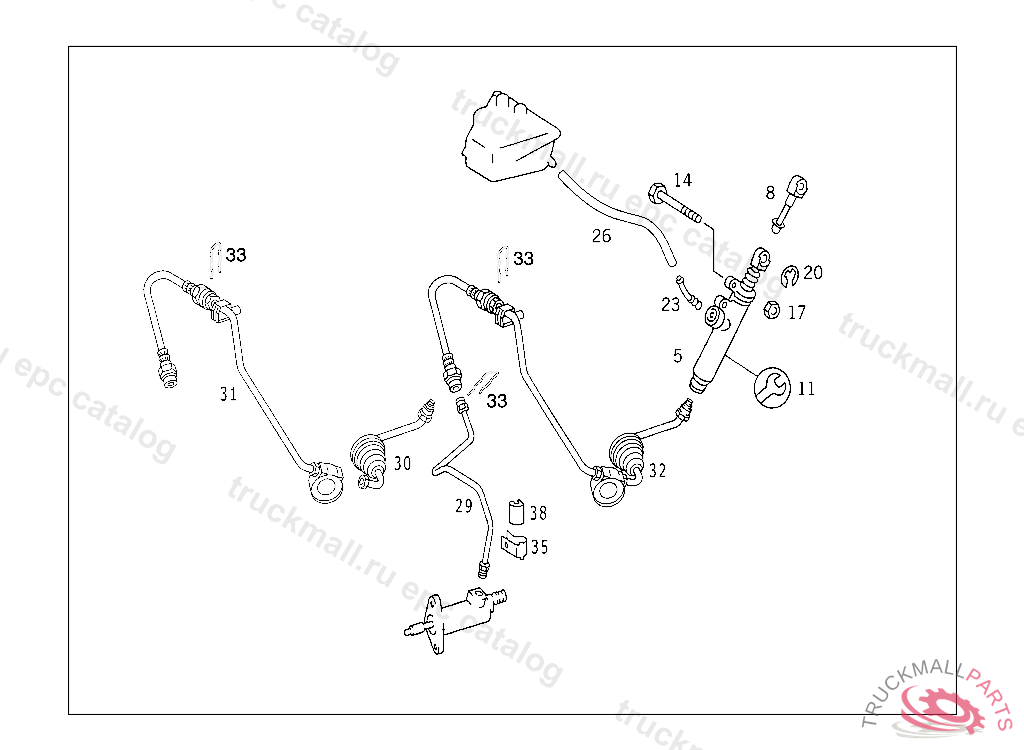

29 PEDAL ASSEMBLY - 030 PEDAL ASSEMBLY HYDRAULICS

Поз.
Артикул
Описание
5
A2022900112
MASTER CYLINDER. CYLINDER
8
A0002950633
RODTO 001 295 31 06, A 050827 F 003714
11
A0002900312
REPAIR KIT MASTER CYLINDER TO 001 295 31 06,68 06, A 050827 F 003714
14
N000933006151
SCREW DISTRIBUTOR TO CAB
14
N304017006027
SCREW APPARATUS PLATE M 6X45
17
N304032006004
NUT SPRING-LOADED PUSH ROD
20
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
23
A0002950036
INTERMEDIATE PIECE
26
A0099973882
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
29
A1632951513
PIPE CLUTCH LINE
30
A1632952013
PIPE AT FIRE WALL
31
A1632951613
PIPE AT FIRE WALL
32
A1632952113
PIPE AT FIRE WALL
33
A0002951173
LOCK CLUTCH HOSE
35
A1232950640
BRACKET PIPE LINE TO BELL HOUSING
38
A1232950450
BUSHING PIPE LINE TO BELL HOUSING
