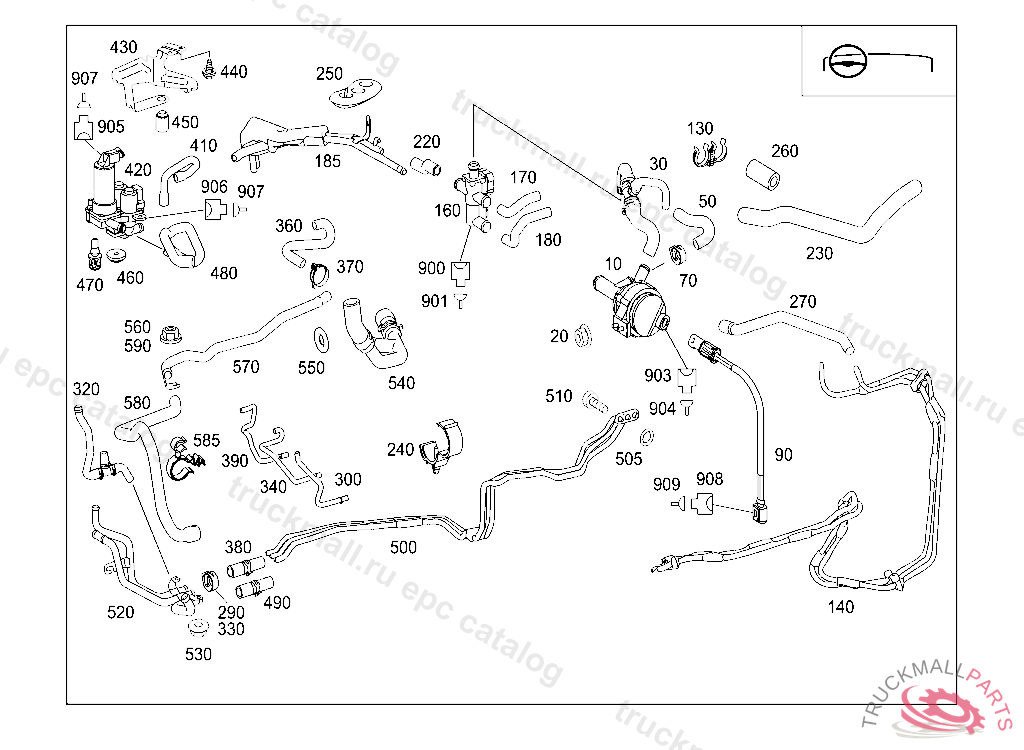

Поз.
Артикул
Описание
10
PUMP
20
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
30
HOSE PUMP TO VALVE WITH T-TYPE DISTRIBUTOR
50
HOSE FEED HOSE TO VALVE
70
CLAMP14 MM
70
CLAMP25 MM
70
HOSE CLAMP HOSE ATTACHMENT 27 MM
90
WIRING HARNESS TO PUMP
130
BRACKET HOSE
140
PIPELINE TO WASHER FLUID HEATER
160
VALVE CHANGE-OVER VALVE
170
HOSE FROM VALVE TO HEAT EXCHANGER
180
HOSE FROM VALVE TO HEAT EXCHANGER
185
PIPELINE INTERMEDIATE PIECE TO VALVE/HEAT EXCHANGER
220
HOSE PIPE LINE TO VALVE
240
BRACKET AT BRACKET
250
STOP PLUG BLIND PLUG
250
GROMMET PIPE LINE TO WHEELHOUSE
260
CAP FOR WASHER FLUID HEATER CONNECTION
270
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
270
HOSE TO WASHER FLUID HEATER
290
SPRING HOSE CLAMP HOSE FASTENING,230301
290
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
290
HOSE CLAMP LINE MOUNTING
290
CLAMP14 MM
290
CLAMP25 MM
300
HOSE FEED LINE TO PIPE IN REAR
320
HOSE INTERMEDIATE PIECE TO T-PIECE
330
HOSE CLAMP HOSE ATTACHMENT 27 MM
330
CLAMP25 MM
340
HOSE RETURN LINE, REAR CENTER
360
HOSE RETURN LINE, REAR CENTER
370
CLAMP. LOOM TIE
380
HOSE RETURN LINE, REAR
390
HOSE RETURN LINE, EXTERIOR REAR
410
HOSE RETURN LINE, EXTERIOR REAR
420
VALVE (WATER VALVE), ELECTROMAGNETIC WITH RECIRCULATION PUMP, BACK
430
BRACKET TIMING VALVE
440
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
450
SUPPORT BUFFER AT BRACKET
460
RUBBER BUFFER WATER VALVE TO BRACKET
470
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
480
HOSE REAR RETURN LINE, 3/2 DIRECTIONAL CONTROL VALVE
480
HOSE REAR RETURN LINE, 3/2 DIRECTIONAL CONTROL VALVE
490
HOSE NEGATIVE CASTER REAR
500
PIPELINE
505
O-RING REAR AIR CONDITIONING PIPE SYSTEM 12.5X2.62
505
O-RING REAR AIR CONDITIONING PIPE SYSTEM 15.5X2.62
510
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
520
PIPELINE TO REAR AIR CONDITIONING PIPE SYSTEM
530
HEX NUT GUIDE AT REAR FENDER
540
PIPELINE STATIONARY HEATER SUPPLY
550
GROMMET RETURN LINE
560
NUT COVERING TO CAB FIRE WALL
570
PIPELINE RETURN
570
PIPELINE RETURN, Replaced By: A2218305715
580
HOSE ASSEMBLY , A 30200020090930800
580
HOSE ASSEMBLY RETURN, A 30200020090930800
580
HOSE RETURN LINE INTERMEDIATE PIECE TO ENGINE, A 36930420100930801
590
NUT COVERING TO CAB FIRE WALL
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
903
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
904
CONTACT SPRING. PLUG SOCKET0,5-1,0
904
GASKET
905
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
906
PIN BUSHING HOUSING LAMP UNIT, FRONT RIGHT (BLACK) 3-PIN,SLK2.8,E2
907
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
907
CONTACT SPRING. PLUG SOCKET0,5-1,0
908
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
909
SEAL. GASKET YELLOW,V 215932
909
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
