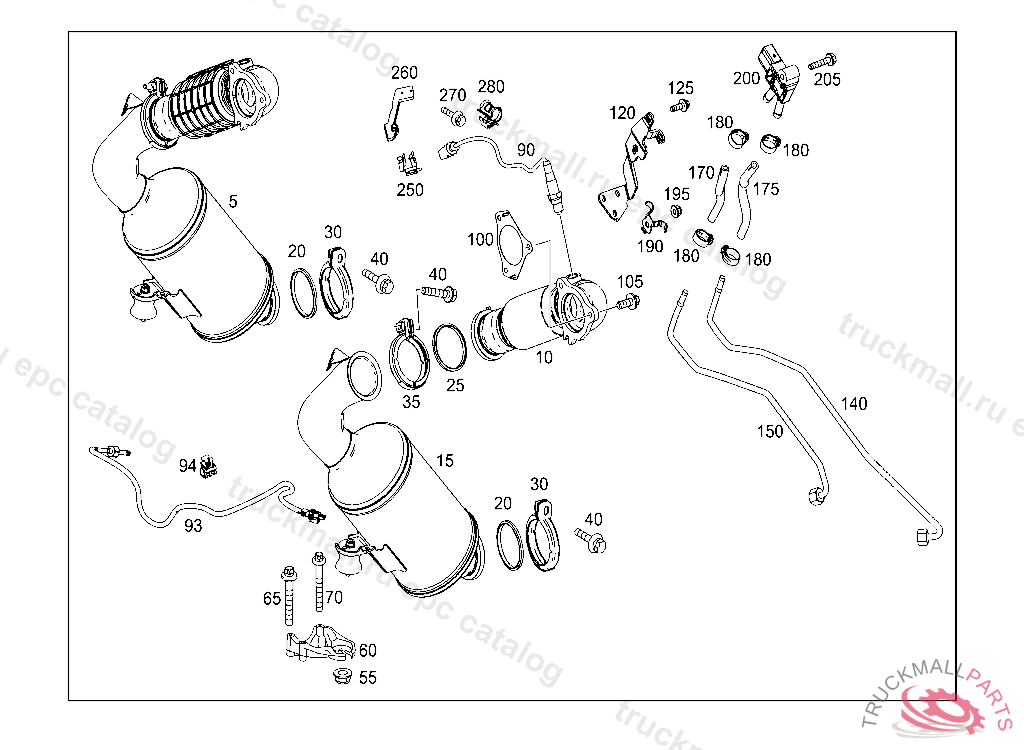

Поз.
Артикул
Описание
5
EXHAUST GAS LINE FRONT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
EXHAUST GAS LINE FRONT
10
EXHAUST PIPE FRONT
15
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
SEAL RING UPSTREAM OF PARTICULATE FILTER
25
SEAL RING UPSTREAM OF PARTICULATE FILTER
30
CLAMP EXHAUST LINE TO EXHAUST PIPE, FRONT
35
CLAMP EXHAUST LINE TO EXHAUST PIPE, FRONT
40
HEXALOBULAR BOLTM8X45, Replaced By: A3529904601
55
NUT HORN TO BRACKET M8
60
BRACKET TO PARTICULATE FILTER
65
HEXALOBULAR BOLT BRACKET TO TORSION BAR M8X55
70
HEXALOBULAR BOLT BRACKET TO TORSION BAR M10X80
90
OXYGEN SENSOR CATALYST,FRONT, A 09458520081001809
93
TEMPERATURE SENSOR UPSTREAM CATALYTIC CONVERTER
93
TEMPERATURE SENSOR IN FRONT OF CATALYSR,LEFT, Replaced By: A0009057401
93
TEMPERATURE SENSOR UPSTREAM OF DIESEL PARTICULATE FILTER
93
TEMPERATURE SENSOR UPSTREAM CATALYTIC CONVERTER
94
CLIP OXYGEN SENSOR
100
FLANGE GASKET FRONT
105
BOLT CATALYST TO BRACKET M8X20
120
BRACKET TO THREE-WAY CATALYTIC CONVERTER
125
HEXALOBULAR BOLT RIGHT BRACKET TO CYLINDER HEAD COVER M6X18
140
PRESSURE LINE
150
PRESSURE LINE
170
EXHAUST GAS HOSE TO PRESSURE SENSOR
175
EXHAUST GAS HOSE TO PRESSURE SENSOR
180
LOOM TIE13,5 X 6 MM
190
BRACKET FASTENING, EXHAUST HOSES
195
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
200
PRESSURE SENSOR AT SPLASH WALL
205
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
250
CLIP OXYGEN SENSOR LEAD MOUNTING
260
CABLE BRACKET OXYGEN SENSOR CABLE
270
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
280
CLIP
