Mercedes A2222414034 - Экран

S 63 AMG 222.177

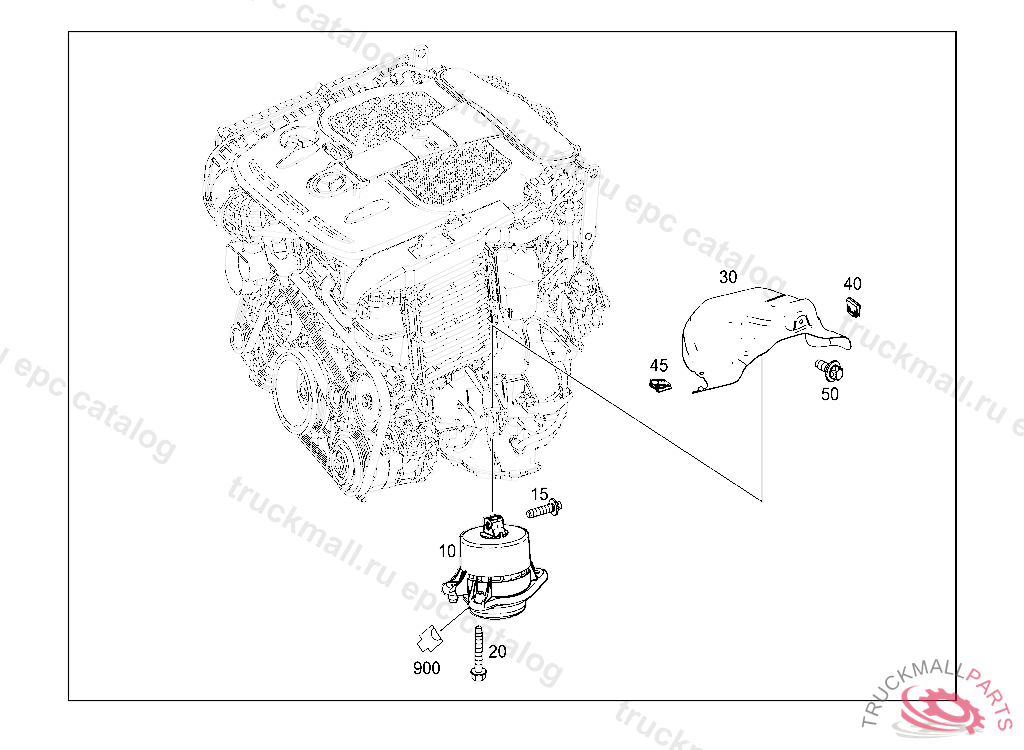

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
10
A2222404117
ENGINE SUPPORT FRONT LEFT
10
A2222404217
ENGINE SUPPORT FRONT RIGHT
15
A0029905003
SCREW W RND. HEXAL. HEAD ENGINE MOUNTING TO ENGINE SUPPORT M12X1,5X50
20
N000000000270
HEXALOBULAR BOLTM8X45, Replaced By: A3529904601
30
A2222413734
SCREENING PLATE ENGINE FRONT LEFT MOUNTING
30
A2222414034
SCREENING PLATE ENGINE MOUNTING,RIGHT
40
A0029918970
MOUNTING CLAMP TO SHIELD
50
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
900
A0225451926
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
