Поз.
Артикул
Описание

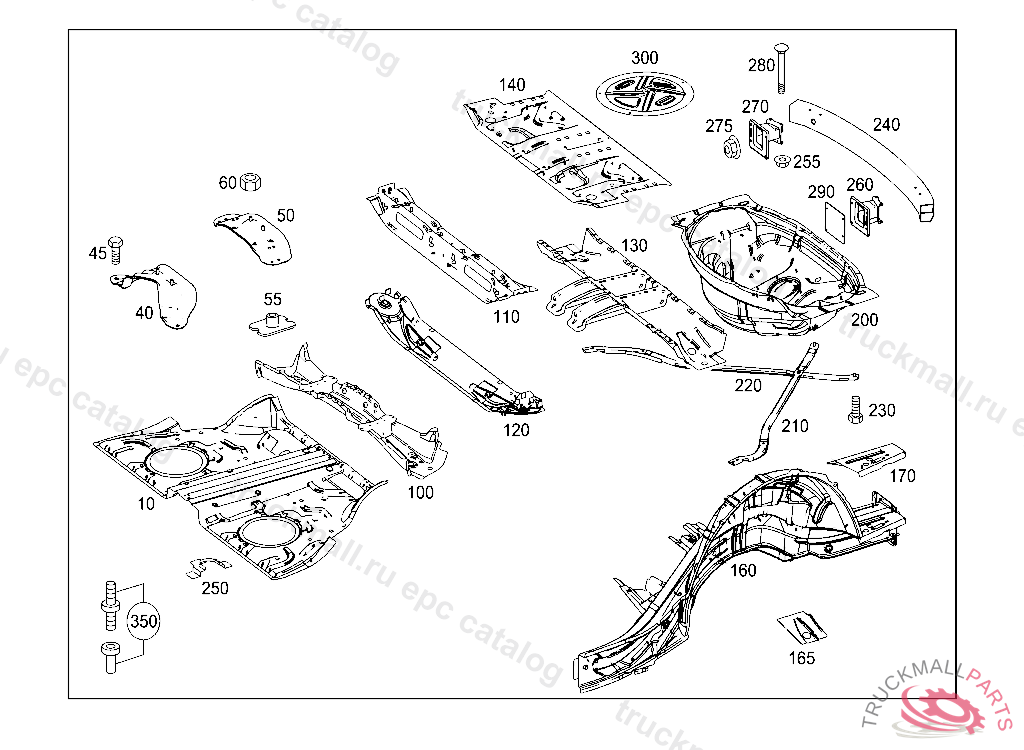

10
BOTTOM REAR END
10
BOTTOM REAR END, Replaced By: A2516100355
40
MOUNTING PLATE FRONT
45
SCREW CROSS MEMBER TO FIRE WALL M8X24
50
MOUNTING PLATE REAR
55
THREADED CHUCK SAFETY BELT MOUNTING
60
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
100
CROSS MEMBER REAR END
110
CROSS MEMBER REAR END
120
CROSS MEMBER REAR END
130
CROSS MEMBER REAR END
140
BOTTOM
160
WHEELHOUSE LEFT, A 09007320080709809
160
SUBSTRUCTURE LEFT, A 06859520070928808
160
SUBSTRUCTURE RIGHT, A 06859520070928808
160
WHEELHOUSE RIGHT, A 09007320080709809
165
REINFORCEMENT LEFT WHEELHOUSE
165
REINFORCEMENT RIGHT WHEELHOUSE
170
BOTTOM REAR END,LEFT
170
FLOOR PANEL REAR RIGHT
200
SPARE WHEEL WELL
200
SPARE WHEEL WELL
210
SUPPORT TO SPARE WHEEL WELL, LEFT
220
SUPPORT TO SPARE WHEEL WELL, RIGHT
230
SCREW. HEXAGON HEAD BOLTM10X25
230
HEXALOBULAR BOLT ACTUATOR TO REAR AXLE M8X22
240
SUPPORT REAR END
250
CONSOLE
255
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
260
CONSOLE TO LEFT CROSSMEMBER
270
CONSOLE TO CROSSMEMBER, RIGHT
275
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
280
SCREW FRONT MODULE M10X120
290
SEAL CROSS MEMBER
300
COVER PLATE ACCESS COVER, TANK
300
COVER PLATE SERVICE LID, A 11994820100930801
350
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
