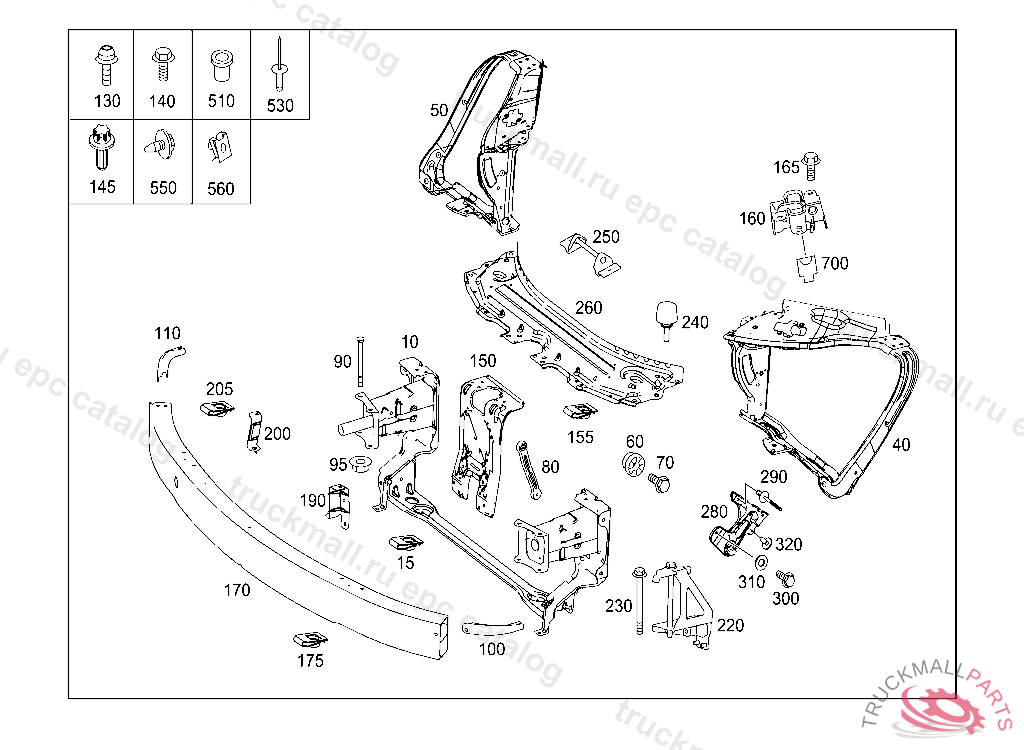

Поз.
Артикул
Описание
10
SIDE MEMBER RADIATOR MOUNT
15
NUT RETAINER
40
FRAME FOR LIGHT LEFT, A 10483520090930800
40
SHELL LEFT, A 11496520100722801
50
SHELL RIGHT, A 11496520100722801
50
FRAME FOR LIGHT RIGHT, A 10483520090930800
60
GUIDE RIGHT
70
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
80
BRACKET RADIATOR
90
SCREW FRONT MODULE M10X120
95
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
100
BRACKET LEFT
110
BRACKET RIGHT
130
BOLT FRONT MODULE TO LONGITUDINAL MEMBER BOTTOM M10X22.5
140
SCREW PUMP TO BRACKET
145
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
150
CONSOLE FRONT CENTRAL, A 11496520100722801
150
CONSOLE FRONT CENTRAL, A 10483520090930800
150
CONSOLE FRONT CENTRAL, A 10483520090930800, Replaced By: A2516200000
155
NUT RETAINER
160
ENGINE HOOD CATCH ON FRONT CENTRAL STIFFENING
165
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
170
CROSS MEMBER FRONT, A 10483520090930800
170
CROSS MEMBER FRONT, A 11496520100722801
175
NUT RETAINER
190
BRACKET LEFT, A 10483520090930800
190
BRACKET LEFT, A 11496520100722801
200
BRACKET RIGHT, A 11496520100722801
200
BRACKET RIGHT, A 10483520090930800
205
NUT RETAINER
240
BUFFER ENGINE HOOD REST TO STIFFENING
250
SAFETY HOOK ON FRONT CENTRAL STIFFENING
260
SUPPORT FRONT
280
BRACKET RIGHT, A 10483520090930800
280
BRACKET LEFT, A 10483520090930800
290
BLIND RIVET WITH PAN HEAD
300
SCREW LICENSE PLATE TO BRACKET
310
WASHER COMPRESSED AIR LINE TO BRACKET
320
BOLT THREADED CONNECTION, NOZZLE TUBE TO INSTRUMENT PANEL 4X12
510
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
510
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
510
RIVET NUT. RIVETED NUT GRIP RAIL MOUNTING
510
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
530
BLIND RIVET BRACKET
550
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
550
BOLT LOWER SUPPORT M6X19
560
LOCK NUT. LOCK PANELLING TO BUMPER
700
PLUG HOUSING ENGINE HOOD CONTACT FOR ANTI-THEFT ALARM SYSTEM 2-PIN MQS,S62
