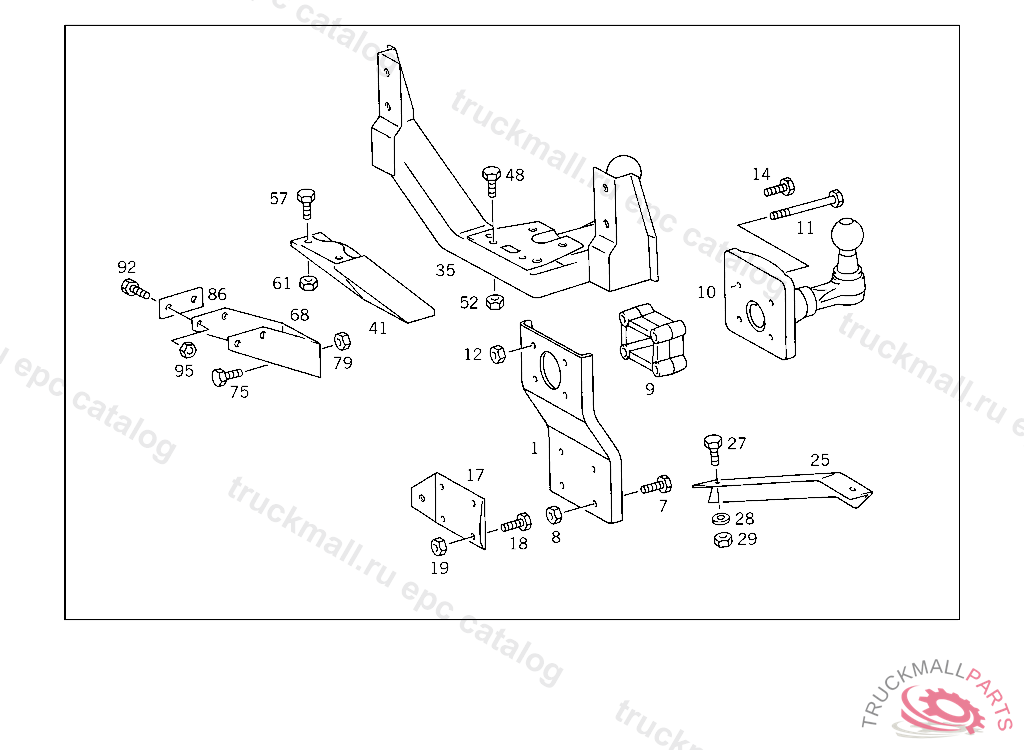

Поз.
Артикул
Описание
1
BRACKET TRAILER COUPLING
7
SCREW END PIECE TO EXHAUST PIPE M 10X25
8
NUT AIR CLEANER ELEMENT
9
SHIM TRAILER COUPLING
10
TRAILER COUPLINGORIS
10
TRAILER COUPLING , Replaced By: A0013154899
11
SCREW , Replaced By: N304017010050
11
SCREW , Replaced By: N304017010055
12
NUT STRAP TO BRACKET
12
NUT , Replaced By: N910113010000
14
SCREW END PIECE TO EXHAUST PIPE M 10X25
17
BRACKET STEP PLATE
18
SCREW , Replaced By: N304017010002
18
SCREW BRACKET TO SIDE MEMBER
19
NUT AIR CLEANER ELEMENT
25
ANGLE RIGHT
25
ANGLE LEFT
27
SCREW END PIECE TO EXHAUST PIPE M 10X25
28
WASHER BRACKET TO COVERING
28
WASHER , Replaced By: N009021010209
29
NUT AIR CLEANER ELEMENT
35
TRAILER COUPLING
41
STRUT TRAILER COUPLING
48
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
52
NUT BRACKET TO SIDE MEMBER
52
NUT , Replaced By: N910113014001
57
SCREW , Replaced By: N308676012012
57
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
61
NUT SUPPORT TO SIDE MEMBER
68
BRACKET TRAILER COUPLING TO REAR CROSS MEMBER
75
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
75
SCREW , Replaced By: N308676014003
79
NUT , Replaced By: N910113014000
79
NUT STEERING SUPPORT TO FRAME
86
SHIM BRACKET TO SIDE MEMBER
92
SCREW END PIECE TO EXHAUST PIPE M 10X25
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
