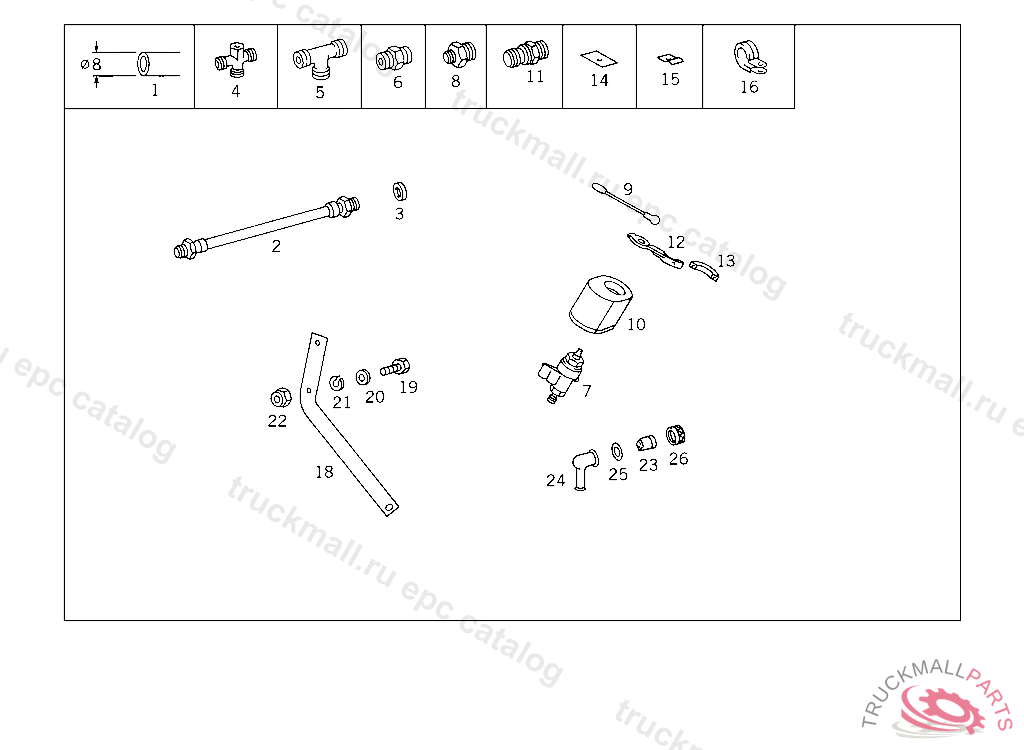

Поз.
Артикул
Описание
1
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
2
HOSE COMPRESSED AIR
3
SEAL RING LINE CONNECTION
4
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
5
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
6
FITTING (PARTS KIT),LINE RUPTURE
6
FITTING , Replaced By: A0029905971
7
VALVE , 601490
7
VALVE , 601489, Replaced By: A0009974636, +001A0009972037
8
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
9
LEVER THREE-WAY VALVE
9
LEVER THREE-WAY VALVE, FROM CHASSIS 003204-003419
9
LEVER THREE-WAY VALVE, UP TO CHASSIS 003203
10
MOLDED PIECE
11
FITTING LINE CONNECTION, Replaced By: N000000006446
12
BRACKET THREE-WAY VALVE
13
CLAMP BRACKET TO STEERING COLUMN
14
BRACKET
14
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
14
BRACKET FUEL LINES
15
FIXING CLAMP. CLAMP ,845437
16
CLAMP LINE MOUNTING
18
BRACKET SHIFTING CYLINDER
19
SCREW COVER PLATE TO BRACKET
19
SCREW , Replaced By: N304017005011
20
WASHER REDUCTION GEARING TO BRACKET
21
LOCK WASHER LINE MOUNTING
22
NUT TACHOGRAPH TO BRACKET
23
PLUG SOCKET PRESSURE SWITCH SCREW-CONNECTION TO M 24X1
23
PLUG
24
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
25
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
26
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
999
VALVE PART
999
SEAL RING VALVE TAPPET, USED WITH HYDRAULIC BRAKE UP TO CHASSIS 209475 EXCEPT FOR 209273,209446,209461,209465,209471,209474.
999
SEAL RING LINE CONNECTION
