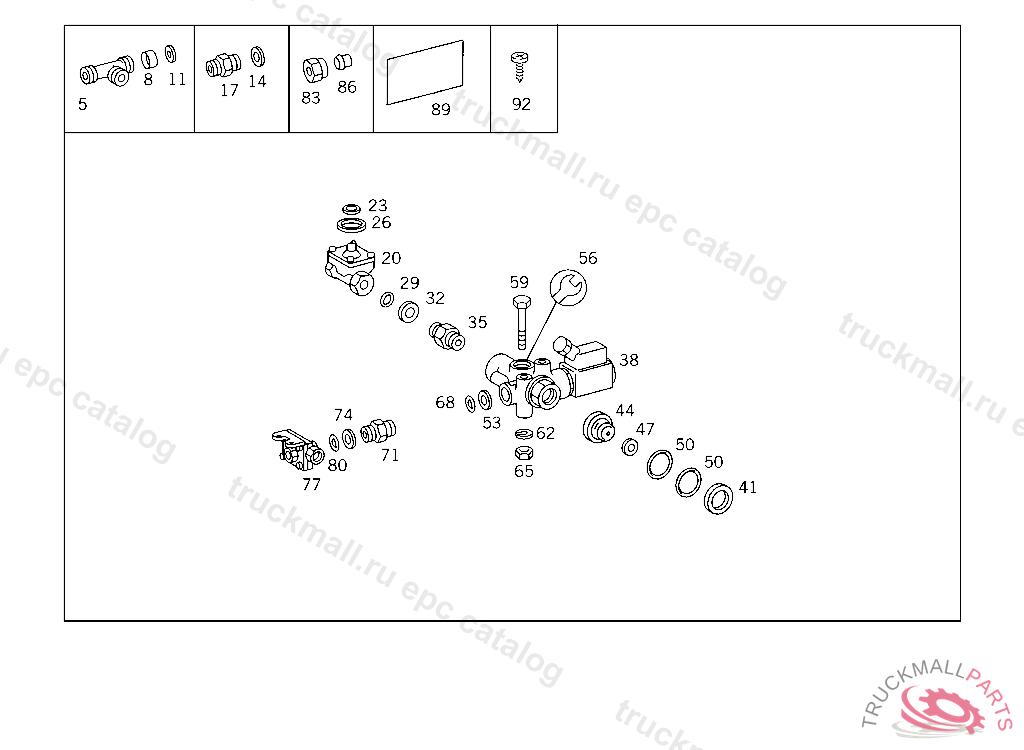

Поз.
Артикул
Описание
5
T-FITTING BETWEEN THE LINES
8
THRUST RING BUTT SCREW CONNECTION
11
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
11
SEAL RING , Replaced By: N007603012121
14
SEAL RING LINE CONNECTION
17
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
20
VALVE (THROTTLE CHECK VALVE)
20
VALVE , Replaced By: A0007631152
23
SEAL RING
26
SEAL RING
29
O-RING CHECK VALVE TO AIR RESERVOIR
29
SEAL RING , Replaced By: A0009870446
29
SEAL RING
32
SEAL RING LINE CONNECTION
35
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
38
VALVE (THREE-WAY SOLENOID VALVE)
41
SEAL RING
44
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
47
SEAL RING BRAKE VALVE
50
SEAL RING
53
SEAL RING , ONLY APPLICABLE TO UNIT 000 431 54 14
56
REPAIR KIT
59
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
59
SCREW , Replaced By: N304014008001
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
NUT , Replaced By: N304032008006
68
O-RING CHECK VALVE TO AIR RESERVOIR
68
SEAL RING , Replaced By: A0009870446
68
SEAL RING
71
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
74
SEAL RING LINE CONNECTION
77
VALVE
77
VALVE , Replaced By: A0004299244
80
SEALING CORD BRAKE POWER REGULATOR
83
UNION NUT BUTT SCREW CONNECTION
86
GLAND LINE CONNECTION
89
ADHESIVE FOIL GUIDE SIGN
92
SHEET METAL SCREW
999
VALVE
999
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
999
VALVETO 000 429 46 44
999
MAGNET
999
999
REPAIR KITTO 000 429 40 44
999
