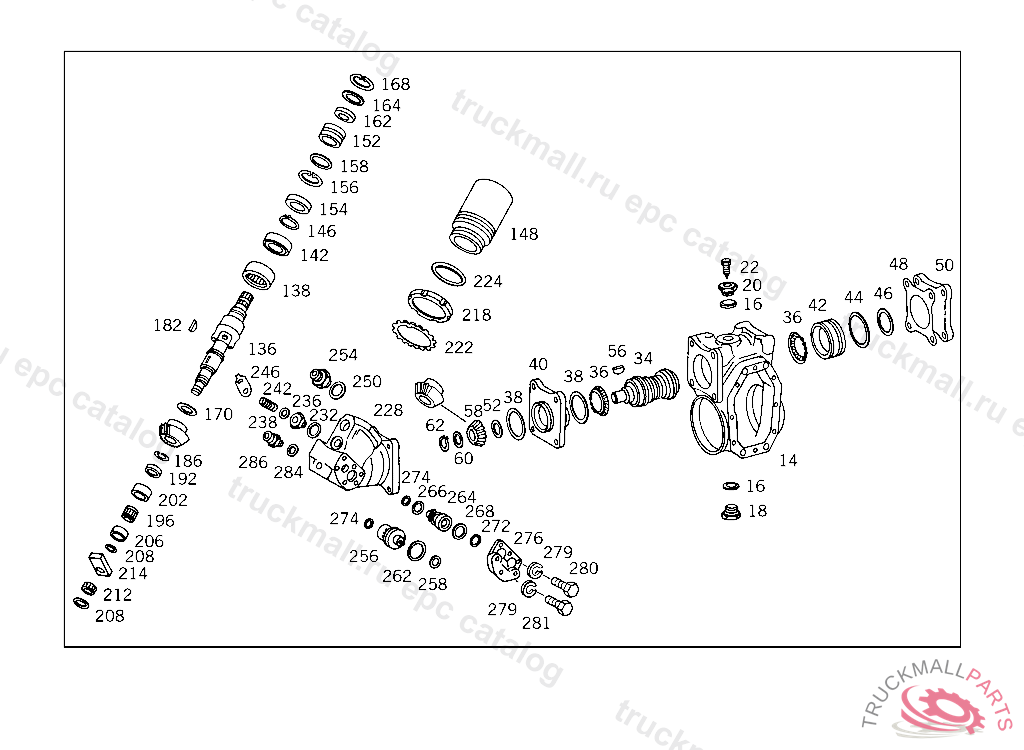

Поз.
Артикул
Описание
14
BOX
16
SEAL RING LINE TO OIL PUMP
18
SCREW PLUG
20
SCREW PLUG
22
SCREW , Replaced By: A3454667091
34
STEERING WORM
36
CAGE
38
SEALING CORDTO 000 429 27 95, WABCO
40
OUTER RACE
42
OUTER RACE
44
SEALING CORD
46
SEAL RING INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
48
SPACER WASHER AS REQUIRED 0.30 MM
48
SPACER WASHER AS REQUIRED 0.15 MM
48
SPACER WASHER AS REQUIRED 0.12 MM
48
SPACER WASHER AS REQUIRED 0.10 MM
50
COVER
52
SPACER WASHER2.00 MM
52
SPACER WASHER AS REQUIRED 1.9 MM
52
SPACER WASHER AS REQUIRED 1.8 MM
52
SPACER WASHER AS REQUIRED 1.7 MM
52
SPACER WASHER AS REQUIRED 1.6 MM
52
SPACER WASHER AS REQUIRED 1.5 MM
52
SPACER WASHER AS REQUIRED 1.4 MM
52
SPACER WASHER AS REQUIRED 1.3 MM
52
SPACER WASHER AS REQUIRED 1.2 MM
52
SPACER WASHER AS REQUIRED 1.1 MM
52
SPACER WASHER AS REQUIRED 1.0 MM
56
WOODRUFF KEY
58
WORM GEAR , FROM IDENT NO. 003048 EXCEPT FOR, 003051-003071,003074-003077,003096,003099,003102,003104,003105,003108,003109,003110,003112,003115, 003125,003145,003146.
60
SPACER WASHER2.00 MM
60
SPACER WASHER AS REQUIRED 1.9 MM
60
SPACER WASHER AS REQUIRED 1.8 MM
60
SPACER WASHER AS REQUIRED 1.7 MM
60
SPACER WASHER AS REQUIRED 1.6 MM
60
SPACER WASHER AS REQUIRED 1.5 MM
60
SPACER WASHER AS REQUIRED 1.4 MM
60
DISTANZRING. SPACER WASHER AS REQUIRED 1.3 MM
60
SPACER WASHER AS REQUIRED 1.2 MM
60
SPACER WASHER AS REQUIRED 1.1 MM
60
SPACER WASHER AS REQUIRED 1.0 MM
62
LOCK RING RELEASE SHAFT,BOTTOM
136
STEERING SHAFT , FROM IDENT NO. 003048 EXCEPT FOR, 003051-003071,003074-003077,003096,003099,003102,003104,003105,003108,003109,003110,003112,003115, 003125,003145,003146.
138
NEEDLE BEARING50X62X25 MM
142
GROOVED BALL BEARING
146
LOCK RING. RETAINING RING OIL PUMP TO TRANSMISSION CASE
148
FLANGE
152
LOCK RING
154
SEAL RING STEERING WORM SECTOR SHAFT SEALING, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
156
LOCK RING
158
SEAL RING INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
162
RING
164
SPACER WASHER AS REQUIRED 1.40 MM
164
SPACER WASHER AS REQUIRED 1.30 MM
164
SPACER WASHER AS REQUIRED 1.20 MM
164
SPACER WASHER AS REQUIRED 1.10 MM
164
SPACER WASHER AS REQUIRED 1.00 MM
164
SPACER WASHER AS REQUIRED 0.90 MM
168
LOCK STEERING KNUCKLE,TOP AND BOTTOM
168
LOCK RING
170
SPACER WASHER AS REQUIRED 3.50 MM
170
SPACER WASHER AS REQUIRED 3.40 MM
170
SPACER WASHER AS REQUIRED 3.30 MM
170
SPACER WASHER AS REQUIRED 3.20 MM
170
SPACER WASHER AS REQUIRED 3.10 MM
170
SPACER WASHER AS REQUIRED 3.00 MM
170
SPACER WASHER AS REQUIRED 2.90 MM
170
SPACER WASHER AS REQUIRED 2.80 MM
170
SPACER WASHER AS REQUIRED 2.70 MM
170
SPACER WASHER AS REQUIRED 2.60 MM
170
SPACER WASHER AS REQUIRED 2.50 MM
182
WOODRUFF KEY
186
SNAP RING
192
SPACER WASHER AS REQUIRED 4.50 MM
192
SPACER WASHER AS REQUIRED 4.40 MM
192
SPACER WASHER AS REQUIRED 4.30 MM
192
SPACER WASHER AS REQUIRED 4.20 MM
192
SPACER WASHER AS REQUIRED 4.10 MM
192
SPACER WASHER AS REQUIRED 4.00 MM
192
SPACER WASHER AS REQUIRED 3.90 MM
192
SPACER WASHER AS REQUIRED 3.80 MM
192
SPACER WASHER AS REQUIRED 3.70 MM
192
SPACER WASHER AS REQUIRED 3.60 MM
192
SPACER WASHER AS REQUIRED 3.50 MM
196
NEEDLE BEARING
202
ROLLER
206
SPACER TUBE
208
SPACER WASHER AS REQUIRED 2.90 MM
208
SPACER WASHER FLANGE TO TRANSMISSION CASE COVER 71,5X0,15 MM
208
SPACER WASHER AS REQUIRED 2.70 MM
208
SPACER WASHER AS REQUIRED 2.60 MM
208
SPACER WASHER AS REQUIRED 2.50 MM
208
SPACER WASHER AS REQUIRED 3.22 MM
208
SPACER WASHER AS REQUIRED 2.30 MM
212
NEEDLE BEARING
214
LEVER
218
NUT
222
LOCK
224
SEALING CORD
228
BOX
232
SEALING CORD
236
THREADED CHUCK
238
SEALING CORD
242
SCREW
246
LOCK
250
SEAL RING LINE TO OIL PUMP
254
FITTING
256
VALVE
258
SEALING CORD
262
SEALING CORD CONNECTION TO TRUCK-TRACTOR BRAKE VALVE,4 270413
264
VALVE
266
SEALING CORD
268
SEALING CORD
272
SEALING CORD
274
SEALING CORD
276
COVER
279
SPRING WASHER , Replaced By: N000137008212
280
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
280
SCREW , Replaced By: N304017008027
281
SCREW BRACKET TO CROSS CONNECTION STRUT
281
SCREW , Replaced By: N304017008034
284
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
286
SCREW FITTING
999
FILTER , 001778
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300785
999
BOOTLEMFOERDER
999
999
CLAMP CLAMP, TWO-HOLE
999
999
999
999
999
999
999
999
999
999
999
999
BOOT DRAG LINK
999
999
999
999
999
999
TUBE STEERING SHOCK ABSORBER, 000490
999
999
BALL JOINT STEERING SHOCK ABSORBER, 000490
999
BALL JOINT STEERING SHOCK ABSORBER, 000491-002532
999
999
999
999
999
DUST CAP REAR, FROM IDENT NO. 796991 EXCEPTO 801111
999
999
999
999
999
999
999
999
999
BALL JOINT STEERING SHOCK ABSORBER, FROM IDENT NO. 002533-004753 EXCEPT FOR 004742,004744,004747,004749,004751,004752.
999
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
DUST CAP , FROM IDENT NO. 796991 EXCEPTO 801111
999
999
999
PLATE ,006548,001,002,006,008,009,015,041
999
999
999
999
999
999
999
999
999
999
999
999
999
999
999
SEALING CORD , Replaced By: A0119973645
999
999
999
999
SNAP RING REAR, FROM IDENT NO. 796991 EXCEPTO 801111
999
NUT DRAG LINK END M 24X1.5
999
HOSE , Replaced By: A0079973082
999
LOCK STOP TO BEARING BRACKET
999
CONTACT PLATE. PLATE ,009343, Replaced By: A0004640417, +001A3224600040, +001A3224640050, +001A3214640062, +001A3204640182
999
KLEMMSCHRAUBE FUR ANSCHLUSSKLEMME BIS FAHRGESTELL-NR. 00054/53
999
FIRMENZEICHEN AM LENKRAD. BADGE
999
999
999
999
999
999
HYDRAULIC PUMP , 001778, Replaced By: A3174600780
